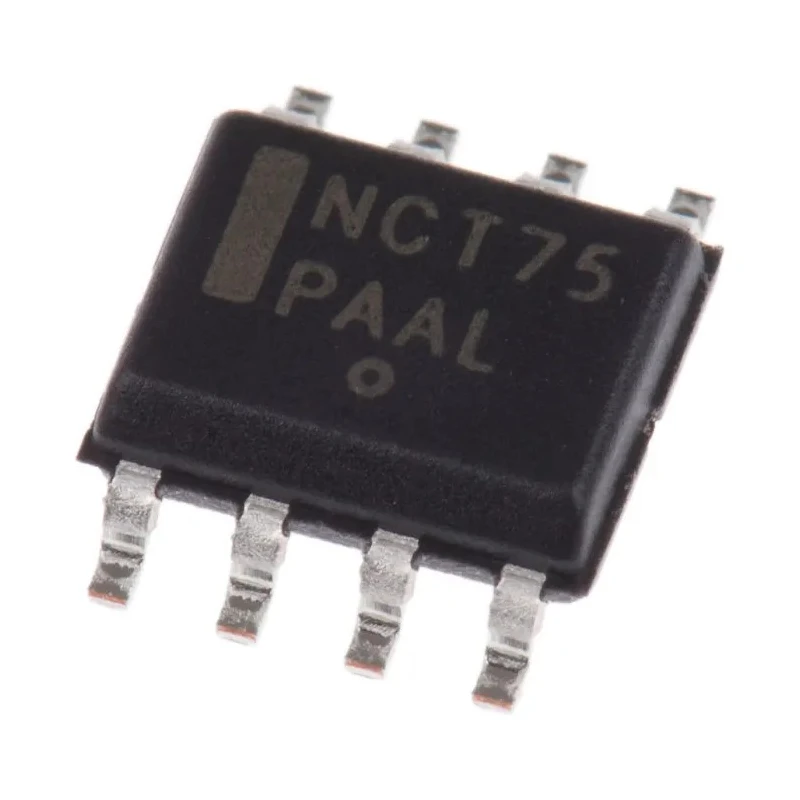

onsemi Digital Output Temperature Sensor Surface Mount Serial-I2C SMBus ±1°C 8-Pin SOIC NCT75DR2G
Specifications
| Country of Origin | India |
|---|---|
| Accuracy | ±1°C |
| Brand | onsemi |
| Height | 1.5mm |
| Length | 5mm |
| Model | NCT75DR2G |
| Width | 4mm |
| Mount Type | Surface |
| Output type | Digital |
| Maximum Operating Temperature | 125°C |
| Package Type | SOIC |
| Sub Type | Temperature Sensor |
| Minimum Operating Temperature | -55°C |
| Interface Type | Serial-I2C, SMBus |
| Pin Count | 8 |
| Automotive Standard | AEC-Q100 |
| Maximum Supply Voltage | 5.5V |
| Minimum Supply Voltage | 3V |
Key Features
- The sensor operates from 3V to 5.5V supply voltage range.
- It features an 8-pin SOIC package, suitable for compact electronic designs.
- Designed to operate within -55°C to +125°C temperature range.
- Includes shutdown mode and overtemperature indicator functionality.
- Meets the automotive AEC-Q100 standard ensuring reliability.
- Ideal for thermostat controls, thermal management, battery management, and electronic test equipment.
- Provides digital temperature measurement via an on-chip ADC.
- Compact dimensions of 5mm length, 4mm width, and 1.5mm height.
Product Description
onsemi NCT75DR2G is a digital output temperature sensor designed for surface mount applications using an 8-pin SOIC package. It interfaces via serial-I2C and SMBus protocols, providing precise temperature measurements with ±1°C accuracy. Operating over a wide voltage range of 3V to 5.5V and temperature range from -55°C to +125°C, this sensor is suitable for a variety of industrial and commercial applications.
The NCT75DR2G features an on-chip analog-to-digital converter to convert temperature data to digital form efficiently. It includes a low power shutdown mode and an overtemperature indicator for enhanced system protection. Compliant with the automotive AEC-Q100 standard, it offers robust performance in demanding environments.
Applications for this sensor include thermostat control, thermal management and protection systems, battery management in electronics, office electronics monitoring, and electronic test equipment instrumentation. Its compact SOIC package with dimensions of 5mm by 4mm by 1.5mm allows easy integration into PCBs with limited space.
The sensor operates with a 2-wire serial interface. Designed to function efficiently within a wide temperature range. Equipped with safety shutdown and indication features. Supports digital output via standard industrial protocols.
Validated through automotive-level quality standards. Compact footprint suits various electronic designs. Suitable for industrial, laboratory, HVAC, and automotive applications. Designed to enhance thermal management and temperature monitoring accuracy.
The NCT75DR2G Temperature Sensor is an indispensable component in precise temperature measurement systems across industrial, laboratory, HVAC, manufacturing, and automotive fields. Its digital output and standard interface protocols enable seamless integration and reliable data acquisition for temperature-dependent control and monitoring tasks.
Explore more sensors and temperature measurement solutions in the Electronics & Electricals category on EnvMart.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
This model operates within a temperature range of -55°C to +125°C.
The sensor provides temperature measurements with an accuracy of ±1°C.
It provides a digital output via serial-I2C and SMBus interfaces.
The sensor operates over a supply voltage range of 3V to 5.5V.
It has compact dimensions of 5mm in length, 4mm in width, and 1.5mm in height.
This model is packaged in an 8-pin SOIC format, suitable for surface mount applications.
Yes, it includes a low power shutdown mode and an overtemperature indicator for enhanced system protection.
It meets the automotive AEC-Q100 standard, ensuring reliability in automotive applications.
This sensor is suitable for applications such as thermostat controls, thermal management, battery management, and electronic test equipment.
The sensor features an 8-pin configuration.
It is designed for surface mount installation.
The country of origin for this sensor is India.
