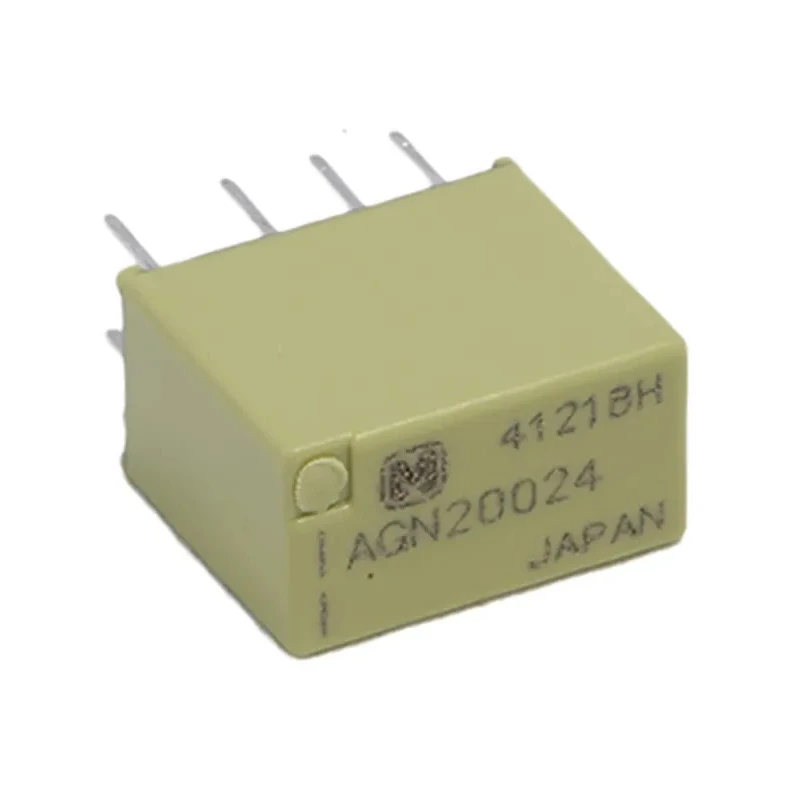

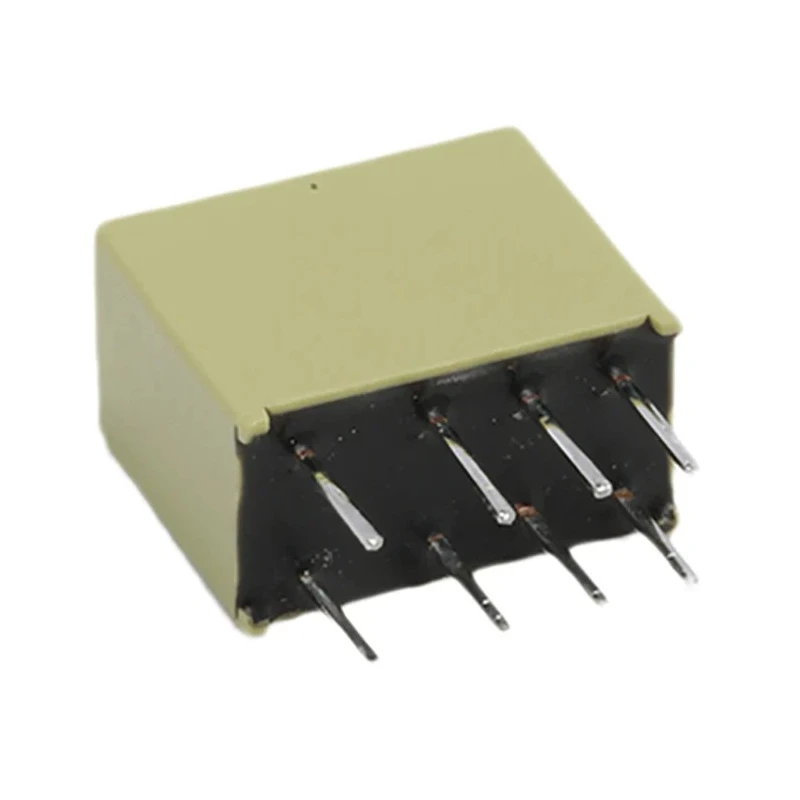

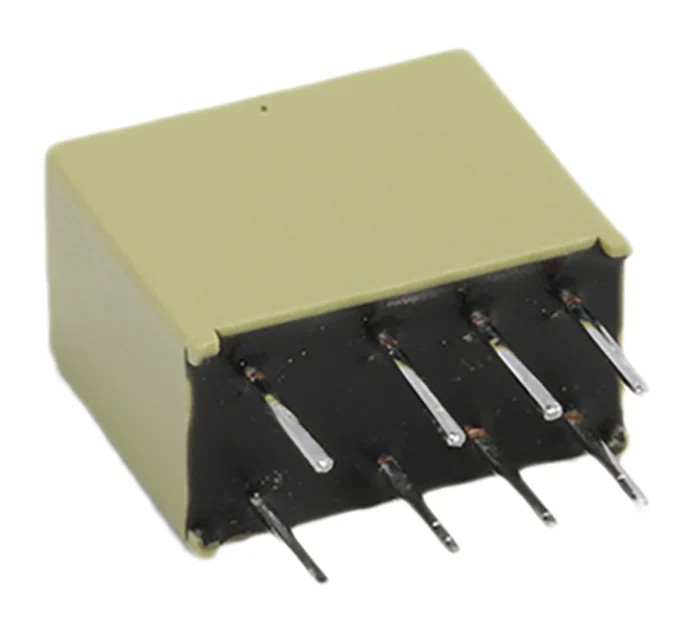

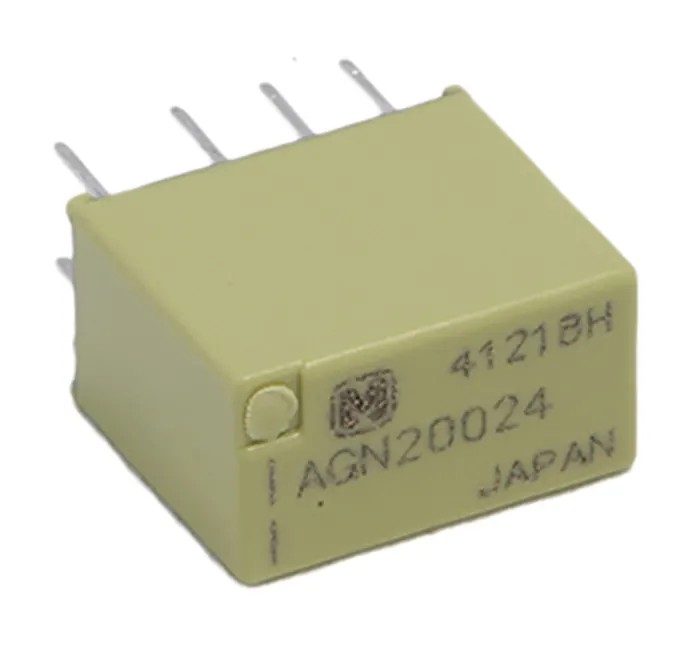

Panasonic PCB Signal Relay 24V DC Coil 1A DPDT AGN20024
Specifications
| Country of Origin | Japan |
|---|---|
| Brand | Panasonic |
| Height | 9mm |
| Length | 10.6mm |
| Model | AGN20024 |
| Width | 5.7mm |
| Mount Type | PCB |
| Contact Material | Gold Plated Silver Aluminium |
| Series | AGN |
| Maximum Operating Temperature | 85°C |
| Contact Configuration | DPDT |
| Minimum Operating Temperature | -40°C |
| Switching Current | 1A |
| Terminal type | PCB Terminal |
| Standards/Approvals | RoHS |
| Coil Resistance | 2500Ω |
| Coil Voltage | 24V dc |
| Switching DC Voltage | 110V dc |
| Switching AC Voltage | 125V ac |
| Coil Power | 230mW |
Key Features
- Compact slim body dimensions of 9 x 5.7 x 10.6 mm ensure space-saving PCB mounting.
- Twin crossbar contacts provide high contact reliability for signal switching.
- Gold plated silver aluminium contacts enable excellent conductivity and durability.
- Wide operating temperature range from -40°C to 85°C suits various environments.
- Low coil power consumption of 230mW with coil resistance of 2500Ω.
- Sealed construction allows for automatic washing in manufacturing processes.
- Suitable for telecommunications, measurement, and audio-visual equipment applications.
- PCB mounting type with PCB terminals for easy installation.
Product Description
Panasonic AGN20024 PCB Signal Relay is a high-quality, ultra-small Signal Relay designed for PCB mounting applications. Featuring a 24V DC coil and DPDT contact configuration, it ensures reliable operation in various industrial and electronic circuits. The compact slim body measures only 9 mm in height with a surface footprint of 5.7 x 10.6 mm, enabling high packing density on printed circuit boards.
This relay boasts twin crossbar contacts constructed from gold plated silver aluminium, enhancing signal integrity and contact reliability. It operates reliably across a wide temperature range from -40°C to 85°C and offers a low coil power dissipation of 230mW, making it energy efficient.
The sealed construction design protects internal components and supports automatic washing during PCB manufacturing workflows, enhancing product durability. With a coil resistance of 2500Ω and PCB terminals for mounting, this relay provides ease of installation and effective signal switching up to 1A current with switching voltages of 125V AC and 110V DC.
Typical industrial and commercial applications include telecommunications equipment, measurement instruments, and audio-visual devices where space and reliability are critical factors. Its compliance with RoHS directives ensures it meets environmental safety and quality standards. Manufactured in Japan, the AGN20024 model reflects Panasonic's commitment to quality and innovation in relay technology.
Compact slim body ensures space-efficient PCB mounting. Twin crossbar contacts guarantee high signal reliability. Gold plated silver aluminium contact materials. Wide operating temperature range of -40°C to 85°C. Energy-efficient coil with 230mW power consumption.
Sealed construction suitable for automatic washing processes. Applications in telecommunications, measurement, and AV equipment. PCB terminal type mount for easy assembly. RoHS compliant for environmental safety. Explore more Panasonic relays and related products for industrial and electronic applications at EnvMart.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The coil voltage for the Panasonic AGN20024 signal relay is 24V DC.
This model has a height of 9 mm, a width of 5.7 mm, and a length of 10.6 mm, making it compact for PCB mounting.
The maximum switching current for this relay is 1A.
The relay features a DPDT (Double Pole Double Throw) contact configuration.
It operates within a temperature range of -40°C to 85°C.
The contacts are made of gold plated silver aluminium, which enhances conductivity and reliability.
The coil power consumption is 230mW.
The coil resistance is 2500Ω.
This relay is designed for PCB mounting and features PCB terminals for easy installation.
Yes, it is RoHS compliant, ensuring it meets environmental safety and quality standards.
This relay is suitable for telecommunications, measurement instruments, and audio-visual equipment applications.
This model is manufactured in Japan.
