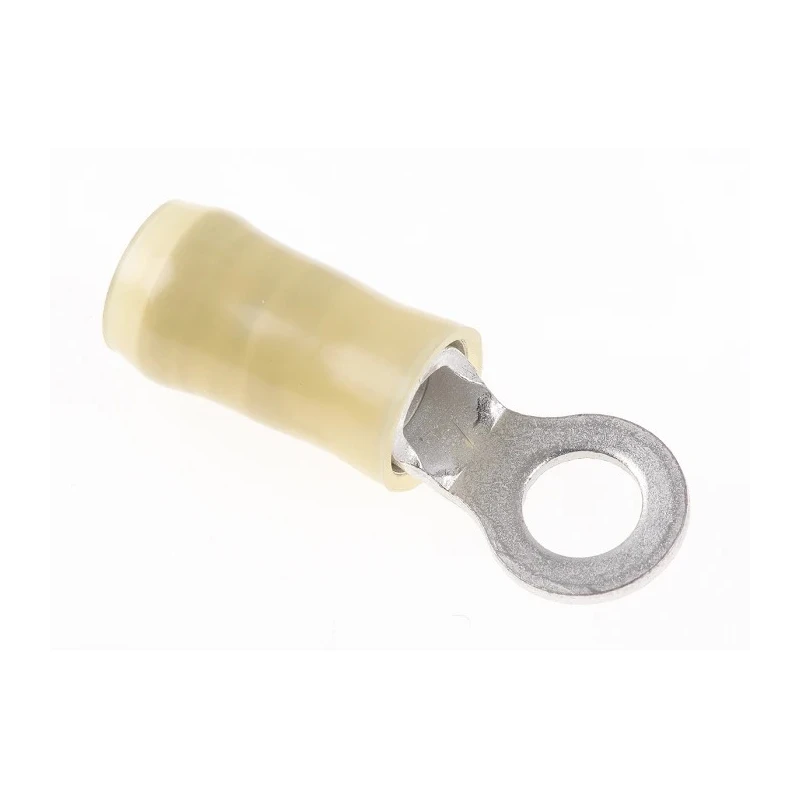

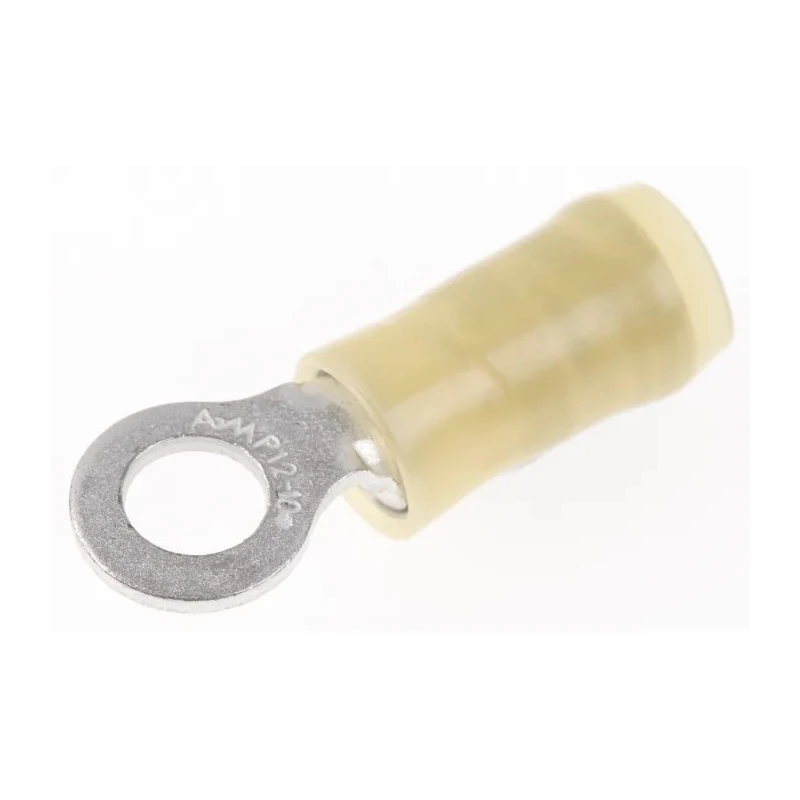

TE Connectivity PIDG Insulated Ring Terminal M5 Stud Size, 12 AWG to 10 AWG Wire Size, Nylon Insulation, Yellow 32883
Specifications
| Country of Origin | United States |
|---|---|
| Brand | TE Connectivity |
| Colour | Yellow |
| THICKNESS | 1.02mm |
| Model | 32883 |
| Insulation | Insulated |
| Overall Length | 26.57mm |
| Contact Material | Copper |
| Series | PIDG |
| Maximum Operating Temperature | 105°C |
| Insulation Material | Nylon |
| Contact Plating | Tin |
| Minimum Wire Size mm² | 3mm² |
| Maximum Wire Size mm² | 6mm² |
| Minimum Wire Size AWG | 12AWG |
| Maximum Wire Size AWG | 10AWG |
| Outer Ring Diameter | 8.71mm |
| Inner Ring Diameter | 5mm |
| Stud Size | M5 |
Key Features
- High conductivity copper body ensures reliable electrical connections.
- Copper sleeve improves wire insulation support and prevents fraying.
- Serrated wire barrel provides maximum contact and tensile strength after crimping.
- Color-coded yellow nylon insulation sleeve enhances wire size identification.
- Funnelled wire entry facilitates fast and easy wire insertion during assembly.
- Suitable for a wide range of industrial applications including aerospace and transportation.
- Rated for maximum operating temperature of 105°C, ensuring durability under heat stress.
- Compatible with M5 stud size and supports wire sizes from 3 mm² to 6 mm².
Product Description
TE Connectivity 32883 PIDG Insulated Ring Terminal is a professional-grade wire crimp terminal designed for secure and durable electrical connections in demanding industrial environments. Featuring a precision-formed copper body with tin plating, this terminal offers excellent conductivity and corrosion resistance. The nylon insulation sleeve in yellow color clearly identifies wire sizes between 12 AWG and 10 AWG, facilitating fast wire gauging.
The terminal includes a copper sleeve surrounding the wire barrel, which reinforces insulation support and prevents wire stranding or fraying during crimping and service. Serrations inside the barrel maximize contact reliability and tensile strength after crimping, ensuring strong mechanical and electrical bonds.
This Ring Terminal supports an M5 stud size with an outer ring diameter of 8.71 mm and an inner ring diameter of 5 mm. Its overall length is 26.57 mm, and thickness measures 1.02 mm, making it suitable for precise and compact wiring assemblies.
Designed for industrial, automotive, aerospace, transportation, and power supply uses, the terminal withstands maximum operating temperatures up to 105°C. The funnelled entry allows easy and fast wire insertion, ideal for high-speed production environments.
High conductivity copper body. Copper sleeve for improved wire insulation support. Serrations for maximum contact and tensile strength. Yellow nylon sleeve for wire size identification. Funnelled wire entry for easy insertion.
Compatible with 12 AWG to 10 AWG wires. Rated up to 105°C operating temperature. Suitable for aerospace, automotive, and industrial applications.
Produced in the United States, this terminal meets demanding quality standards and offers a reliable solution for wire terminations in harsh conditions. Explore more connectors and wire terminals in EnvMart's Electronics & Electricals category.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
This model supports wire sizes from 12 AWG to 10 AWG, with a minimum wire size of 3 mm² and a maximum wire size of 6 mm².
It is rated for a maximum operating temperature of 105°C, ensuring it can withstand heat stress in various applications.
The overall length of this terminal is 26.57 mm, with an outer ring diameter of 8.71 mm and an inner ring diameter of 5 mm. Its thickness measures 1.02 mm.
The contact material is copper, which is tin plated for improved conductivity and corrosion resistance.
It features nylon insulation, which is color-coded yellow for easy identification of wire sizes.
The funnelled wire entry design facilitates fast and easy wire insertion during assembly, making it suitable for high-speed production environments.
This terminal is designed for use in industrial, automotive, aerospace, transportation, and power supply applications.
The serrated wire barrel maximizes contact and tensile strength after crimping, ensuring strong mechanical and electrical bonds.
This terminal is produced in the United States, meeting demanding quality standards.
It is compatible with an M5 stud size, making it suitable for various mounting applications.
The copper sleeve surrounding the wire barrel improves insulation support and prevents fraying during crimping and service.
This terminal belongs to the PIDG series, which is known for its professional-grade wire crimp terminals designed for secure electrical connections.
