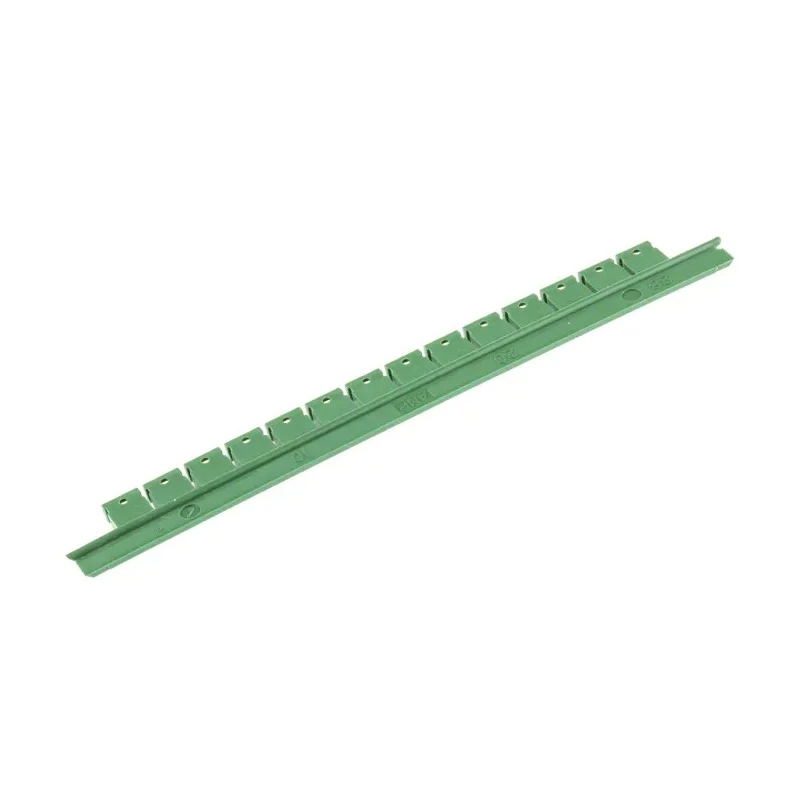

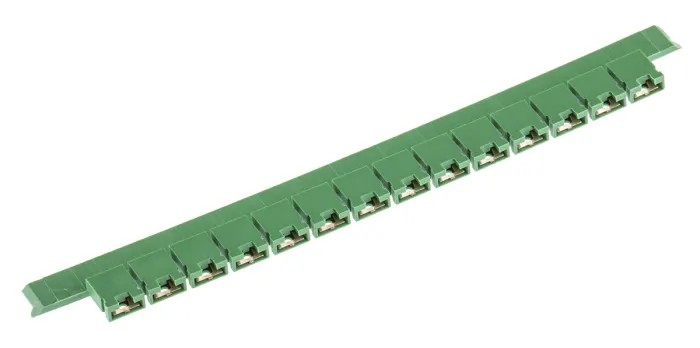

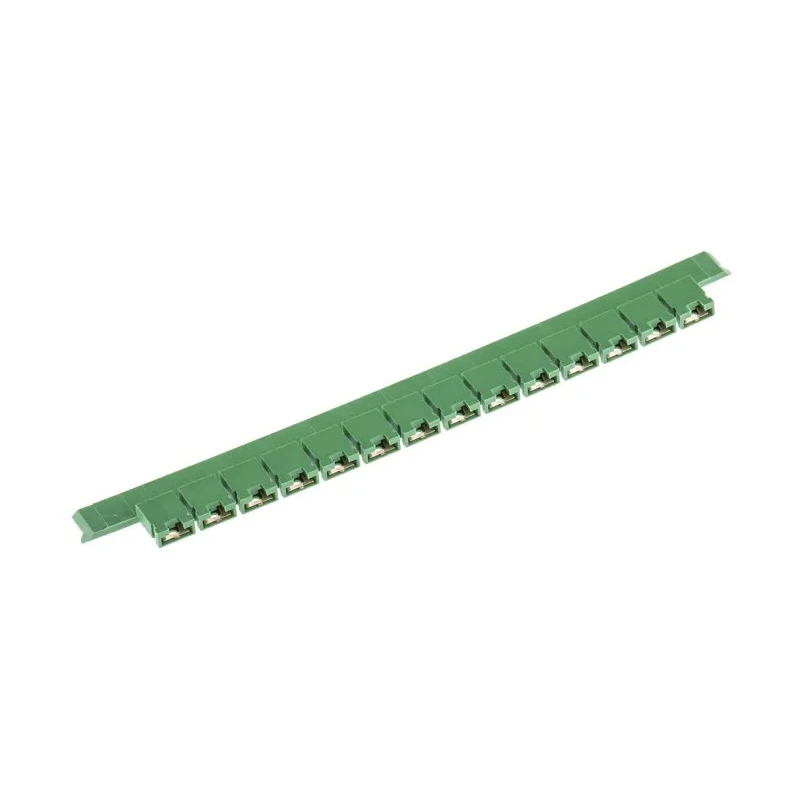

TE Connectivity AMPMODU MOD IV Shunt Straight Female Green Open Top 2 Way 1 Row 2.54 mm Pitch 142270-1
Specifications
| Country of Origin | India |
|---|---|
| Voltage | 250V |
| Brand | TE Connectivity |
| Colour | Green |
| Orientation | Straight |
| Current | 3A |
| Length | 5.08mm |
| Model | 142270-1 |
| Depth | 6.3mm |
| Width | 2.54mm |
| Housing Material | Polyester |
| Contact Material | Beryllium Copper Alloy |
| Series | AMPMODU MOD IV |
| Sub Type | Open Top |
| Number of Rows | 1 |
| Pitch | 2.54mm |
| Contact Plating | Gold over Nickel |
| Number of Contacts | 2 |
| Contact Gender | Female |
| Connector Gender | Female |
| Maximum Contact Resistance | 15mΩ |
Key Features
- The shunt supports a maximum current of 3 A.
- It operates at a voltage rating of 250 V for reliable electrical performance.
- Constructed with beryllium copper alloy contacts for durability and conductivity.
- The contact plating is gold over nickel ensuring low contact resistance.
- Designed for straight orientation and fits on a standard 2.54 mm pitch spacing.
- The unit features an open top design suitable for easy installation and removal.
- Maximum contact resistance is rated at 15 milliohms guaranteeing efficient signal transmission.
Product Description
TE Connectivity model 142270-1 AMPMODU MOD IV Shunt is a precision-engineered, low-profile jumper designed for electronic PCB connector applications. This straight female shunt with green polyester housing is an open top type, supporting 2-way 1-row configurations with a 2.54 mm pitch.
Engineered to carry currents up to 3 A and handle voltages up to 250 V, this shunt ensures robust electrical connections with minimal contact resistance measured at a maximum of 15 milliohms. The contacts are made of high-quality beryllium copper alloy and plated with gold over nickel for enhanced conductivity and corrosion resistance.

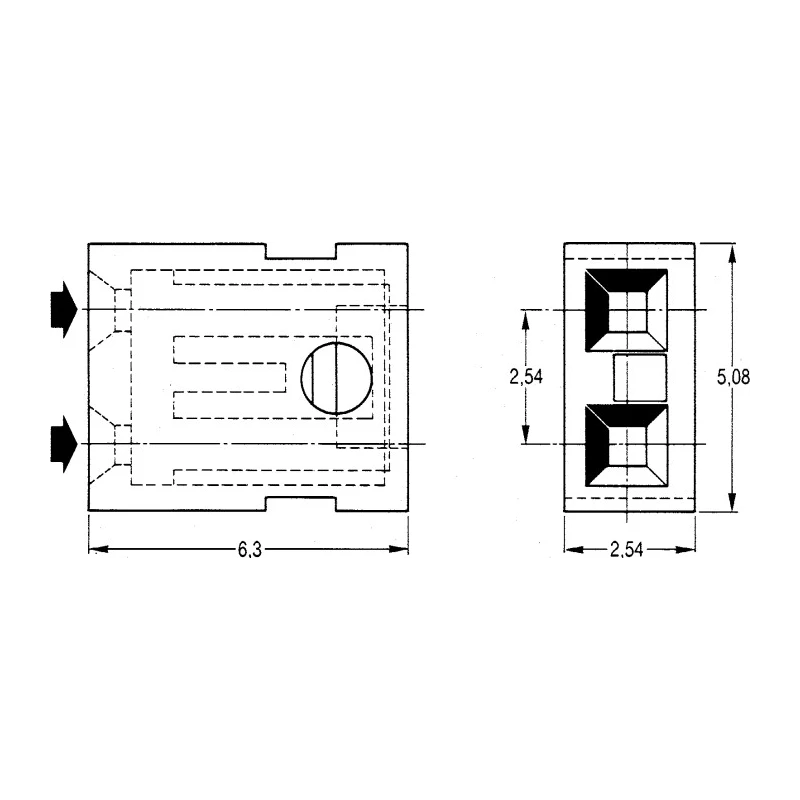

The compact dimensions of 5.08 mm in length, 2.54 mm in width, and 6.3 mm depth make it ideal for tight PCB layouts while maintaining ease of installation thanks to its open top form factor. The straight orientation ensures compatibility with standardized AMPMODU MOD IV connector systems across various industrial electronic assembly applications.
This shunt is widely used in electronics manufacturing, industrial automation systems, and PCB wiring housings where reliable and repeatable electrical bridging is required. Its modular design aligns with the industry standard 2.54 mm grid, making it suitable for wire-to-board or board-to-board connections.
Key Features:. Low-profile shunt with 2.54 mm pitch and open top design. Gold over nickel plated beryllium copper contacts for durability. Current rating up to 3 A and voltage rating 250 V. Compact size supports dense PCB layouts and standard AMPMODU connectors.
Straight female configuration with green polyester housing. Maximum contact resistance of 15 milliohms ensures excellent electrical performance.
Set contains one shunt piece. This product is new and manufactured in India. TE Connectivity products are known for quality and compliance with industry standards. Browse our Connectors category for compatible PCB connectors and related wire housings at EnvMart.
Explore more products in our Jumpers & Shunts category.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The shunt supports a maximum current of 3 A.
It operates at a voltage rating of 250 V.
The contacts are made of beryllium copper alloy and are plated with gold over nickel for enhanced conductivity and corrosion resistance.
The maximum contact resistance is rated at 15 milliohms, ensuring efficient signal transmission.
The shunt has a length of 5.08 mm, a width of 2.54 mm, and a depth of 6.3 mm.
This model features a straight orientation, designed for compatibility with standardized AMPMODU MOD IV connector systems.
It has 2 contacts in a 1-row configuration.
The shunt is designed for a pitch size of 2.54 mm.
The housing is made of green polyester.
It is widely used in electronics manufacturing, industrial automation systems, and PCB wiring housings where reliable electrical bridging is required.
It features an open top design suitable for easy installation and removal.
This product is manufactured in India.
