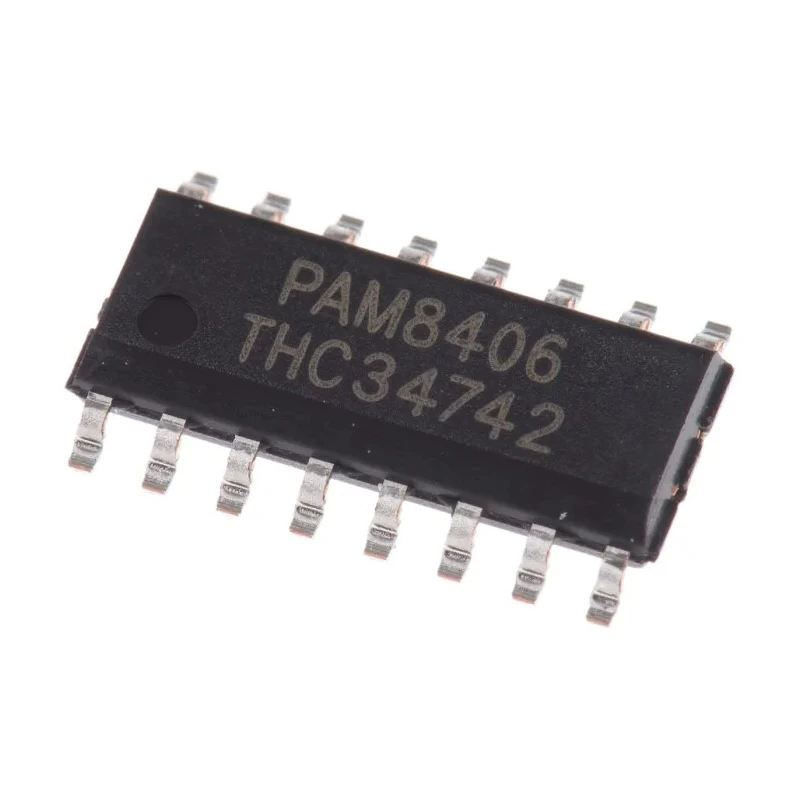

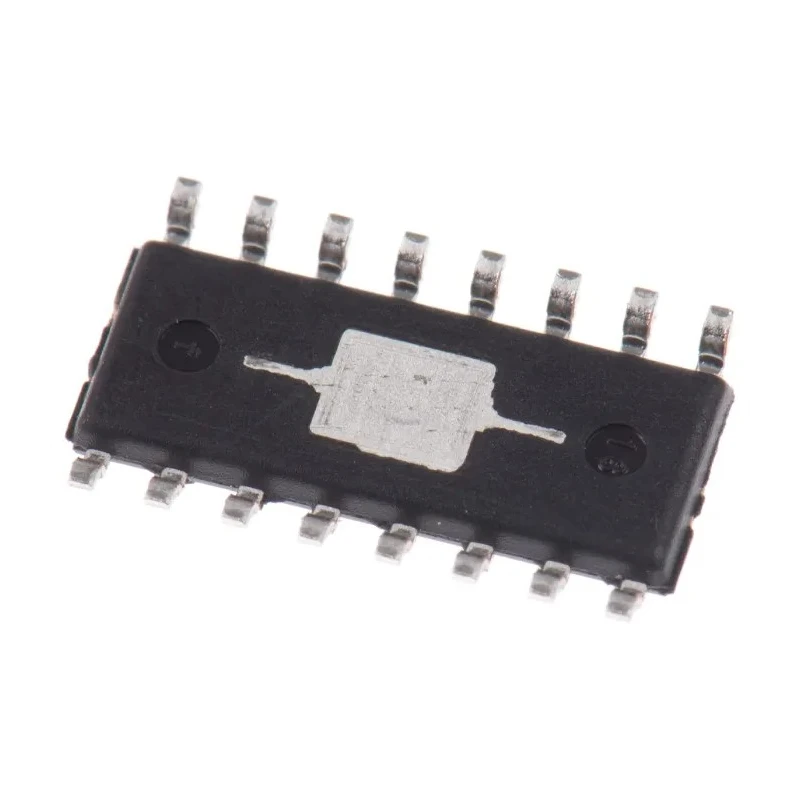

DiodesZetex Audio Amplifier IC, 16-Pin SOP Package, 3.1W Output Power, 2.5V-5.5V Supply Voltage PAM8406ER
Specifications
| Country of Origin | China |
|---|---|
| Brand | DiodesZetex |
| Height | 1.2mm |
| Length | 9.8mm |
| Model | PAM8406ER |
| Width | 5.9mm |
| Output Power | 3.1W |
| Mount Type | Surface |
| Series | PAM8406 |
| Maximum Operating Temperature | 85°C |
| Package Type | SOP |
| Minimum Operating Temperature | -40°C |
| Number Of Channels | 1 |
| Pin Count | 16 |
| Maximum Supply Voltage | 5.5V |
| Minimum Supply Voltage | 2.5V |
| Amplifier Type | Audio |
Key Features
- This audio amplifier IC supports a single audio channel for mono output.
- Compact 16-pin Small Outline Package (SOP) facilitates surface mount technology assembly.
- Operating temperature range spans -40°C to 85°C, suitable for various environmental conditions.
- Designed for speaker applications with highly integrated Class-D amplifier functionality.
- This IC is RoHS compliant and manufactured in China.
Product Description
DiodesZetex PAM8406ER is a high performance audio amplifier IC designed for speaker applications delivering 3.1W output power in a compact 16-Pin SOP surface-mount package. Operating between 2.5V minimum and 5.5V maximum supply voltage, it suits low voltage audio amplification needs in electronic circuits.
Featuring a single audio channel, the PAM8406ER employs Class-D amplification technology ensuring efficient power use and compact design. Its operating temperature range of -40°C to 85°C enables performance stability in varied industrial and commercial environments.
The device measures 9.8mm in length, 5.9mm in width, and 1.2mm in height, allowing for flexible and space-saving printed circuit board (PCB) layout integration. It is supplied on reels ready for automated PCB assembly and mass production efficiency.
Applications for this audio IC include sound amplification in home audio systems, consumer electronics, and embedded speaker solutions in manufacturing and industrial monitoring devices.
This audio amplifier IC supports a single audio channel for mono output. Compact 16-pin Small Outline Package (SOP) facilitates surface mount technology assembly. Operating temperature range spans -40°C to 85°C, suitable for various environmental conditions.
Dimensions include 9.8mm length, 5.9mm width, and 1.2mm height for compact PCB integration. Designed for speaker applications with highly integrated Class-D amplifier functionality. This IC is RoHS compliant and manufactured in China.
This high-efficiency audio amplifier IC is suitable for industrial, commercial, and consumer electronics applications requiring reliable low-power audio amplification. Browse our extensive Electronics & Electricals catalog for more advanced amplifiers and audio components.
Explore more products in our Audio Amplifier ICs category.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The PAM8406ER delivers an output power of 3.1W.
It operates with a supply voltage ranging from 2.5V to 5.5V.
This model measures 9.8mm in length, 5.9mm in width, and 1.2mm in height.
The maximum operating temperature for the PAM8406ER is 85°C.
It comes in a 16-pin Small Outline Package (SOP) suitable for surface mount technology.
This audio amplifier IC supports a single audio channel for mono output.
The minimum operating temperature is -40°C.
It employs Class-D amplification technology for efficient power use.
Yes, this audio amplifier IC is RoHS compliant.
It is designed for sound amplification in home audio systems, consumer electronics, and embedded speaker solutions.
This model is designed for surface mounting.
The PAM8406ER has a pin count of 16.
