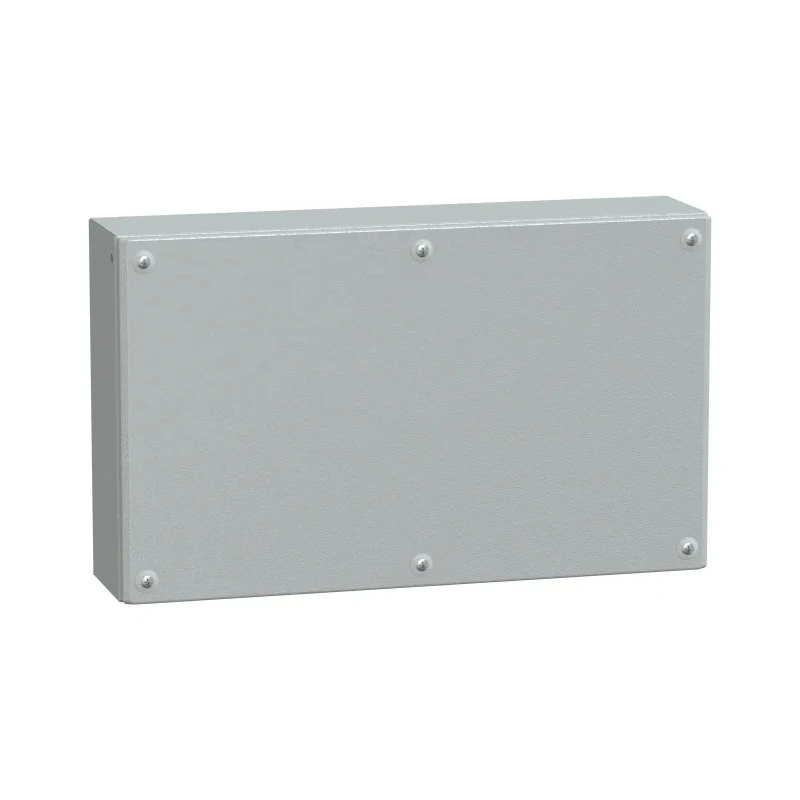

Schneider Electric PanelSeT SBM Series Steel Wall Box Enclosure IP66 300 mm x 500 mm x 120 mm NSYSBM305012
Specifications
| Country of Origin | India |
|---|---|
| Brand | Schneider Electric |
| Colour | Grey |
| Body Material | Steel |
| Model | NSYSBM305012 |
| IP Rating | IP66 |
| Series | PanelSeT SBM |
| External Width | 500mm |
| External Depth | 120mm |
| External Height | 300mm |
| Standards/Approvals | IEC 62208, LR, UL, RoHS, DNV, REACH, BV |
| Door Lock Type | Screw |
| Better World Claim | Designed for Disassembly |
| Internal Mount Type | Panel |
| IK Rating | IK10 |
| Outside sealed area | PZ2 screwdriver captive screw lock |
| Legrand Atlantic Series Steel Wall Box, IP66, 300 mm x 500 mm x 120 mmBrand | Legrand |
Key Features
- Constructed from sheet steel with polyester powder coating, finished in Grey RAL 7035.
- Rated IP66 and IK10 for protection against dust, powerful water jets, and mechanical impact.
- Features a single-piece folded and welded wall-mounted body with a plain door secured by half-turn captive screws.
- Equipped with polyurethane sealing gasket and earth stud for equipotential bonding.
- Designed for industrial machine and building applications, providing durable and reliable enclosure solutions.
- Easy installation with direct fixing through the rear or external mounting lugs.
- Complies with IEC 62208, LR, UL, RoHS, DNV, REACH, and BV standards.
- Includes 1 enclosure body, 1 removable cover/lid, and 6 cover screws.
Product Description
Schneider Electric NSYSBM305012 PanelSeT SBM Series Steel Wall Box Enclosure is a robust industrial wall-mounted electrical enclosure designed for various industrial, manufacturing, construction, and infrastructure applications. It measures 300 mm in height, 500 mm in width, and 120 mm in depth, delivering excellent protection with an IP66 ingress protection rating and IK10 mechanical impact resistance.
The enclosure features a single-piece body folded and welded from high-quality sheet steel and finished with a grey (RAL 7035) polyester powder coating, ensuring durability and corrosion resistance. The plain door or lid can be removed with captive screws and is sealed with a polyurethane gasket to maintain the IP66 rating, protecting internal components from dust and powerful water jets.
It includes a welded M6x16 earth stud for equipotential bonding, ensuring safety compliance. The door locks use screw-type captive half-turn screws, facilitating secure and easy access. The versatile enclosure supports mounting options including rear fixing or using external mounting lugs and includes folded gutters on the front for added structural strength.
This model complies with essential standards such as IEC 62208, LR, UL, RoHS, DNV, REACH, and BV, demonstrating commitment to quality, environmental compliance, and safety. The product is part of Schneider Electric's Better World initiative, designed for sustainability with features that support disassembly and recycling.
Constructed from durable steel with polyester powder coating for longevity. IP66 and IK10 rated to withstand harsh industrial environments. Single-piece rectangular body with folded gutters for strength. Polyurethane sealing gasket ensures dust-tight and waterproof protection.
Screw-type captive half-turn locks for secure access. Equipped with welded earth stud for equipotential connection. Compliant with multiple international industrial standards ensuring reliability. Includes enclosure body, cover/lid, and cover screws for installation.
Designed for industrial electrical, automation, and building applications.
This Wall Box is ideal for protecting sensitive electronics in challenging environments such as underground parking facilities, road and railway tunnels, and other industrial installations. It is optimized for ease of installation and maintenance, ensuring long term operational safety and performance.
Explore the complete range of electrical enclosures from Schneider Electric and other leading brands at EnvMart for your industrial and commercial needs.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The external dimensions of this enclosure are 300 mm in height, 500 mm in width, and 120 mm in depth.
This model has an IP66 rating, providing protection against dust and powerful water jets.
It is constructed from sheet steel and finished with a polyester powder coating in Grey RAL 7035.
The enclosure has an IK10 rating, indicating it can withstand high levels of mechanical impact.
The door is secured using screw-type captive half-turn screws, allowing for secure access.
It supports mounting options including direct fixing through the rear or using external mounting lugs.
This model complies with IEC 62208, LR, UL, RoHS, DNV, REACH, and BV standards.
The enclosure features a single-piece folded and welded body, a polyurethane sealing gasket, and a corrosion-resistant powder coating.
Yes, it includes a welded M6x16 earth stud for equipotential bonding, ensuring safety compliance.
It is designed for industrial electrical, automation, and building applications, suitable for environments like underground parking and tunnels.
The Better World claim indicates that the enclosure is designed for disassembly, supporting sustainability and recycling efforts.
The package includes one enclosure body, one removable cover/lid, and six cover screws for installation.
