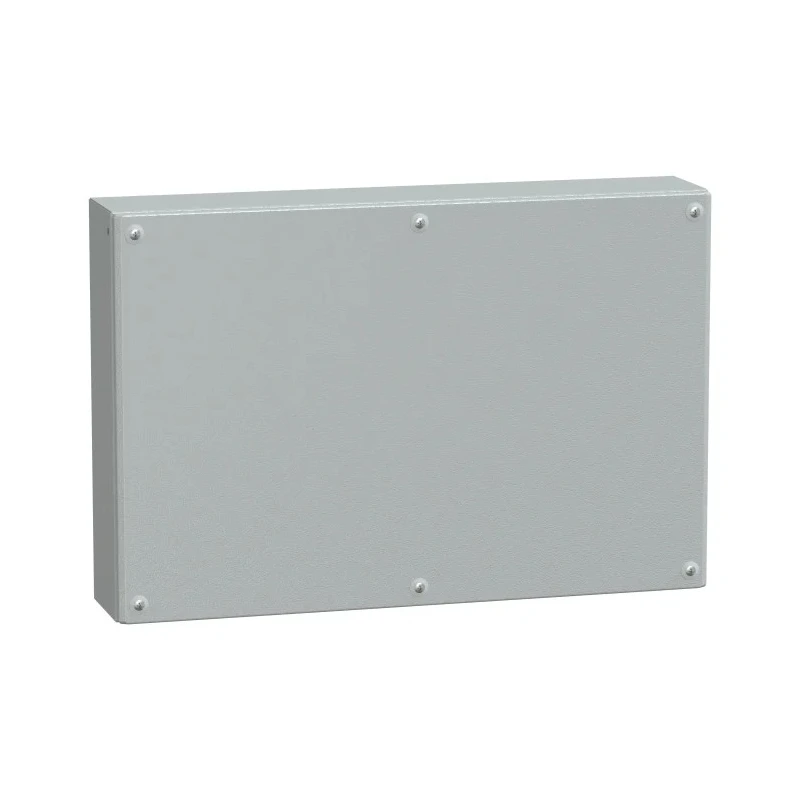

Schneider Electric PanelSeT SBM Series Industrial Steel Wall Box Enclosure IP66 400mm x 600mm x 120mm NSYSBM406012
Specifications
| Country of Origin | France |
|---|---|
| Brand | Schneider Electric |
| Colour | Grey |
| Body Material | Steel |
| Model | NSYSBM406012 |
| IP Rating | IP66 |
| Series | PanelSeT SBM |
| External Width | 600mm |
| External Depth | 120mm |
| External Height | 400mm |
| Standards/Approvals | BV, IEC 62208, DNV, REACH, RoHS, UL, LR |
| Door Lock Type | Screw |
| Better World Claim | Designed for Disassembly |
| Internal Mount Type | Panel |
| IK Rating | IK10 |
| Outside sealed area | PZ2 screwdriver captive screw lock |
Key Features
- Constructed from sheet steel with a grey polyester powder coating for durability.
- Complies with IP66 standard, providing dust-tight and protection against powerful water jets.
- Features an IK10 rating for mechanical impact resistance.
- Includes a plain removable door/lid secured by captive screws with a PZ2 screwdriver captive screw lock.
- Designed for industrial machine and building applications including underground parking and tunnels.
- Equipped with a welded M6 x 16 earth stud for equipotential connection.
- Single-piece folded and welded body with provision for mounting plates and DIN rails.
- Offered with 6 cover screws as standard supply.
Product Description
Schneider Electric NSYSBM406012 PanelSeT SBM Series industrial steel wall box is a robust enclosure designed for protection and housing of electrical components in industrial machine and building applications.
The enclosure measures 400 mm in height, 600 mm in width, and 120 mm in depth with an industrial finish in grey (RAL 7035) polyester powder coating over sheet steel for excellent durability and corrosion resistance.
Engineered to provide superior protection, it offers an IP66 rating ensuring the enclosure is completely dust-tight and defended against powerful jets of water, meeting IEC 60529 standards.
Additionally, it possesses an IK10 rating for impact resistance as per IEC 62262, protecting sensitive electronics from mechanical impacts equivalent to a 5 kg object dropped from 40 cm.
The enclosure's flat face, single-piece folded and welded body design simplifies installation and maintenance. It features a removable plain door/lid with captive screws secured by a PZ2 screwdriver captive screw lock for easy and secure access.
For equipotential bonding, the cover includes a welded M6 x 16 earth stud ensuring electrical safety compliance. The rear section is equipped with two or three drilled profiles (for widths up to 400 mm) to facilitate mounting plates or DIN rails, with fixing centers of 12.5 mm.
Supplied as a set containing one enclosure body, one cover/lid, and six cover screws, it meets multiple international quality and safety standards including BV, IEC 62208, DNV, REACH, RoHS, UL, and LR certifications, ensuring high reliability for demanding industrial environments.
Typical installation contexts for this PanelSeT SBM series wall box include underground parking, road, and railway tunnel applications, among other industrial and infrastructure projects requiring robust electrical enclosures.
Constructed from sheet steel with polyester powder coating for corrosion resistance. IP66 rated for dust and water ingress protection. IK10 rated for mechanical impact resistance. Ease of installation with captive screws and single-piece design.
Earth stud welded for equipotential connection. Multiple drilled profiles for mounting flexibility. Compliant with international quality and safety standards. Suitable for industrial machine and building applications. Set contains 1 enclosure body, 1 cover/lid, and 6 screws.
Explore a wide range of electrical enclosures and industrial automation products in the Schneider Electric category at EnvMart to meet diverse industrial and commercial application needs.
Explore more products in our Wall Boxes category.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The enclosure has external dimensions of 400 mm in height, 600 mm in width, and 120 mm in depth.
It has an IP66 rating, which means it is completely dust-tight and protected against powerful water jets.
The enclosure is constructed from sheet steel with a grey polyester powder coating for corrosion resistance.
This model has an IK10 rating, which indicates it can withstand mechanical impacts equivalent to a 5 kg object dropped from 40 cm.
The enclosure features a plain removable door/lid that is secured by captive screws, which can be operated with a PZ2 screwdriver.
It complies with multiple international standards including BV, IEC 62208, DNV, REACH, RoHS, UL, and LR.
It is designed for industrial machine and building applications, including underground parking and tunnels.
Yes, it is equipped with multiple drilled profiles for mounting plates or DIN rails, facilitating installation.
The welded M6 x 16 earth stud is included for equipotential bonding, ensuring electrical safety compliance.
The enclosure is finished in grey (RAL 7035).
The enclosure is supplied with six cover screws as standard.
The country of origin for this enclosure is France.
