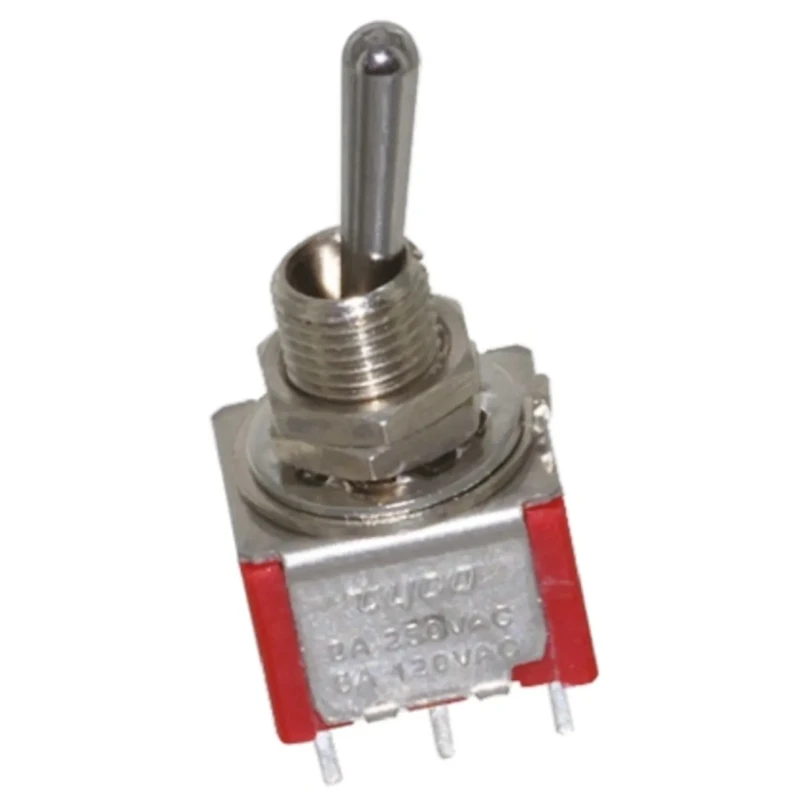

TE Connectivity Toggle Switch Panel Mount On-Off-On DPDT Solder Terminal 28V DC 125V AC A203SYZQ04
Specifications
| Country of Origin | India |
|---|---|
| Brand | TE Connectivity |
| Length | 0.5in |
| Model | A203SYZQ04 |
| Width | 0.45in |
| Mount Type | Panel |
| Series | Gemini A |
| Maximum Operating Temperature | 85°C |
| Contact Configuration | DPDT |
| Minimum Operating Temperature | -30°C |
| Terminal type | Solder |
| Standards/Approvals | RoHS |
| Switch Operation | On-Off-On |
| Actuator Length | 10.4mm |
| Contact DC Voltage | 28V dc |
| Switch Contact Current | 5A |
| Mechanical Life | 6000Cycles |
| Contact AC Voltage | 125V ac |
Key Features
- Features a double pole double throw (DPDT) contact configuration.
- Operates with an On-Off-On switching mechanism for versatile control.
- Designed for panel mounting with solder terminal connections.
- Rated for 5 Amp switch contact current for reliable performance.
- Compact actuator length of 10.4 mm for precise switching action.
- Operates reliably within temperature ranges from -30°C to 85°C.
- Has a mechanical life of 6000 cycles ensuring durability.
- Constructed with a stainless steel frame and brass tin-plated solder support for longevity.
Product Description
TE Connectivity A203SYZQ04 toggle switch is a high-quality panel mount switch designed for electrical and automation applications. It features a DPDT contact configuration with On-Off-On switch operation, suitable for controlling multiple circuits with single actuator movement. This switch is rated to handle 28V DC and 125V AC voltages with a 5 Amp contact current capability, making it versatile for various industrial and commercial uses.
With an actuator length of 10.4mm, this toggle switch provides precise and reliable switching action. The switch body includes a robust stainless steel frame paired with brass tin-plated solder support, enhancing mechanical strength and connectivity. Epoxy sealed terminals offer protection against dust and moisture, improving durability in demanding environments.
It is designed specifically for panel mounting, facilitating easy installation in control panels and switchboards. The operating temperature range between -30°C and 85°C ensures reliable function in harsh environmental conditions. With a mechanical life rated at 6000 cycles, this toggle switch guarantees long-term dependable service.
Double pole double throw (DPDT) contact configuration. On-Off-On switch operation for flexible control. 5 Amp contact current rating. Panel mount design with solder terminals. 10.4 mm actuator length. Temperature range: -30°C to 85°C.
6000 mechanical cycles life expectancy. Stainless steel frame with brass tin-plated solder support. Epoxy sealed terminals for environmental protection. RoHS compliant for environmental standards.
This toggle switch is ideal for industrial, electrical automation, control panels, and equipment requiring reliable switching performance. Its compatibility with both AC and DC voltages makes it suitable for a wide range of manufacturing and commercial applications. Available as part of the Gemini A series, the A203SYZQ04 model offers proven reliability and quality from TE Connectivity.
Explore the Electronics & Electricals category at EnvMart for more Toggle Switches and related switch gear from trusted brands like TE Connectivity.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
This model features a double pole double throw (DPDT) contact configuration, allowing for versatile control of multiple circuits with a single actuator movement.
It is rated for 28V DC and 125V AC, making it suitable for various industrial and commercial applications.
The switch can handle a maximum contact current of 5 Amps, ensuring reliable performance in its applications.
This toggle switch operates reliably within a temperature range of -30°C to 85°C, suitable for harsh environmental conditions.
It has a mechanical life rated at 6000 cycles, ensuring long-term dependable service.
This model features solder terminals, which facilitate secure connections in panel-mounted applications.
The switch has a length of 0.5 inches and a width of 0.45 inches, making it compact for panel mounting.
It is constructed with a stainless steel frame and brass tin-plated solder support, enhancing its mechanical strength and connectivity.
Yes, this model is RoHS compliant, meeting environmental standards for hazardous substances.
The actuator length is 10.4 mm, providing precise switching action.
This toggle switch is designed for panel mounting, making it easy to install in control panels and switchboards.
This model is part of the Gemini A series by TE Connectivity, known for its reliability and quality.
