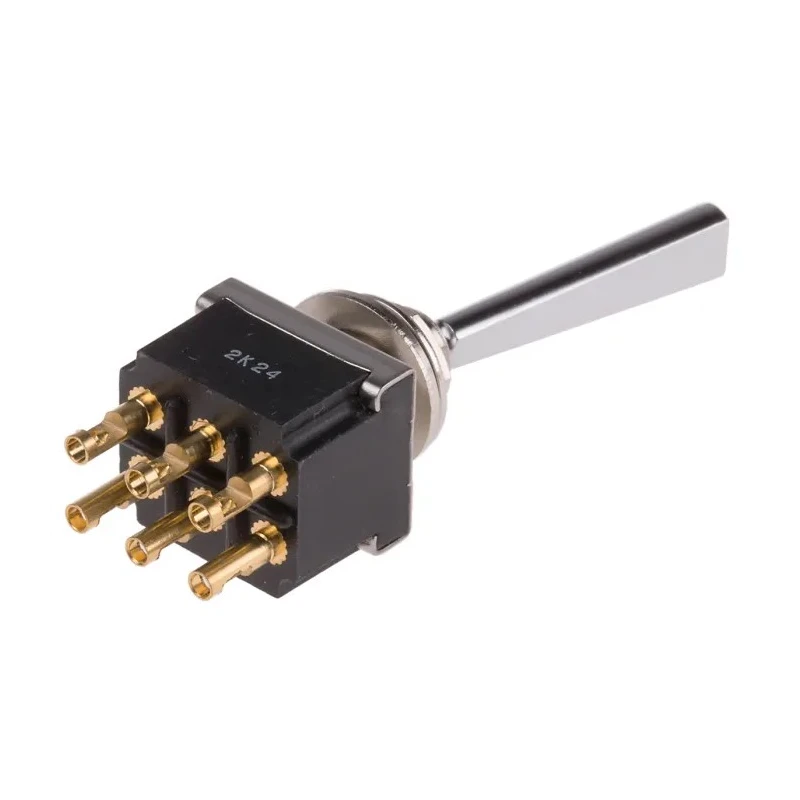

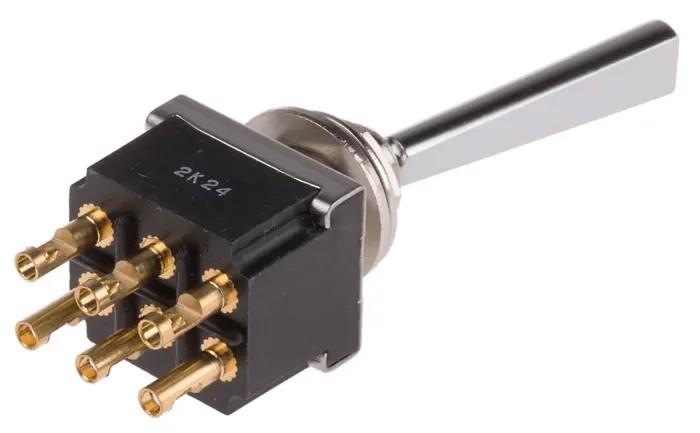

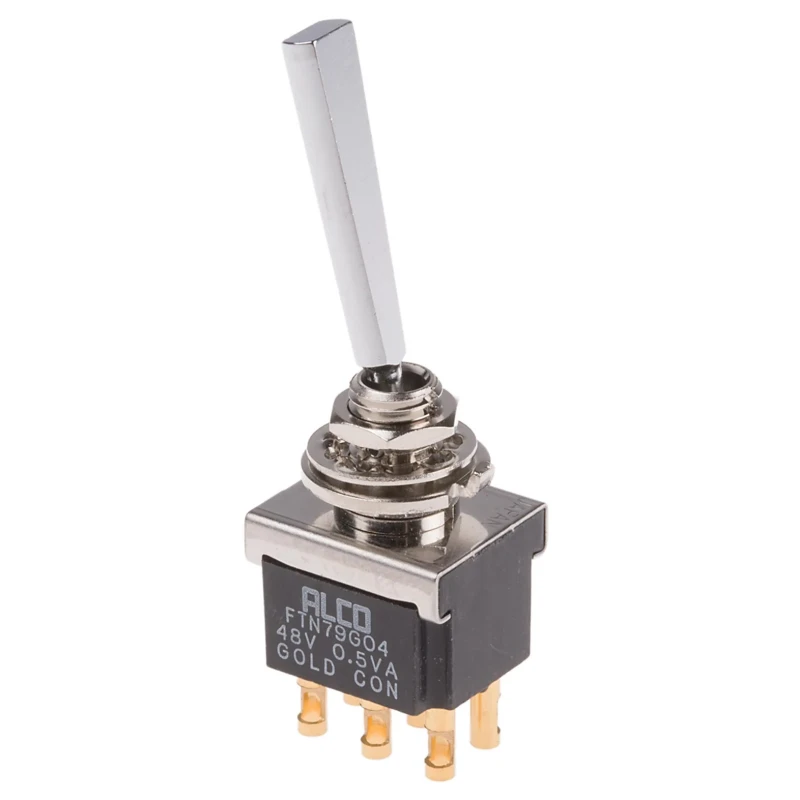

TE Connectivity Toggle Switch Panel Mount On-On DPDT Solder Terminal 12 V dc 115 V ac FTN79G04

TE Connectivity FTN79G04 is a high-quality toggle switch designed for reliable panel mount applications. It features an On-On switch operation with a DPDT contact configuration, supporting both 12 V dc and 115 V ac contact voltages. The switch comes with solder terminals facilitating secure electrical connections.

The actuator is made from chrome plated brass and measures 16.5 mm in length, providing ease of operation and a professional aesthetic. Rated for a 6 amp switch contact current, this toggle switch ensures dependable performance for control circuits.

Engineered to endure harsh industrial environments, it meets IP67 and IP68 protection ratings, protecting internal components from dust and submersion in water. The operating temperature range spans from -20°C to a maximum of 80°C, accommodating various climate conditions in industrial and commercial settings.

The mechanical life longevity of 100000 operations guarantees durability for extended use. This switch is non-illuminated and requires a panel cutout size of 6.2 mm for installation.

Gold and silver contact versions are available, providing options for specific reliability and conductivity requirements. Compliance with major international standards like cULus, EN, IEC, RoHS, and UL demonstrates the switch's adherence to safety and environmental regulations.

Typical applications include industrial automation, electrical control panels, instrumentation, and machinery requiring robust and reliable user input devices. This toggle switch is ideal for use in industrial, manufacturing, laboratory, and commercial environments.

This toggle switch features a chrome plated brass actuator with a length of 16.5 mm. It is rated for a switch contact current of 6 amps and a mechanical life of 100000 operations. The switch is designed to operate under temperature ranges from -20°C to 80°C.

It provides IP67 and IP68 ratings, ensuring robust protection against dust and water ingress. This component is non-illuminated and requires a panel cutout size of 6.2 mm. Gold and silver contact options are available with specific stock numbers for replacement parts.

The switch complies with standards including cULus, EN, IEC, RoHS, and UL. Explore more products like the TE Connectivity FTN79G04 Toggle Switch in the Electronics & Electricals category at EnvMart.
