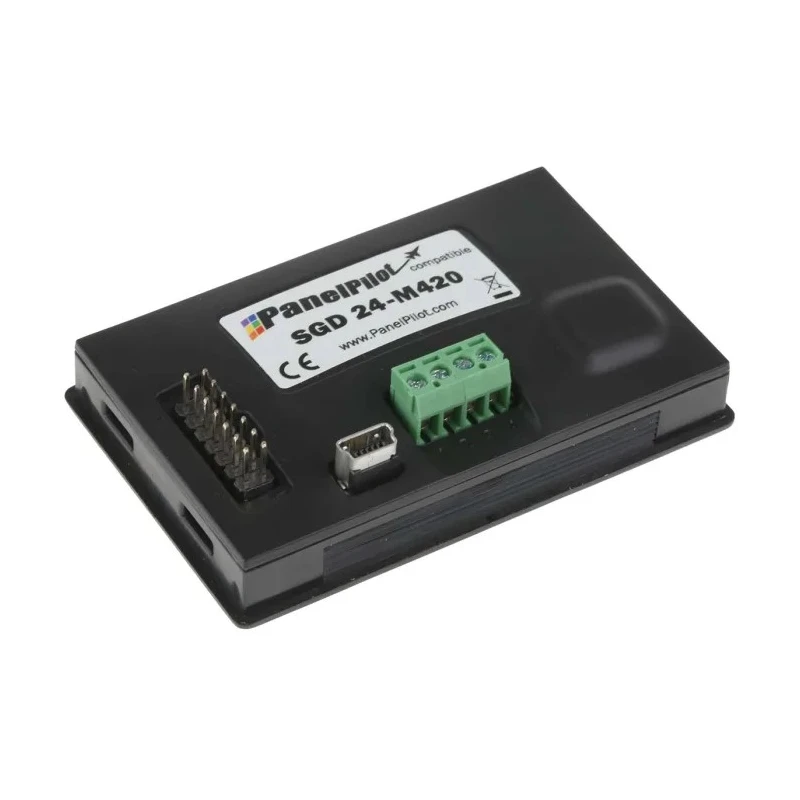

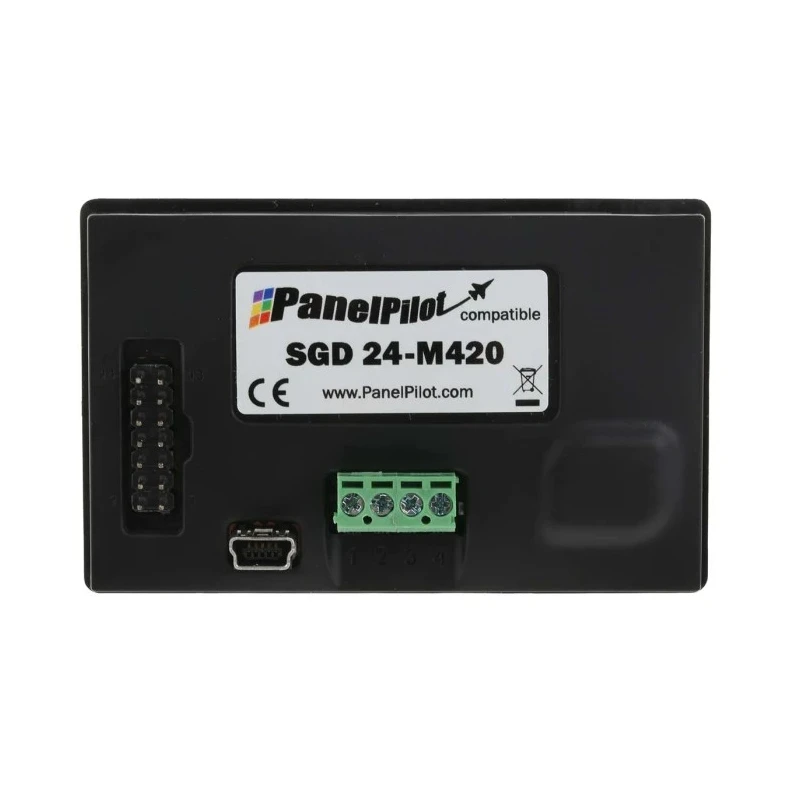

Lascar PanelPilot Digital Panel Multifunction Meter Current Measurement 2.4 Inch TFT Touchscreen Display SGD 24-M420

Lascar SGD 24-M420 Digital Panel Multifunction Meter is a precision instrument from the PanelPilot range designed for current measurement applications. Featuring a vivid 2.4 inch colour TFT touchscreen display, it offers users an intuitive interface with extensive customization options through the supplied PanelPilot software compatible with Windows 7, 8.1, and 10. The meter supports dual 4-20mA analog inputs and alarm outputs, enabling precise monitoring and control in varied industrial environments.

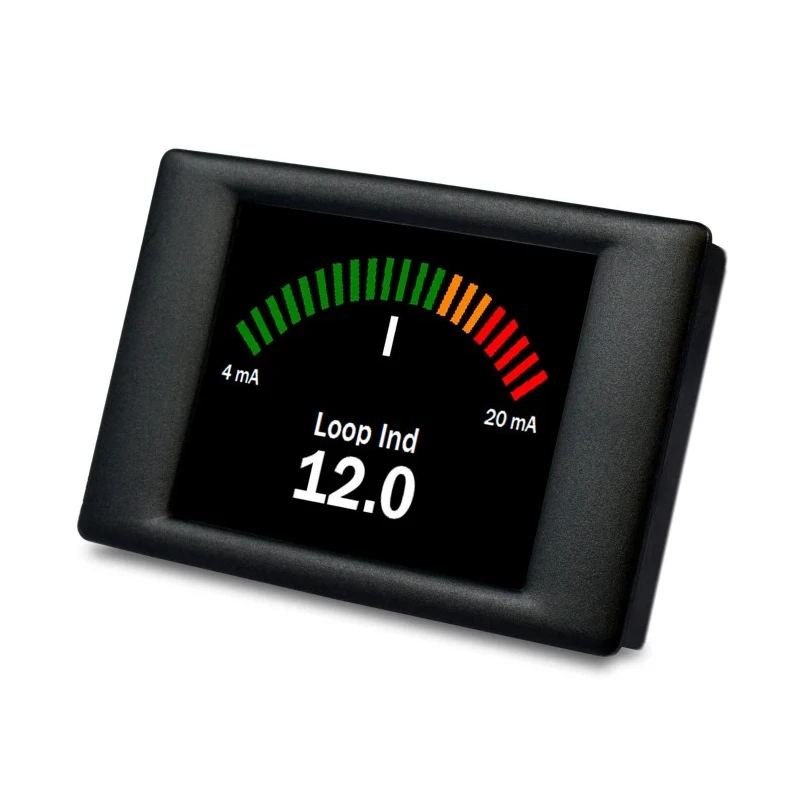

Its flexible display configurations include bar-graphs, tank level indicators, analog styles, and trend graphs, which can be customized with colors, text labels, units, and input scaling to suit specific process control needs. The device is powered by a low DC voltage supply ranging from 4 to 30 V, facilitating easy integration into existing control panels with a simple panel mounting solution.

Compact in size, the meter requires a panel cutout of 46 mm by 74 mm and has a depth of 16.4 mm, making it suitable for applications with limited panel space. Operating reliably within 0°C to 40°C, the meter is well suited for automotive, industrial automation, and test and measurement use cases.

The unit does not include specific certifications but meets required standards for industrial measurement instruments and is backed by Lascar's expertise in measurement solutions. It connects via a USB interface for effortless programming and configuration updates.

Applications include automotive systems monitoring, precise industrial process measurement, and laboratory or testing instrumentation where accurate current reading and customizable display parameters are needed. The SGD 24-M420 offers a professional-grade solution with user-friendly features to support diverse industrial environments.

The meter supports dual 4-20mA analog inputs for accurate current loop measurement. Configurable through free PanelPilot software with multiple display options including bar-graphs and trend graphs. Features alarm outputs and customizable units, colors, and labels for versatile monitoring.

Operates on a low voltage range of 4V to 30V DC with simple panel mounting. Ideal for applications in automotive, industrial, and test & measurement environments. Includes USB interface for configuration and programming convenience.

Designed to operate within 0°C to 40°C temperature range for reliable performance. Compact dimensions with cutout size 46 mm height by 74 mm width and 16.4 mm depth. Robust digital meter type with PanelPilot series compliance.
