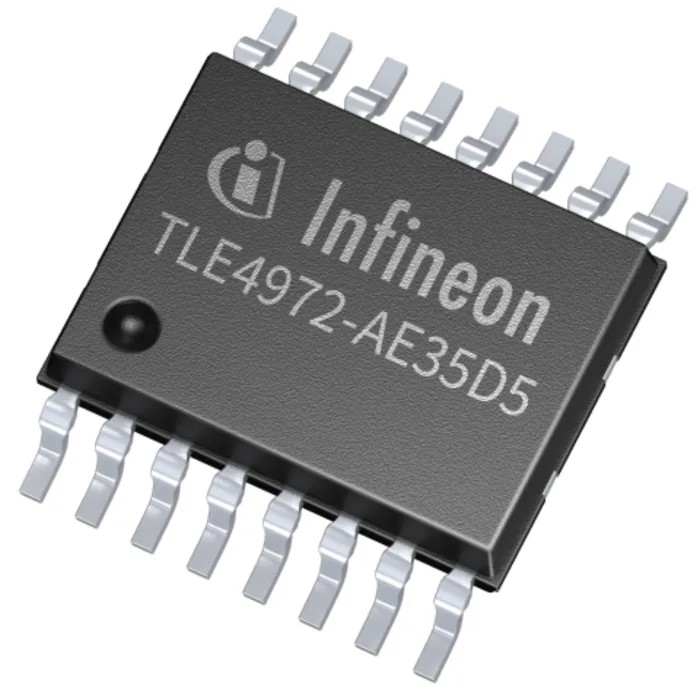

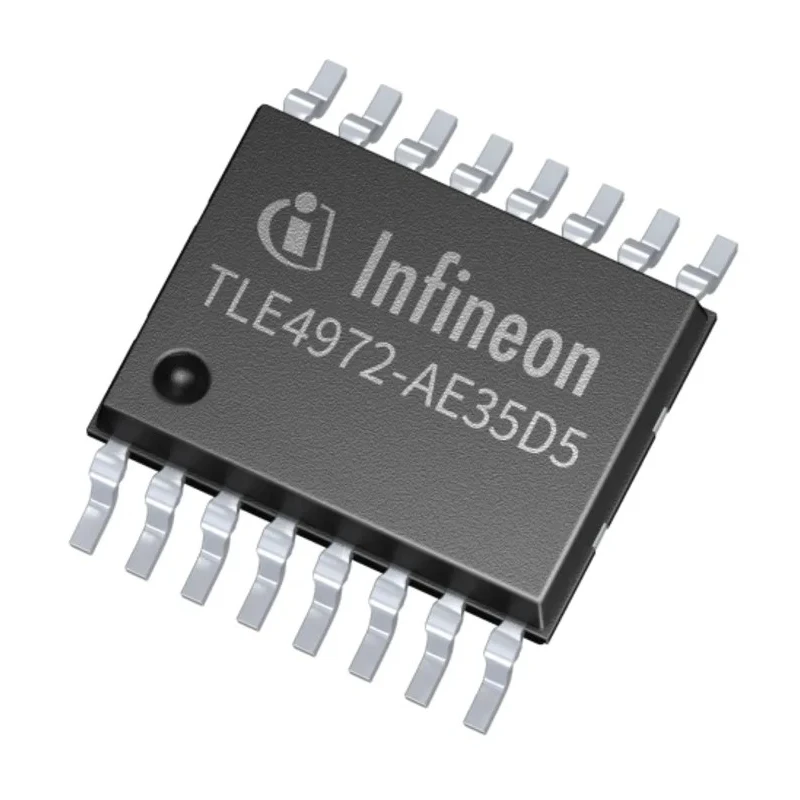

Infineon Current Sensor IC with 16-Pin PG-TDSO-16 Package TLE4972AE35D5XUMA1
Specifications
| Country of Origin | India |
|---|---|
| Brand | Infineon |
| Model | TLE4972AE35D5XUMA1 |
| Mount Type | Surface |
| Bandwidth | 48.2kHz |
| Series | TLE4972 |
| Maximum Operating Temperature | 160°C |
| Package Type | PG-TDSO-16 |
| Minimum Operating Temperature | -40°C |
| Offset Voltage | 1.65 V |
| Standards/Approvals | AEC Q100 and ISO 26262, RoHS |
| Pin Count | 16 |
| Automotive Standard | AEC-Q100 |
| Maximum Supply Voltage | 3.5V |
| Minimum Supply Voltage | 3.1V |
Key Features
- Supports AC and DC current sensing with analog output and dual over-current detection outputs.
- High accuracy with very low sensitivity error over temperature and lifecycle.
- Excellent offset voltage stability across full operating temperature range.
- High bandwidth of 48.2 kHz for fast response and low phase delay.
- Compact 16-pin PG-TDSO surface mount package for low insertion loss.
- Operates at 3.1 V to 3.5 V supply voltage for efficient power use.
- Complies with AEC-Q100 automotive standard and ISO 26262 functional safety.
- Suitable for industrial, automotive, laboratory, and HVAC applications.
Product Description
Infineon TLE4972AE35D5XUMA1 Current Sensor IC is a high precision miniature magnetic sensor featuring a coreless design for AC and DC current measurement. Packaged in a PG-TDSO-16 16-pin surface mount format, it boasts excellent accuracy and stability over a wide operating temperature range from -40°C up to 160°C.
The sensor provides an analog output interface alongside two fast over-current detection pins with typical response times of 0.7 μs. Its differential sensor principle offers superior suppression of magnetic stray fields, crucial for precise measurement in noisy industrial environments.
With a full-scale magnetic flux density capability up to 31 mT, this sensor can handle high current loads while maintaining low insertion resistance to reduce power losses. Its high bandwidth of 48.2 kHz enables fast reacting current sensing with minimal phase delay, optimizing control loop responsiveness.
Designed to meet automotive quality standards such as AEC-Q100 and comply with ISO 26262 functional safety requirements, this sensor IC is well-suited for automotive powertrain, battery management, and industrial automation applications.
Supports both AC and DC current measurement through a high-precision analog output. Two independent over-current detection outputs provide rapid system protection capability. Wide operating temperature range from -40°C to 160°C suits harsh industrial and automotive environments.
Compact PG-TDSO-16 package ensures low footprint and compatibility with surface mount assembly. Low supply voltage operation (3.1 V to 3.5 V) enables integration in low power systems. Meets RoHS compliance and automotive safety standards.
Ideal for applications in industrial automation, electric vehicle battery management, HVAC systems, and laboratory instrumentation.
This Infineon Current Sensor IC enables designers to implement reliable, high-accuracy current sensing solutions for safety-critical and high-performance applications. Explore more sensors and semiconductor components in our Electronics & Electricals category on EnvMart.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
This model operates within a temperature range of -40°C to 160°C, making it suitable for harsh industrial and automotive environments.
The bandwidth of the TLE4972AE35D5XUMA1 is 48.2 kHz, allowing for fast response and low phase delay in current sensing applications.
It provides an analog output interface along with two independent over-current detection outputs for rapid system protection.
The sensor operates at a supply voltage range of 3.1 V to 3.5 V, which facilitates integration into low power systems.
This model is packaged in a compact 16-pin PG-TDSO-16 surface mount format, ensuring low footprint and compatibility with surface mount assembly.
It complies with AEC-Q100 automotive standard and ISO 26262 functional safety requirements, as well as RoHS compliance.
The TLE4972AE35D5XUMA1 can handle a maximum magnetic flux density of up to 31 mT, suitable for high current loads.
It utilizes a differential sensor principle, which offers superior suppression of magnetic stray fields, crucial for precise measurement in noisy environments.
The offset voltage for this model is 1.65 V, contributing to its high accuracy and stability.
This sensor is well-suited for applications in industrial automation, electric vehicle battery management, HVAC systems, and laboratory instrumentation.
The typical response time for the over-current detection outputs is 0.7 μs, allowing for rapid system protection.
This current sensor IC features a pin count of 16, which is standard for its PG-TDSO-16 package.
