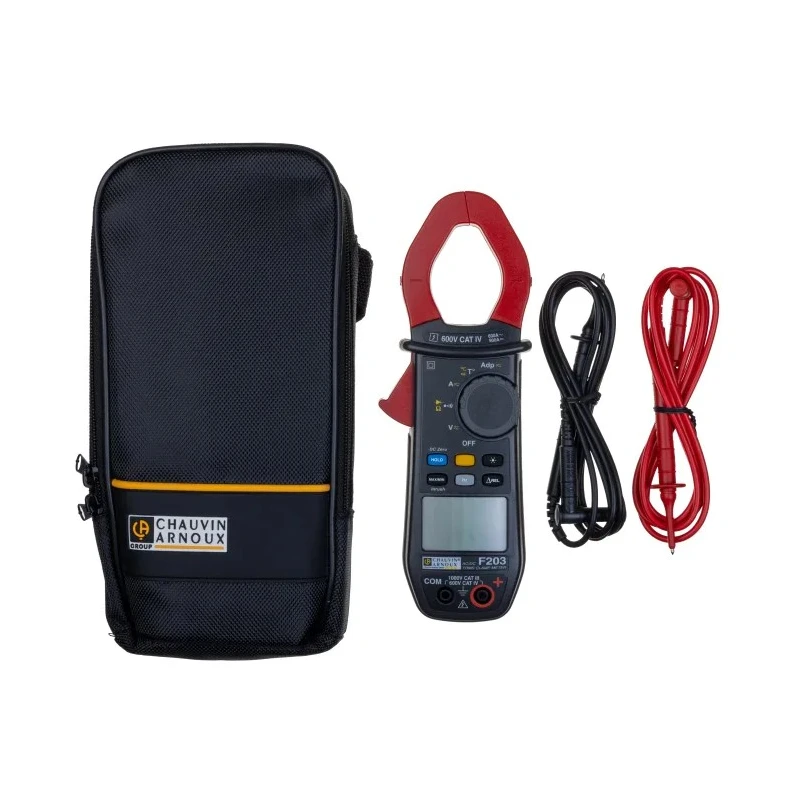

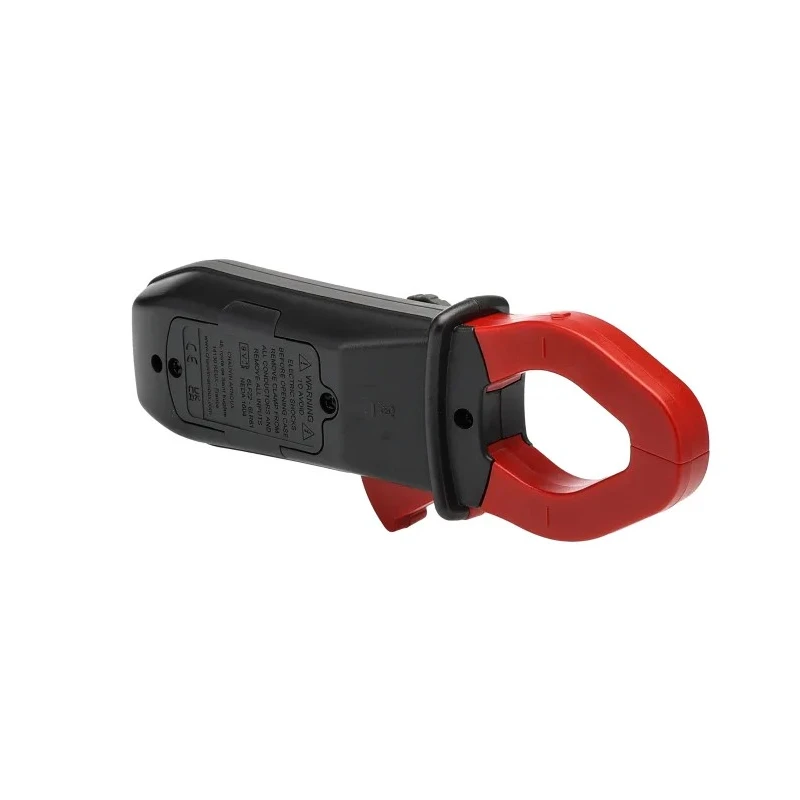

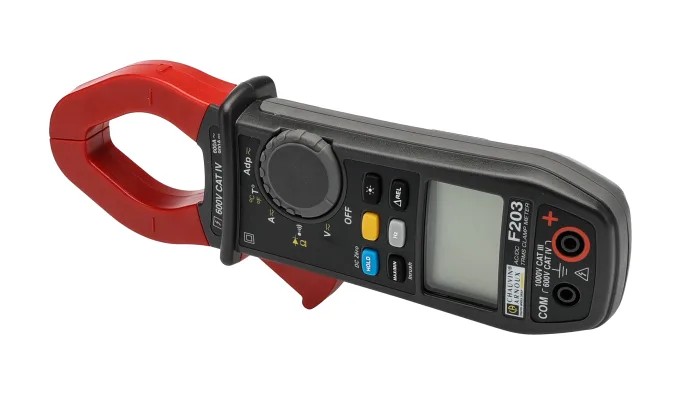

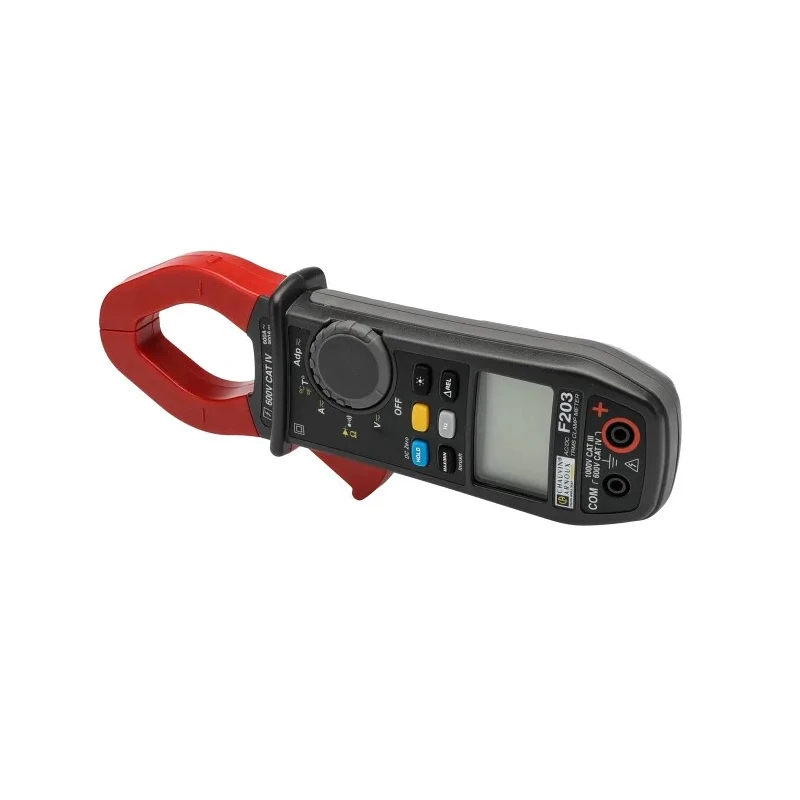

Chauvin Arnoux AC/DC True RMS Clamp Meter F203, 900 A DC, 1400 V DC, 1000 V AC, CAT IV P01120923

Chauvin Arnoux F203 AC/DC True RMS Clamp Meter is a versatile electrical test instrument designed for self-employed electricians, small and medium-sized businesses, and industries within the electrical sector. Featuring a fast 12-bit TRMS digital acquisition system, it accurately measures AC current, DC current, AC voltage, DC voltage, resistance, and temperature, making it suitable for industrial, laboratory, HVAC, and construction applications.

The clamp meter supports maximum DC current measurement of 900 A and AC voltage measurement up to 1000 V, with DC voltage measurement capability up to 1400 V. It provides resistance measurement with 100 mΩ resolution and can measure temperatures up to 1000°C. The device offers a maximum jaw opening of 34 mm, allowing measurements on various conductor sizes.

This model includes important safety features like CAT IV safety category rated for up to 600 V, ensuring safe operation in high-voltage environments. The LCD backlight display enhances visibility in dim conditions. It features IP54 protection against dust and water splashes, accommodating harsh industrial environments.

The meter functions include min and max analysis with relative and differential measurements, inrush current measurement, and an adapter function for additional testing capabilities. Battery type 6LR61 powers the unit, supporting approximately 130 hours of continuous operation.

The compact dimensions (222 mm height, 78 mm length, and 42 mm width) and weight of 340 g make this clamp meter highly portable and convenient for field use. Originating from China, it meets the expected standards and certifications of a reliable test and measurement instrument.

True RMS AC/DC Clamp Meter for precise electrical measurements. Wide measurement range covering current, voltage, resistance, and temperature. Ergonomic design with LCD backlight and IP54 protection rating. Safety rated CAT IV 600 V for industrial and commercial applications.

Long battery life and versatile functions for efficient electrical diagnostics.

This Chauvin Arnoux Clamp Meter is ideal for various sectors including industrial maintenance, electrical contracting, construction sites, laboratory environments, and HVAC servicing. Browse EnvMart for more professional measuring instruments and electrical test equipment from trusted brands.
