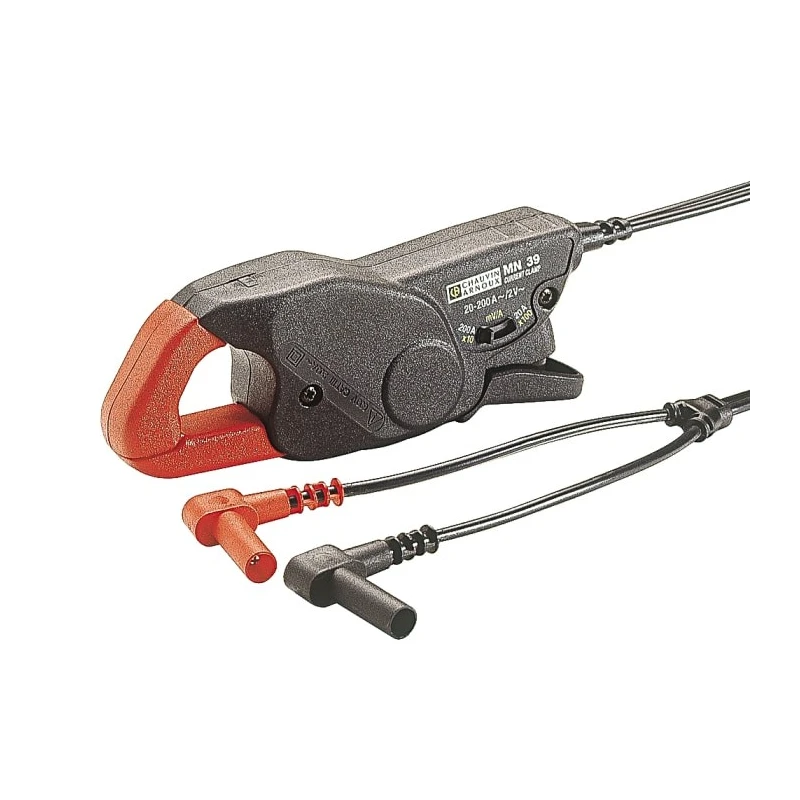

Chauvin Arnoux AC Current Clamp Adapter 240 A Max, Voltage Output P01120408

Free Delivery in India | Lowest Global Shipping Charges

Chauvin Arnoux AC Current Clamp Adapter 240 A Max, Voltage Output P01120408

Name: Chauvin Arnoux AC Current Clamp Adapter 240 A Max, Voltage Output P01120408
Brand: Chauvin Arnoux
SKU: 96128



Category Current Clamps Brand Chauvin Arnoux Condition New

Specifications

Country of Origin	France
Accuracy	±1 %
Brand	Chauvin Arnoux
Battery type	AA, LR6, Alkaline
Model	P01120408
Cable Length	1.5m
Connector Type	4 mm Plug
Output type	Voltage
Maximum Operating Temperature	55°C
Minimum Operating Temperature	-10°C
Adapter Type	AC
Safety Category Level	Aurix
Safety Category Voltage	600V
Conforms to	IEC1010-2-032 (safety standard) 600V Cat III
Maximum AC Current	240A
Maximum Conductor Size	20mm
Fluke I200 Current Clamp, AC Adapter, 240 A AC Max, Current OutputBrand	Fluke

Key Features

Rated for maximum AC current of 240 A with ±1% accuracy.
Suitable for conductors up to 20mm diameter.
Includes 1.5m cable with 4 mm plug connector.
Operates over a temperature range from -10°C to 55°C.
Powered by AA LR6 alkaline batteries.
Ergonomic jaw design facilitates measurements in restricted spaces and cable hooking.
Complies with IEC1010-2-032 safety standard, rated 600V Category III.
Output voltage limiter prevents unsafe levels if clamp output is open circuited.

Product Description

Chauvin Arnoux P01120408 AC Current Clamp Adapter is engineered for precise current measurement with a maximum AC current rating of 240 A and an accuracy of ±1%. It features an ergonomic jaw suitable for difficult cable access and supports conductors up to 20 mm in diameter. The 1.5-meter cable equipped with a 4 mm shrouded plug ensures compatibility with a wide range of multimeters and recording devices.

Powered by AA LR6 alkaline batteries, this clamp operates reliably in environments ranging from -10°C to 55°C. It conforms to the IEC1010-2-032 safety standard with a 600 V Category III rating, ensuring user safety during measurements in industrial and laboratory settings.

The clamp produces a voltage output, making it compatible with devices designed for voltage input measurement. Its output voltage limiter prevents dangerously high voltage if the output circuit is open, enhancing operational safety. This product's practical design and technical specifications make it ideal for industrial, laboratory, electrical maintenance, and HVAC applications where precise current measurement is essential.

Rated for maximum AC current of 240 A with ±1% accuracy. Suitable for conductors up to 20mm diameter. Includes 1.5m cable with 4 mm plug connector. Operates over a temperature range from -10°C to 55°C. Powered by AA LR6 alkaline batteries.

Ergonomic jaw design facilitates measurements in restricted spaces and cable hooking. Complies with IEC1010-2-032 safety standard, rated 600V Category III. Output voltage limiter prevents unsafe levels if clamp output is open circuited.

Designed for use with multimeters and recording instruments with voltage input ranges.

This Chauvin Arnoux current clamp adapter is widely used in industrial maintenance, electrical testing, HVAC systems, manufacturing quality control, and laboratory environments. It is a reliable tool for accurately measuring AC current without interrupting the circuit.

Explore more measuring instruments and current clamp adapters in the EnvMart collection for precise industrial and laboratory instrumentation solutions.
