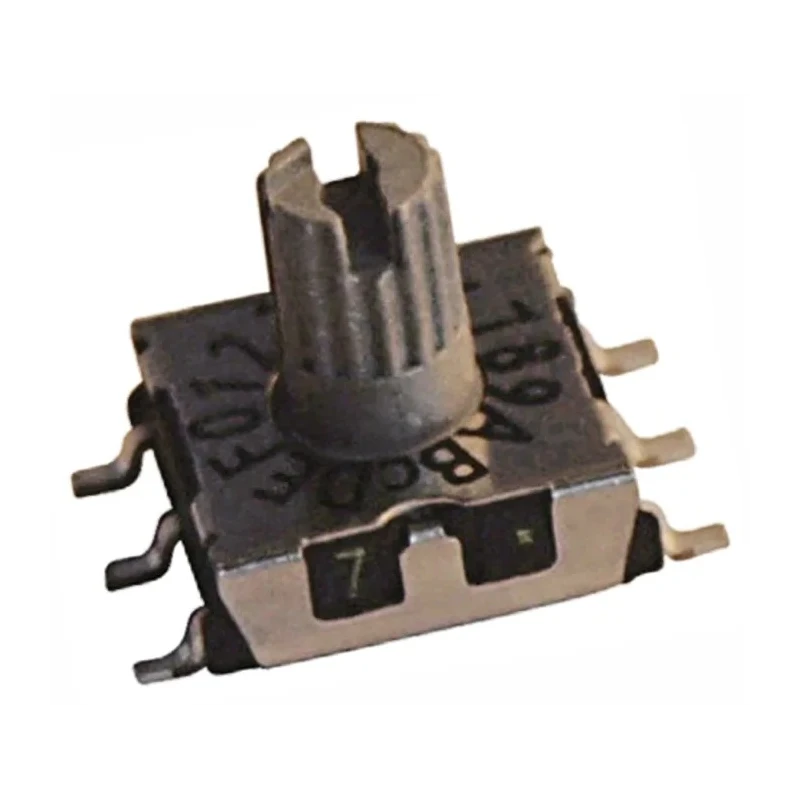

Hartmann Slotted Spindle Rotary Coded DIP Switch Surface Mount Through Hole P25SMT303
Specifications
| Country of Origin | India |
|---|---|
| Brand | Hartmann |
| Model | P25SMT303 |
| Mount Type | Surface |
| Series | P25 |
| Actuator Type | Slotted spindle |
| Terminal type | Through Hole |
| Footprint/pin spacing | 2.54mm between pins and 5.08mm between rows |
| Subminiature build | 2.5mm height, 7.0mm length |
Key Features
- The switch features a compact subminiature build with 2.5 mm height and 7.0 mm length dimensions.
- It integrates lateral C-contact design ensuring the common contact runs across the top for stable connection.
- Contacts are hard gold plated to provide low and stable contact resistance with abrasion resistance.
- Solid tinned PCB pins facilitate easy and reliable PCB mounting with standard pin spacings.
- The footprint offers 2.54 mm spacing between pins and 5.08 mm between rows for compatibility with industry-standard PCB layouts.
- The switch series is known for a precise detent mechanism that simplifies operation and fast setting changes.
Product Description
Hartmann P25SMT303 Rotary Coded DIP Switch is a subminiature rotary coded switch designed for surface mount applications and equipped with a slotted spindle actuator and through hole terminal type. The device is part of the P25 series which is known for robust and precise switching functionality suitable for various industrial and electronic equipment.
This P25 series switch features a very compact construction measuring only 2.5 mm in height and 7.0 mm in length. Its lateral C-contact system ensures reliable connectivity by having the common contact accessible at the top. The hard gold plating on the contacts provides long-lasting low resistance and durability against abrasion, making it ideal for demanding environments.
The switch pins are solid tinned PCB type conducive for stable soldering and mounting on circuit boards. The pin pitch is 2.54 mm between individual pins and 5.08 mm between rows, conforming to common PCB design standards and simplifying the manufacturing process.
Operation is facilitated by the clearly visible figures on the dial and a precise detent mechanism that ensures fast and positive position setting. These features make the switch appropriate for control panels, automation systems, instrumentation, and other electronic equipment requiring dependable rotary coded input.
The compact size benefits space-constrained designs in industrial controls and consumer electronics. The subminiature footprint supports lightweight assembly and compact PCB layouts. Hard gold plating prolongs operational life even under frequent switching cycles.
Through hole mounting assures mechanical stability within various housing types. Surface mount compatibility enables flexible board assembly options. Ideal for industrial, automation, electronic, and instrumentation applications.
This Rotary Coded DIP Switch is widely used in industrial automation, electronic instrumentation, control systems, and other commercial electrical devices where a reliable and compact rotary switch is essential. Its robust build and precise operation ensure dependable performance in demanding scenarios.
Explore more high-quality switches and components in the Electronics & Electricals category at EnvMart.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
This model features a compact subminiature build with a height of 2.5 mm and a length of 7.0 mm.
It supports surface mounting and is designed with through hole terminal type for stable PCB mounting.
The pin spacing is 2.54 mm between individual pins and 5.08 mm between rows, conforming to common PCB design standards.
It uses a slotted spindle actuator, which facilitates easy operation and position setting.
The contacts are hard gold plated, providing low and stable contact resistance along with abrasion resistance.
This model is part of the P25 series, known for its robust and precise switching functionality.
It is suitable for industrial automation, electronic instrumentation, control systems, and other commercial electrical devices.
The switch features a precise detent mechanism that ensures fast and positive position setting, simplifying operation.
The switch is manufactured in India.
It uses solid tinned PCB pins for reliable soldering and mounting on circuit boards.
Its hard gold plating, precise detent mechanism, and stable mounting design contribute to its reliability in demanding environments.
Yes, its footprint with 2.54 mm pin spacing and 5.08 mm row spacing ensures compatibility with industry-standard PCB layouts.
