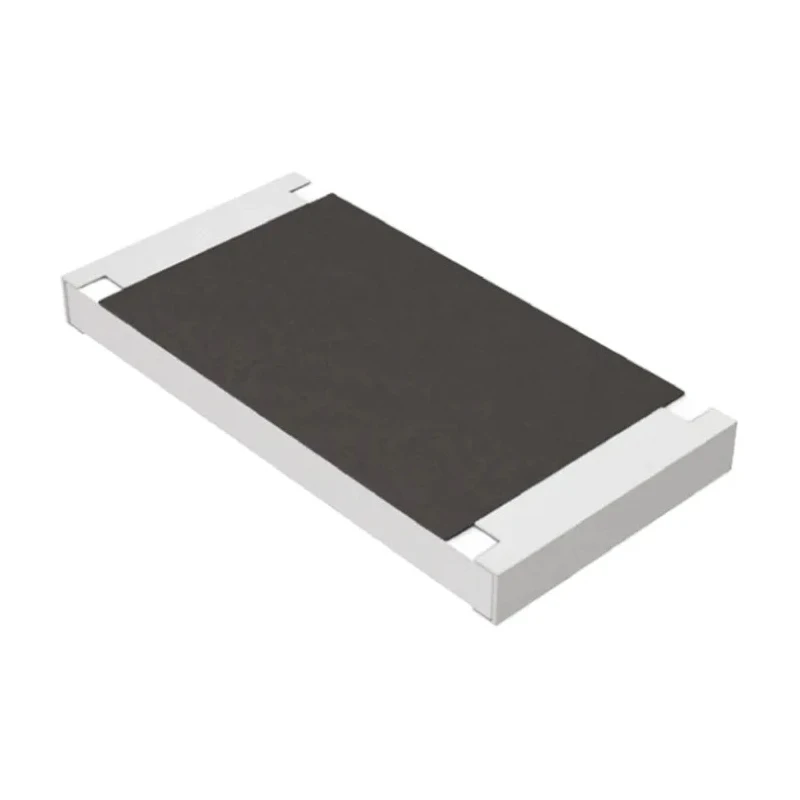

Panasonic Non-Resettable Fuse 1.5A, 32V DC Fast Acting Alumina Substrate ERBRD1R50X
Specifications
| Country of Origin | Japan |
|---|---|
| Brand | Panasonic |
| Body Material | Alumina Substrate |
| Height | 0.39mm |
| Model | ERBRD1R50X |
| Depth | 1mm |
| Series | Micro Chip Fuse |
| Maximum Operating Temperature | 125°C |
| Resistance | 70mΩ |
| Package Type | Tape |
| Minimum Operating Temperature | -40°C |
| Package Size | 0402 |
| Breaking Capacity | 300A |
| Standards/Approvals | UL 248-14, RoHS |
| Fuse Characteristics | Fast Acting |
Key Features
- Constructed with alumina substrate ensuring thermal stability.
- Micro chip fuse design in a compact 0402 tape package size.
- Fast acting fuse characteristic with breaking capacity of 300 amps.
- Operates reliably from -40°C up to 125°C maximum temperature.
- Compliant with UL 248-14 and RoHS standards for safety and environmental requirements.
- Resistance is approximately 70 milli-ohms suited for low voltage applications.
Product Description
Panasonic ERBRD1R50X is a high reliability non-resettable micro chip fuse designed for low voltage DC circuit protection at 1.5A current and 32V DC voltage rating. It features a fast acting fuse characteristic ensuring quick response to overcurrent conditions, protecting critical components such as silicon ICs found in alarm systems, audio/visual equipment, computer boards, and medical apparatus.
This fuse uses an alumina substrate body material for excellent thermal tolerance and stability with dimensions of approximately 0.39mm in height and 1mm in depth, packaged in a space-saving 0402 tape format ideal for surface mount technology (SMT) assembly lines, improving production efficiency.
The breaking capacity of the fuse is rated at 300A, allowing it to handle high fault currents safely. It is suitable for operating temperatures ranging from -40°C minimum up to 125°C maximum, making it reliable for harsh environmental conditions.
Panasonic assures compliance with UL 248-14 and RoHS environmental standards, guaranteeing product safety and reduction of hazardous substances. The fuse resistance is about 70 milliohms, optimized for stable electronic circuit integration.
Typical industrial applications include electronic device protection in industrial automation, audio/video equipment, telecommunications, computer hardware, and power supply circuits requiring dependable overcurrent protection.
Constructed with alumina substrate ensuring thermal stability. Micro chip fuse design in a compact 0402 tape package size. Fast acting fuse characteristic with breaking capacity of 300 amps. Operates reliably from -40°C up to 125°C maximum temperature.
Compliant with UL 248-14 and RoHS standards for safety and environmental requirements. Resistance is approximately 70 milli-ohms suited for low voltage applications.
This fuse is made in Japan, demonstrating Panasonic's commitment to high manufacturing quality. For a broad range of electronics manufacturing and maintenance requirements, this Non-Resettable Fuse offers dependable, space-efficient protection.
Explore more quality fuses and circuit protection products at EnvMart for your industrial and commercial needs.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The maximum operating temperature for this fuse is 125°C.
This model has a breaking capacity of 300 amps, allowing it to handle high fault currents safely.
The fuse has a height of approximately 0.39mm and a depth of 1mm, packaged in a 0402 tape format.
The resistance of this fuse is approximately 70 milli-ohms, making it suitable for low voltage applications.
It is compliant with UL 248-14 and RoHS standards for safety and environmental requirements.
The minimum operating temperature for this fuse is -40°C.
The fuse is constructed with an alumina substrate, ensuring thermal stability.
This fuse is suitable for protecting electronic devices in applications such as industrial automation, audio/video equipment, telecommunications, and computer hardware.
The Panasonic ERBRD1R50X features a fast acting fuse characteristic, ensuring quick response to overcurrent conditions.
This model is packaged in a tape format, specifically a compact 0402 size, ideal for surface mount technology (SMT) assembly.
This fuse is made in Japan, reflecting Panasonic's commitment to high manufacturing quality.
This non-resettable fuse is designed for low voltage DC circuit protection at 1.5A current and 32V DC voltage rating, protecting critical components.
