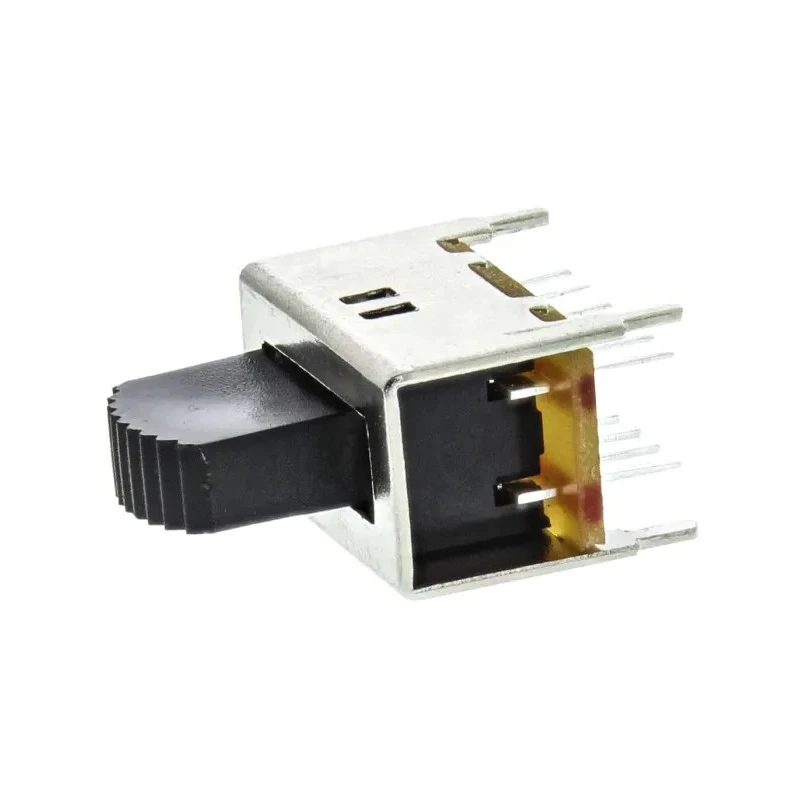

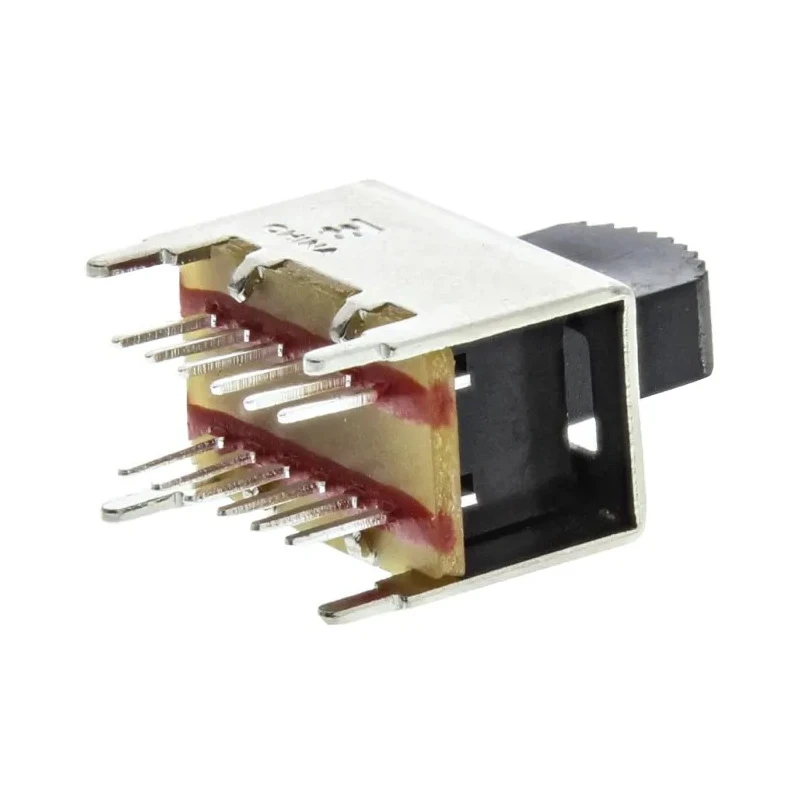

TE Connectivity 4PDT PCB Slide Switch Latching 300mA Polyoxymethylene 1825264-1
Specifications
| Country of Origin | India |
|---|---|
| Brand | TE Connectivity |
| Length | 15mm |
| Depth | 18mm |
| Width | 9.4mm |
| Mount Type | PCB |
| Series | MSS4200 |
| Maximum Operating Temperature | 85°C |
| Contact Configuration | 4PDT |
| Switch Configuration | On-On |
| Minimum Operating Temperature | -20°C |
| Terminal type | Solder |
| Standards/Approvals | UL, RoHS |
| Switch Operation | Latching |
| Contact DC Voltage | 115V dc |
| Switch Contact Current | 300mA |
| Mechanical Life | 15000Cycles |
| Contact AC Voltage | 125V ac |
| Actuator Material | Polyoxymethylene |
Key Features
- Features a 4PDT contact configuration for complex circuit control.
- Mounts on PCB via through-hole solder terminals for secure connections.
- Designed with latching switch operation to maintain position until toggled.
- Supports switch contact current of 300mA suitable for low power applications.
- Operates at a DC voltage of 115V and AC voltage of 125V for versatile usage.
- Constructed with polyoxymethylene actuator for reliable mechanical performance.
- Mechanical life rated for 15000 cycles ensuring durability in repeated use.
- Meets UL and RoHS standards for safety and environmental compliance.
Product Description
TE Connectivity 1825264-1 4PDT PCB Slide Switch is designed for reliable latching switch applications with a switch contact current of 300mA. Its robust polyoxymethylene actuator ensures durable mechanical performance over extended use.
This slide switch utilizes a 4-pole double throw (4PDT) contact configuration, enabling complex circuit switching on printed circuit boards.
Mount type is PCB through-hole with solder terminals to guarantee a stable electrical connection. The switch configuration is On-On with latching operation to retain the selected state until manually changed.
Operating voltage ratings are 115V DC and 125V AC, suitable for low to moderate voltage electronic devices. The component measures 15mm in length, 9.4mm in width, and 18mm in depth, making it compact for integration in electronic assemblies.
Mechanical life expectancy of 15000 cycles underscores the switch’s reliability for industrial, electronic, and automation system use cases. Temperature operation ranges from -20°C minimum up to a maximum of 85°C, allowing use in varied environments.
Features a 4PDT contact configuration for complex circuit control. Mounts on PCB via through-hole solder terminals for secure connections. Designed with latching switch operation to maintain position until toggled. Supports switch contact current of 300mA suitable for low power applications.
Operates at a DC voltage of 115V and AC voltage of 125V for versatile usage. Constructed with polyoxymethylene actuator for reliable mechanical performance. Dimensions are compact at 15mm length, 9.4mm width, and 18mm depth.
Mechanical life rated for 15000 cycles ensuring durability in repeated use. Meets UL and RoHS standards for safety and environmental compliance. Operates reliably between temperatures of -20°C to 85°C.
This TE Connectivity slide switch is ideal for electronics manufacturing, automation controls, instrumentation, and industrial machinery PCB applications. Choose this high-quality component to ensure electrical durability and precise switching functionality.
Explore more top-quality slide switches and electronic components on EnvMart to enhance your technical projects and production efficiency.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
This model features a 4PDT (4-pole double throw) contact configuration, allowing for complex circuit control.
It operates at a DC voltage of 115V and an AC voltage of 125V, making it suitable for low to moderate voltage applications.
The switch supports a contact current of 300mA, which is appropriate for low power applications.
The mechanical life of this slide switch is rated for 15,000 cycles, indicating its reliability for repeated use.
This unit measures 15mm in length, 9.4mm in width, and 18mm in depth, making it compact for PCB integration.
It mounts on a PCB via through-hole solder terminals, ensuring secure electrical connections.
The switch operates reliably within a temperature range of -20°C to 85°C.
The actuator is constructed from polyoxymethylene, providing reliable mechanical performance.
It features a latching switch operation, which maintains its position until toggled manually.
This model meets UL and RoHS standards for safety and environmental compliance.
It is ideal for electronics manufacturing, automation controls, instrumentation, and industrial machinery PCB applications.
The terminal type is solder, designed for secure connections on printed circuit boards.
