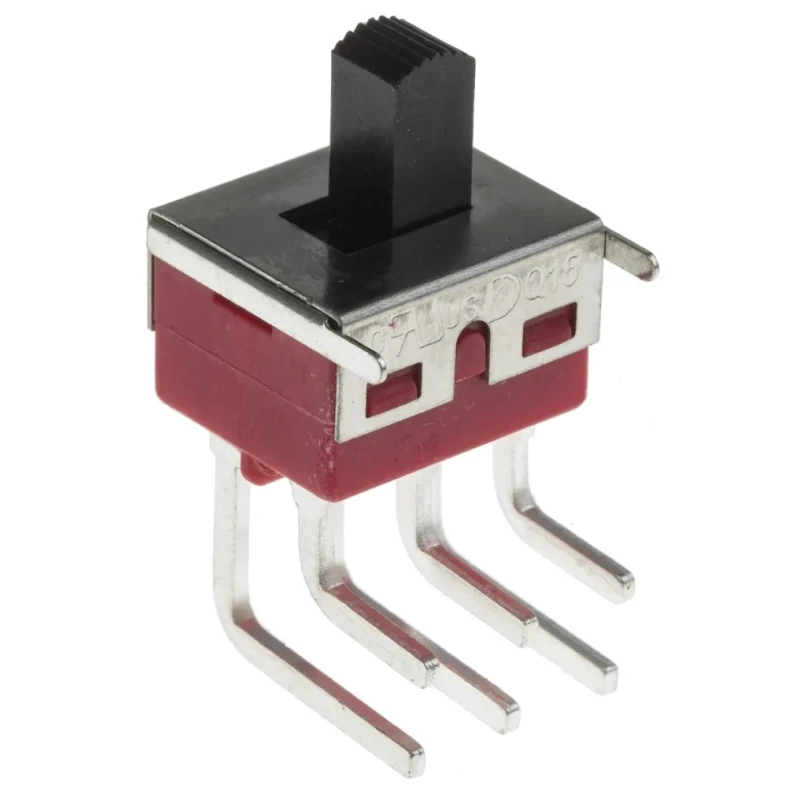

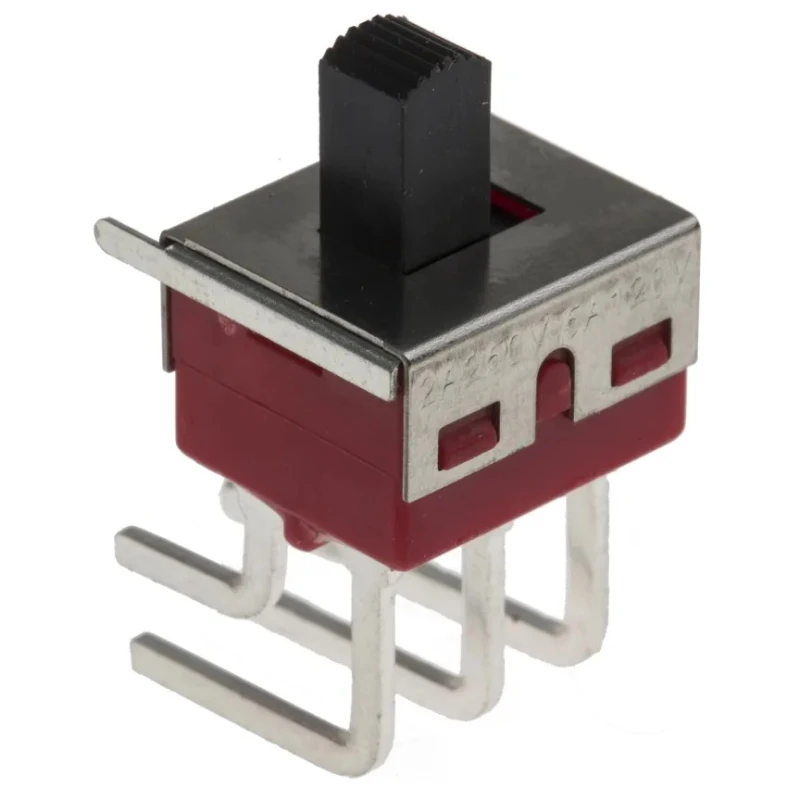

RS PRO PCB Slide Switch DPDT Latching 5A Silver Plated Brass 734-7274

RS PRO 734-7274 is a PCB Slide Switch featuring a DPDT (Double Pole Double Throw) contact configuration with a latching switch operation rated for 5A current.

This miniature slide switch is designed for robust and reliable performance on printed circuit boards, making it ideal for electronic, instrumentation, telecommunications, and white goods applications.

The switch actuator is made of silver plated brass providing enhanced durability and corrosion resistance, and the body is constructed for stability with a black nylon actuator, DAP case, and stainless steel housing.

The compact size with dimensions of 12.7mm length and 11.43mm width allows easy integration into PCB layouts. It operates effectively in temperature ranges from -30°C to 85°C and offers a mechanical life expectancy of 30000 cycles ensuring long-term reliability.

This switch supports through-hole mounting and features an On-None-On configuration, providing two stable on positions with a neutral off state between them for flexible circuit control.

Manufactured as part of the RS PRO series, it complies with RoHS directives, making it compliant with environmental safety standards.

Typical uses include PCB or front panel control in handheld products, medical devices, IT and telecommunications equipment, and other electronic assemblies requiring reliable switching functionality.

Double Pole Double Throw contact configuration ensures reliable operation. Latching switch operation provides stable switching functionality. 5 Ampere switch contact current rating supports moderate electrical loads. Compact design with 12.7mm length and 11.43mm width suitable for PCB mounting.

Silver plated brass actuator ensures durability and corrosion resistance. Mechanical life of 30000 cycles offers long-lasting performance. Operates within temperature range from -30°C to 85°C for versatile environments. On-None-On switch configuration enables versatile control options.

Through-hole terminal type supports secure PCB connections. Complies with RoHS standards for environmental compatibility. Explore the broad range of high-quality switches and electronic components available from RS PRO at EnvMart for dependable industrial and commercial electronic designs.
