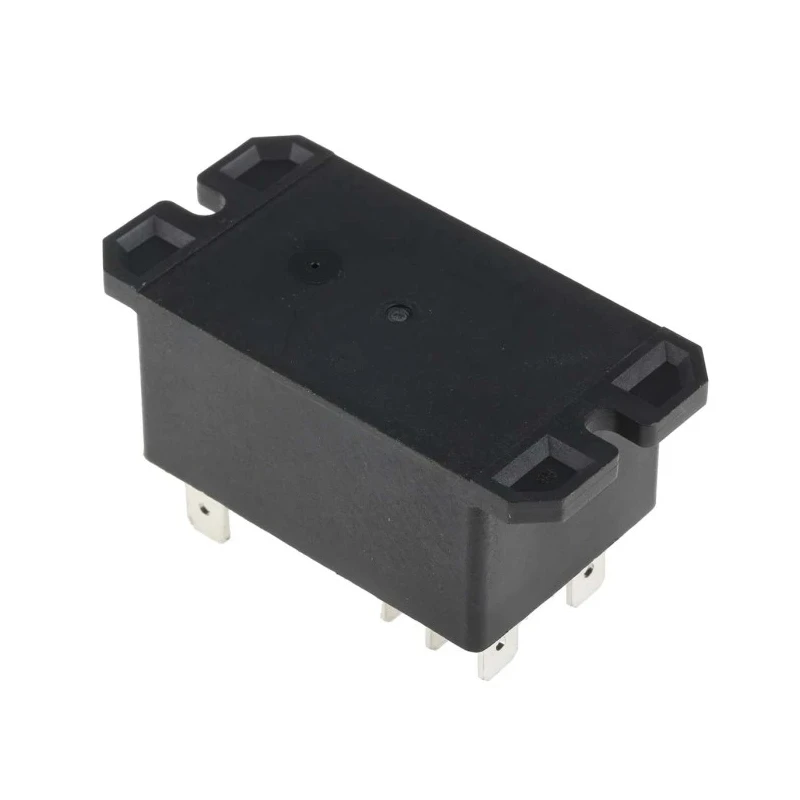

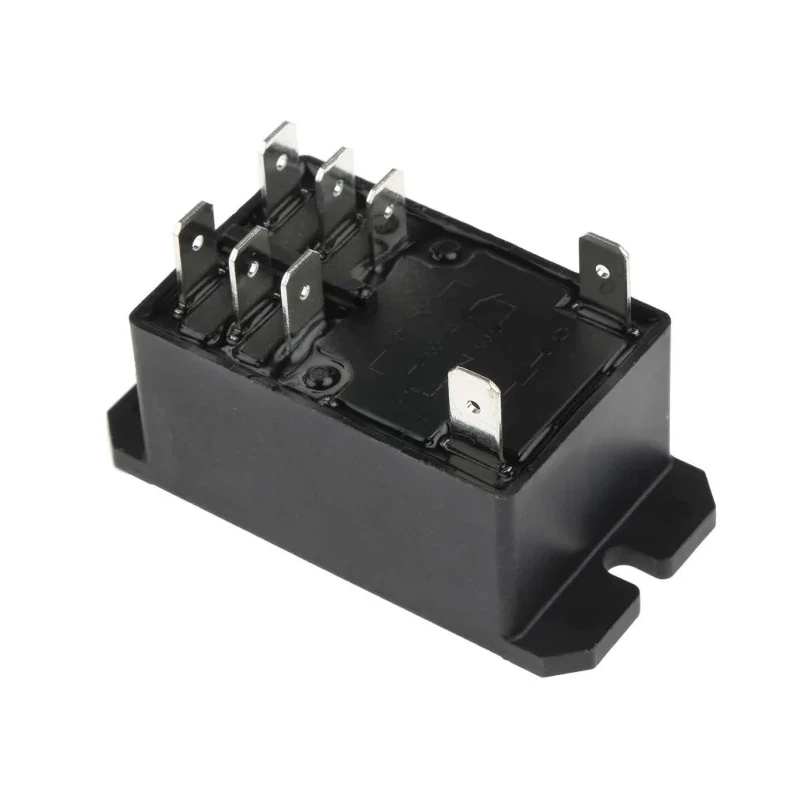

TE Connectivity Flange Non-Latching Relay 240V AC Coil 30A Switching Current DPDT T92P11A22-240 4-1393211-4
Specifications
| Country of Origin | China |
|---|---|
| Brand | TE Connectivity |
| Operating Temperature | -40°C to +65°C |
| Height | 38mm |
| Length | 68.6mm |
| Model | T92P11A22-240 4-1393211-4 |
| Width | 34.5mm |
| Mount Type | Flange |
| Contact Material | Silver Alloy |
| Series | T92 |
| Maximum Operating Temperature | 65°C |
| Contact Configuration | DPDT |
| Minimum Operating Temperature | -55°C |
| Switching Current | 30A |
| Terminal type | Quick Connect |
| Standards/Approvals | RoHS |
| Coil Resistance | 3.8kΩ |
| Coil Voltage | 240V ac |
| Switching AC Voltage | 600V ac |
| Coil Power | 1.7W |
Key Features
- Operates with a 240V AC coil voltage for reliable switching.
- Double Pole Double Throw (DPDT) contact configuration supports versatile circuit control.
- Flange mounting with quick connect terminals for easy installation.
- Switching current rating of 30A suitable for compressor and motor load control.
- Compact size measuring 68.6mm length, 38mm height, and 34.5mm width.
- Coil resistance of 3.8 kΩ with 1.7W coil power consumption.
- High switching voltage capacity up to 600V AC ensuring robust performance.
- Contact material made of silver alloy for durability and conductivity.
Product Description
TE Connectivity T92P11A22-240 4-1393211-4 flange non-latching relay features a 240V AC coil and a 30A switching current capacity with DPDT (Double Pole Double Throw) contact configuration.
Specifically designed for industrial, electrical, and automation control systems, this relay provides reliable switching for compressor loads up to 3.5 tons and 25.3 FLA motor operations.
The flange mount with quick connect terminals allows for secure yet simple installation in various panel and equipment configurations.
This relay conforms to UL 873 and UL 508 spacing standards with .315in (8mm) through air and .375in (9.5mm) over surface spacing, ensuring safe electrical clearances in compliance with industry regulations. It also meets VDE 8mm spacing and 4kV dielectric withstand voltage requirements between coil and contacts.
Constructed with silver alloy contacts and designed for UL Class F insulation and VDE approvals, the relay guarantees durability and stable operation in harsh environments with operating temperatures ranging from -40°C to +65°C.
240V AC coil voltage for consistent actuation. DPDT contact configuration enabling versatile switching schemes. 30A switching current handling suitable for motor and compressor control applications. Complies with RoHS environmental standards.

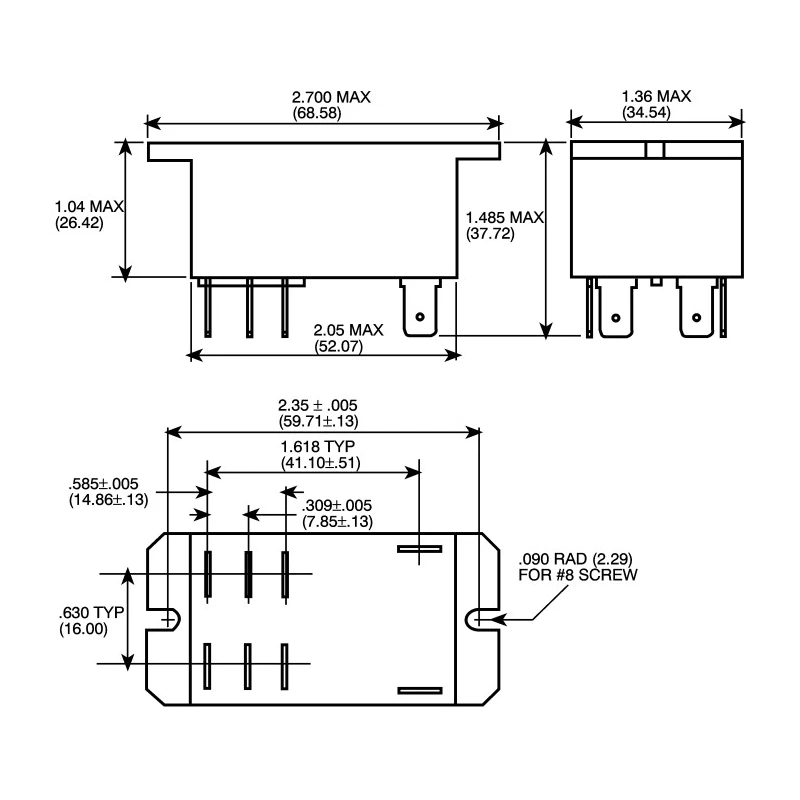

Compact dimensions fit within a 68.6mm length by 38mm height by 34.5mm width envelope. Quick connect terminal type for efficient wiring. Coil resistance is 3.8 kΩ and coil power is 1.7 W for optimized energy consumption.
Supports switching voltage up to 600V AC for high-power applications. Silver alloy contact material ensures long life and excellent conductivity. Wide operating temperature range from -40°C to +65°C to withstand varying field conditions.
This relay is widely used in electrical panels, automation machinery, HVAC systems, industrial control panels, and manufacturing equipment. It is a critical component in controlling motors, compressors, and large electrical loads with high efficiency and safety.
Explore more industrial Relays and power control components in the Electronics & Electricals category at EnvMart for optimized system design.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
This relay has a switching current capacity of 30A, making it suitable for controlling motors and compressors.
The coil voltage for this model is 240V AC, which is required for its operation.
It features a Double Pole Double Throw (DPDT) contact configuration, allowing for versatile circuit control.
The relay measures 68.6mm in length, 38mm in height, and 34.5mm in width.
It can handle a maximum switching voltage of 600V AC, suitable for high-power applications.
The coil resistance is 3.8 kΩ, which affects its power consumption and operational efficiency.
The coil power consumption is 1.7W, indicating the energy required for its operation.
The contacts are made of silver alloy, which provides good conductivity and durability.
This relay operates within a temperature range of -40°C to +65°C, allowing it to function in various environments.
It uses flange mounting with quick connect terminals, facilitating easy installation.
This relay complies with RoHS environmental standards and conforms to UL 873 and UL 508 spacing standards.
It is widely used in electrical panels, automation machinery, HVAC systems, and industrial control panels, particularly for controlling motors and compressors.
