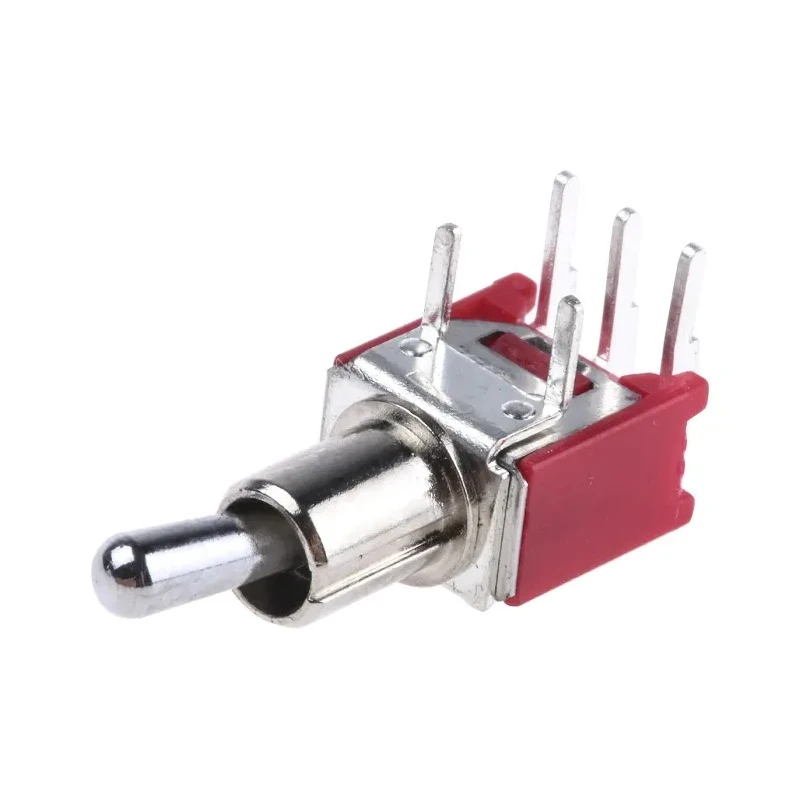

RS PRO Toggle Switch, PCB Mount, On-On, SPDT, Through Hole Terminal, 15 V dc, 240 V ac 734-7220
Specifications
| Country of Origin | India |
|---|---|
| Brand | RS PRO |
| Model | 734-7220 |
| IP Rating | IP56, IP66 |
| Mount Type | PCB |
| Series | RS PRO |
| Maximum Operating Temperature | 85°C |
| Contact Configuration | SPDT |
| Switch Configuration | On-On |
| Minimum Operating Temperature | -30°C |
| Panel Cutout Size | 4.95 mm |
| Terminal type | Through Hole |
| Standards/Approvals | RoHS & Lead Free |
| Switch Operation | On-On |
| Actuator Length | 5.33mm |
| Contact DC Voltage | 15V dc |
| Switch Contact Current | 3A |
| Mechanical Life | 30000Cycles |
| Contact AC Voltage | 240V ac |
| Actuator Material | Chrome Plated Brass |
Key Features
- Compact sub-miniature design suitable for PCB mounting.
- On-On SPDT contact configuration provides dual switch positions.
- Supports a switch contact current of 3A for reliable operation.
- Features through-hole terminals for secure soldered connections.
- Rated for operation between -30°C to 85°C temperature range.
- Actuator made from chrome plated brass with a length of 5.33mm.
- Ingress protection ratings IP56, IP66 for environmental resistance.
- Mechanical life expectancy of 30,000 operating cycles.
Product Description
RS PRO 734-7220 toggle switch is a sub-miniature On-On SPDT type designed for PCB mounting, rated at 15 V dc and 240 V ac, ideal for switching electrical circuits in industrial and electronic applications.
This switch provides a robust switching solution with a contact current capacity of 3A and a mechanical life of 30,000 cycles, ensuring long-lasting performance. The device features through-hole terminals that facilitate secure soldering onto printed circuit boards, making it suitable for automated assembly processes.
Its actuator is constructed from chrome plated brass, measuring 5.33 mm in length, providing durability and ease of manual operation.
The RS PRO 734-7220 toggle switch is IP56 and IP66 rated, offering dependable protection against dust and water ingress, suitable for use in demanding industrial, automation, and electrical equipment environments.
Compact sub-miniature design suitable for PCB mounting. On-On SPDT contact configuration provides dual switch positions. Supports a switch contact current of 3A for reliable operation. Features through-hole terminals for secure soldered connections.
Rated for operation between -30°C to 85°C temperature range. Actuator made from chrome plated brass with a length of 5.33mm. Ingress protection ratings IP56, IP66 for environmental resistance. Mechanical life expectancy of 30,000 operating cycles.
Complies with RoHS and lead free requirements. This toggle switch is commonly used across electronics, automation, and electrical assembly industries requiring compact, durable switching components on circuit boards. Explore all RS PRO Toggle Switches and related components in the Electronics & Electricals category at EnvMart for efficient sourcing and technical support.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The toggle switch features an On-On SPDT (Single Pole Double Throw) contact configuration, providing dual switch positions.
This toggle switch can operate at a maximum temperature of 85°C.
It supports a switch contact current of 3A for reliable operation.
The switch has ingress protection ratings of IP56 and IP66, offering resistance against dust and water ingress.
The actuator is made from chrome plated brass and has a length of 5.33 mm.
The mechanical life expectancy is rated at 30,000 operating cycles.
The toggle switch is rated for a contact DC voltage of 15V and a contact AC voltage of 240V.
It features through-hole terminals, which facilitate secure soldering onto printed circuit boards.
The minimum operating temperature is -30°C.
Yes, it complies with RoHS and lead-free requirements.
The required panel cutout size for this toggle switch is 4.95 mm.
The toggle switch is manufactured in India.
