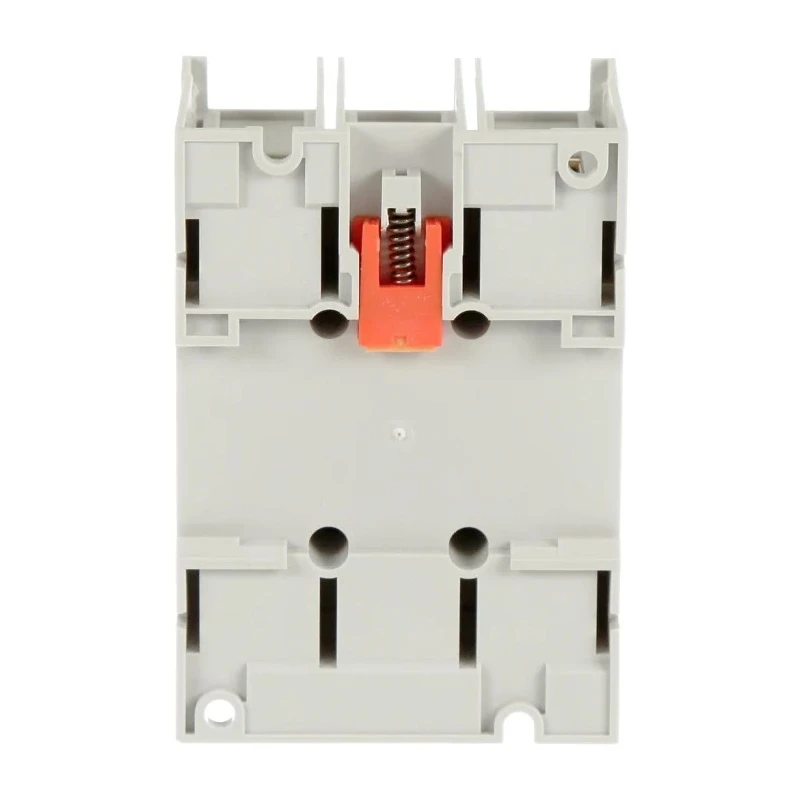

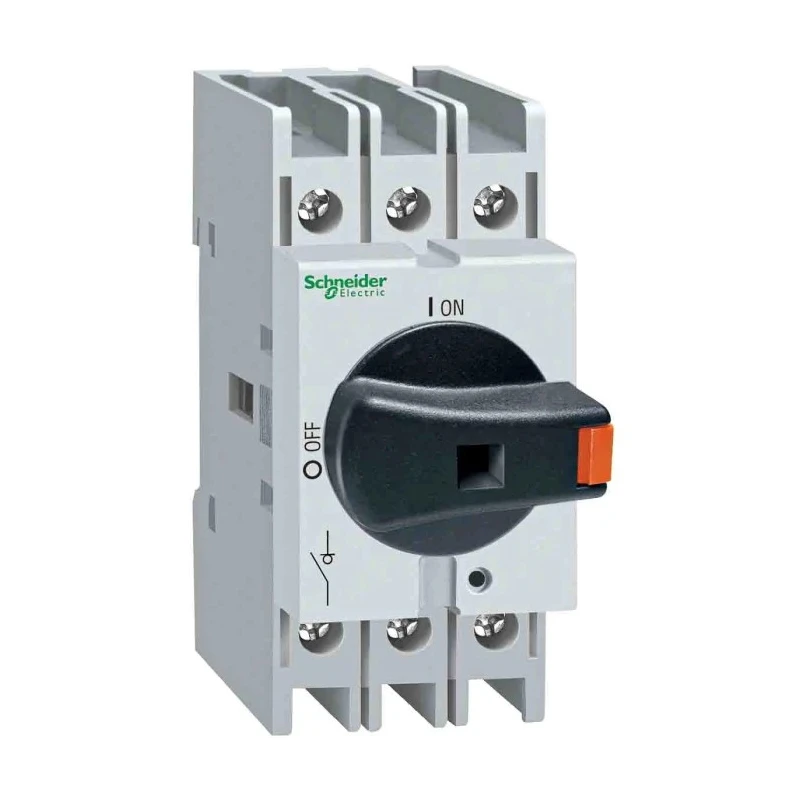

Schneider Electric 3-Pole DIN Rail Isolator Switch, IP20, 63A, 45kW VLS3P063R2

Schneider Electric VLS3P063R2 3-Pole DIN Rail Isolator Switch is a high-quality electrical isolation device rated at 63 Amps with an IP20 ingress protection rating, designed for 3-phase power systems.

It features a DIN rail mounting type with screw clamp terminals suitable for wire sizes ranging from 12 AWG to 1 AWG (4 mm to 70 mm), ensuring robust and secure electrical connections.

This isolator supports switching voltages up to 690V AC and provides a switching power rating of 45 kW, making it suitable for various industrial and commercial applications such as material handling systems, HVAC equipment, pumping stations, solar energy installations, and mining operations.

The switch is equipped with three normally open poles and supports padlock compatibility for safety during maintenance.

The device complies with international standards including RoHS, UL508 motor disconnect switch ratings, UL98 non-fusible disconnect switch ratings, CSA 22.2 certification, and IEC 60947-3 requirements. It offers a mechanical and electrical durability rated at 100,000 cycles, ensuring long-term reliable operation.

The temperature operating range is from -20°C to 60°C, allowing use in various environmental conditions. With compact dimensions of 100mm length, 80mm width, and 70mm depth, this Isolator Switch is designed for easy integration into control panels and systems.

Its robust design and compliance with safety standards make it suitable for installation in electrical control systems requiring safe isolation and switching capabilities. Designed for DIN rail mount with three normally open poles.

Switching power of 45 kW at 690V AC. Screw clamp terminal type accepting 4 mm to 70 mm wire. Padlock compatible for enhanced safety. Operational temperature range: -20°C to 60°C. Certified to RoHS, UL98, UL508, CSA 22.2, and IEC 60947-3 standards.

Mechanical and electrical durability of 100,000 cycles. Compact dimensions enable integration in various industrial applications. Applicable in material handling, HVAC, solar energy, mining, and pumping systems. Explore the extensive range of electrical isolation and switching devices in the Electronics & Electricals category on EnvMart for reliable industrial applications.
