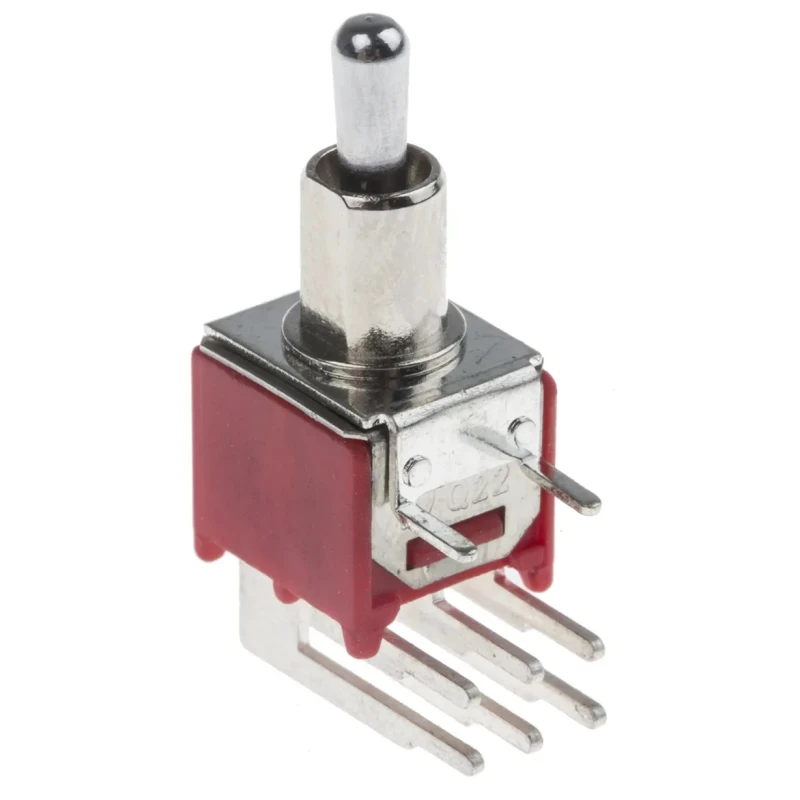

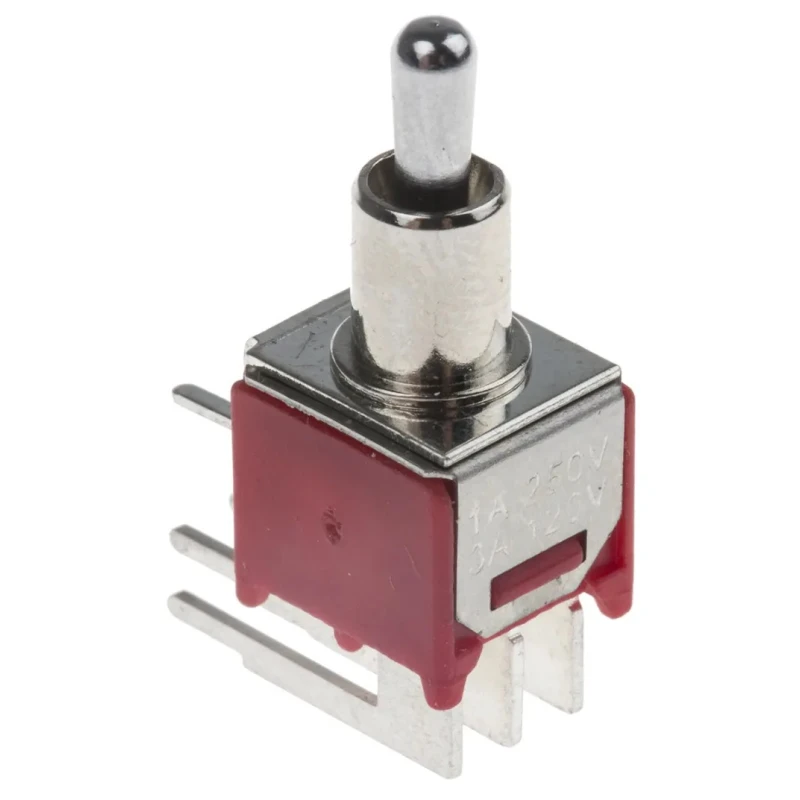

RS PRO Toggle Switch, PCB Mount, On-Off-On, DPDT, Through Hole Terminal, 15 V dc, 240 V ac 734-7205

RS PRO 734-7205 is a high-quality toggle switch designed for PCB mounting and features a Double Pole Double Throw (DPDT) contact configuration with On-Off-On switch operation. This robust switch supports a contact current of 3 A and is rated for 15 V DC and 240 V AC applications, making it suitable for various industrial and electrical control systems.

The actuator is chrome plated brass, providing durability and reliable mechanical action across a broad temperature range from -30°C to 85°C. This toggle switch offers excellent ingress protection with IP66 and IP56 ratings, ensuring resistance to dust and moisture, which is critical for demanding industrial environments.

Compliant with RoHS and Lead Free standards, the RS PRO 734-7205 promotes environmental safety and regulatory compliance. Its compact panel cutout dimension of 4.95 mm and actuator length of 5.33 mm allow for efficient space utilization on PCBs. The switch is non-illuminated and uses through hole terminals for secure electrical connections.

This switch is ideal for use in industrial automation, electrical control panels, machinery insertion, and other applications requiring a reliable and durable toggle switch solution. The mechanical life of 30,000 cycles provides assurance of long-term operation and productivity.

The RS PRO series of toggle switches are recognized for their low contact resistance and high reliability, featuring insulation resistance of at least 1000MΩ at 500 V, and a dielectric strength of 1000 Vrms at sea level, ensuring superior electrical performance.

Durable chrome plated brass actuator for reliable operation. PCB mount with through hole terminals for secure connectivity. Rated for 15 V DC and 240 V AC voltages with 3 A contact current. Environmental ingress protection rating IP66 and IP56.

Long mechanical life of 30,000 cycles. Compliant with RoHS and Lead Free regulations. Compact design with 4.95 mm panel cutout size. Operating temperature range from -30°C to 85°C. Non-illuminated switch suitable for diverse applications.

This product is manufactured in Taiwan, Province Of China and is ideal for electronics, electrical, industrial automation, manufacturing, and industrial machinery use cases. Explore the RS PRO Toggle Switches on EnvMart for advanced electrical and automation components.
