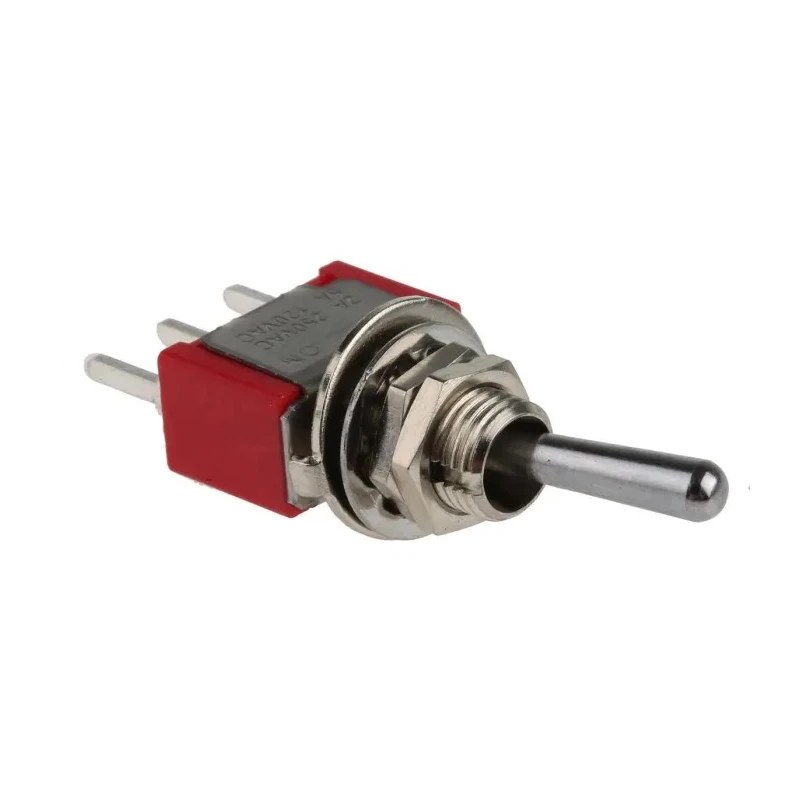

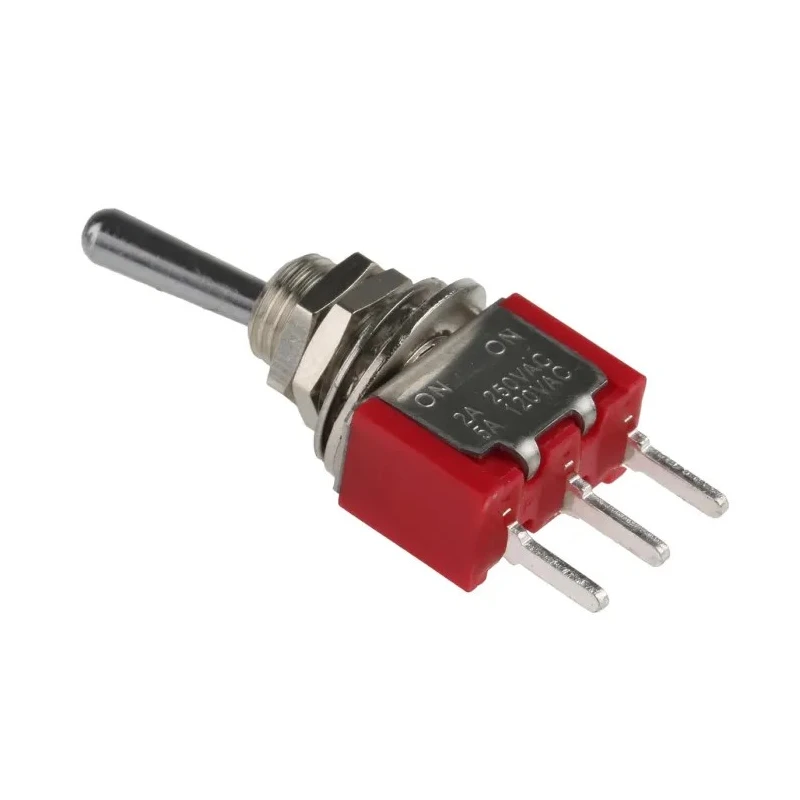

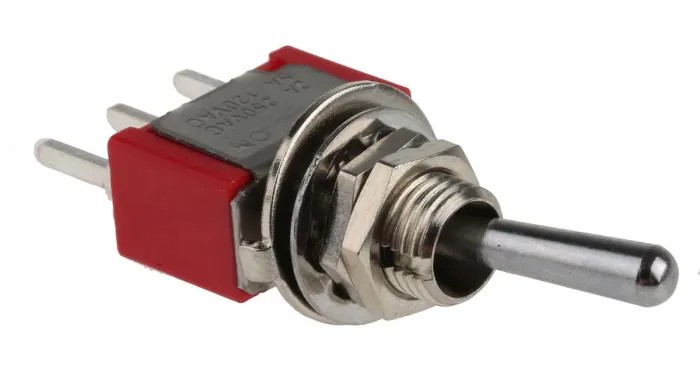

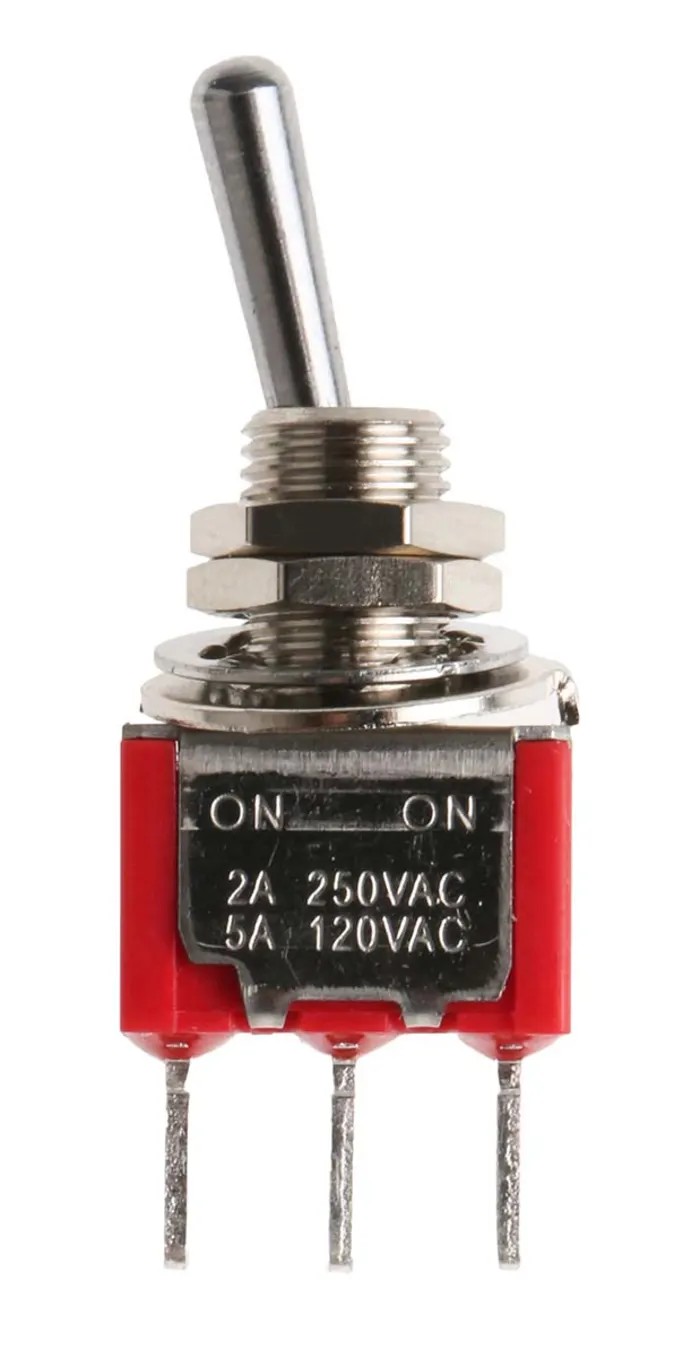

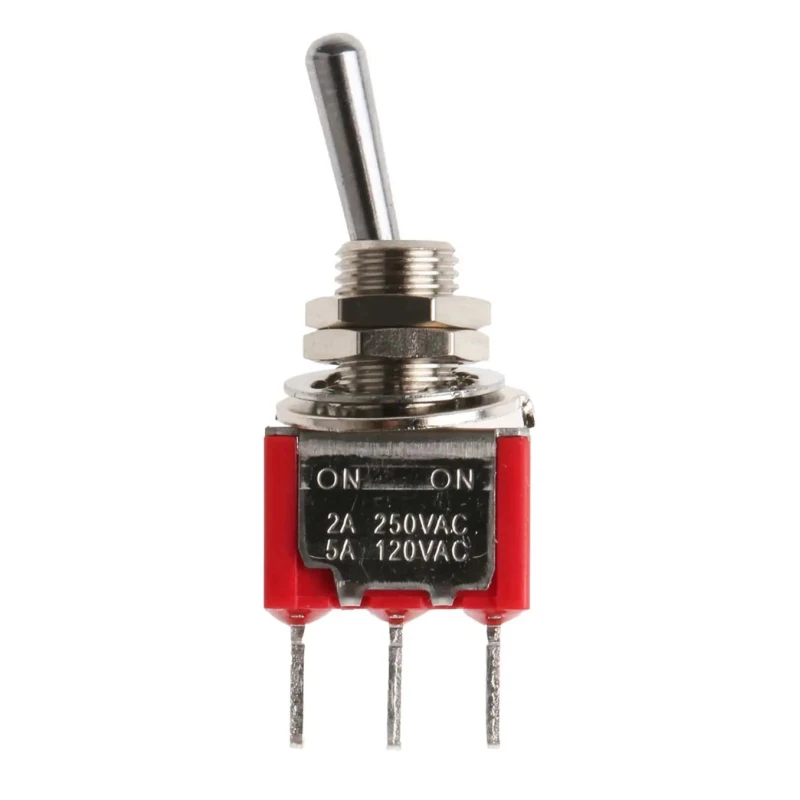

RS PRO SPDT Toggle Switch, PCB Mount, On-On Latching, Through Hole Terminal, 26 V dc, 250 V ac, Chrome Plated Brass 734-7066

RS PRO 734-7066 SPDT Toggle Switch is a compact, PCB mounted On-On latching switch suitable for switching electrical circuits in automation and industrial control systems. It features a single pole double throw configuration allowing simultaneous control of two different circuits from a single source, offering versatility in complex electronic applications.

The switch is built with a chrome plated brass actuator, providing robustness and corrosion resistance. The actuator measures 10.41 mm in length for convenient toggling operation. Its through-hole terminal design enables secure soldering onto printed circuit boards, supporting strong mechanical and electrical connections.

Designed for electrical currents up to 5 amps at 250 volts AC and contact voltages up to 26 volts DC, this toggle switch maintains a low contact resistance of 10 milliohms thanks to its silver-plated brass contacts, ensuring efficient current flow with minimal loss. The switch’s temperature tolerance from -30°C to 85°C allows reliable function in both cold and warm operational settings.

This switch offers a mechanical life of up to 40,000 cycles, reflecting its durability and suitability for repetitive switching applications. Additionally, it complies with safety and quality certifications including UL, CSA, CE, and RoHS standards. The product is lead-free, meeting important environmental regulations.

This RS PRO toggle switch is ideal for usage in industrial automation, electrical energy systems, manufacturing equipment, laboratory instruments, and consumer electronics appliances requiring dependable and compact switching solutions. Panel cutout size of 6.35 mm simplifies installation in standard panel mounts.

Single Pole Double Throw (SPDT) configuration for dual circuit control. Chrome plated brass actuator provides wear resistance and smooth toggling. Silver-plated brass contacts ensure low resistance and high conductivity.

PCB mount with through hole terminals for secure board attachment. Operating temperature range of -30°C to +85°C for versatile environments. Mechanical life expectancy of 40,000 cycles for long-lasting use. Electrical ratings: 5 A at 250 V AC and 26 V DC contact voltage.

Lead-free and RoHS compliant for sustainable electronic design.

Choose RS PRO Toggle Switches for reliable electrical switching in industrial, laboratory, construction, and automation system contexts. Explore the EnvMart catalog for more electronic switch options and accessories.
