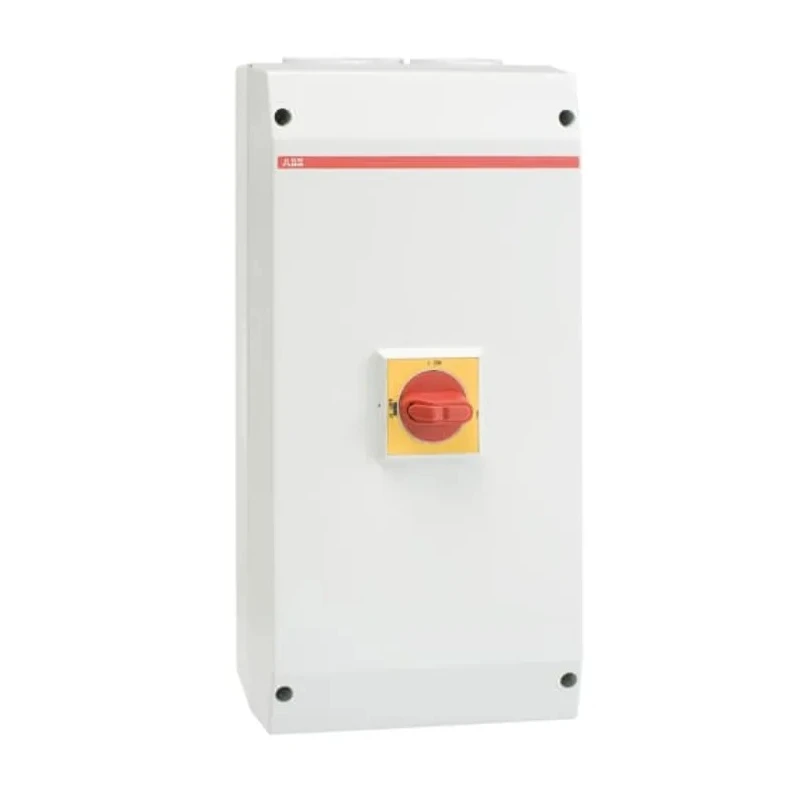

ABB 4-Pole Switch Disconnector IP65 Rated, 100A, 37 kW, Screw Clamp Terminal, OTE Series

ABB 1SCA022812R6370 OTE75A4M 4-Pole Switch Disconnector is engineered for robust electrical isolation and protection applications. Rated at 100A switching current and IP65 enclosure, it offers excellent resistance to low-pressure water jets making it suitable for both indoor and outdoor installations.

The enclosure is constructed from rigid glass reinforced polycarbonate with UV protection to withstand harsh environmental conditions. The switch handle features red and yellow colors, is padlockable with the capacity to secure three padlocks to enhance safety and compliance.

Designed for 5-wire electrical systems, the device includes fixed neutral and protective earth (PE) terminals and screw clamp terminal types for secure cable connections. Auxiliary contacts are included with a maximum of 2NO/2NC contacts available for signaling or control functions.

The product complies with IEC 60947-1-3 standards, ensuring reliable performance and safety in industrial and commercial electrical systems. Switching power is 37 kW at AC voltages up to 415V. The minimum operating temperature rated is 0°C, accommodating use in moderate climate applications.

Installation is facilitated by threaded cable entries and knock-out holes on both top and bottom, allowing parallel cable layout with one control cable. The device includes an EMC protection metal plate connected via cable shield clamps, eliminating the need for EMC glands.

Compact in design with dimensions of 400mm width, 200mm length, and 140mm depth, this switch disconnector suits diverse electrical infrastructure setups. Its rugged construction caters to industrial, commercial, and manufacturing environments demanding high safety and operational reliability.

ABB's OTE series switch disconnectors provide dependable circuit isolation, making them essential in electrical panels, machinery controls, and power distribution units. Their IP65 rating assures dust-tight enclosure including water resistance, expanding their application versatility.

Explore EnvMart’s extensive range of electrical switches and isolators to find compatible switch disconnectors, mounting accessories, and control devices suitable for enhancing your electrical safety and control systems.

Robust glass reinforced polycarbonate enclosure ensures UV protection and durability. Padlockable red and yellow handle accepts up to three padlocks for enhanced safety. Includes screw clamp terminals compatible with 5-wire systems and fixed neutral and PE terminals.

Equipped with auxiliary contacts and EMC protection via integrated metal plate and cable shield clamps. Designed in compliance with IEC 60947-1-3 standards for reliable electrical isolation. Suitable for AC switching up to 415V and switching power of 37 kW.

Threaded cable entries with knock-out holes accommodate multiple cables from top and bottom. Compact dimensions with 400mm width, 200mm length, and 140mm depth. Minimum operating temperature is 0°C ensuring consistent operation in varied environments.
