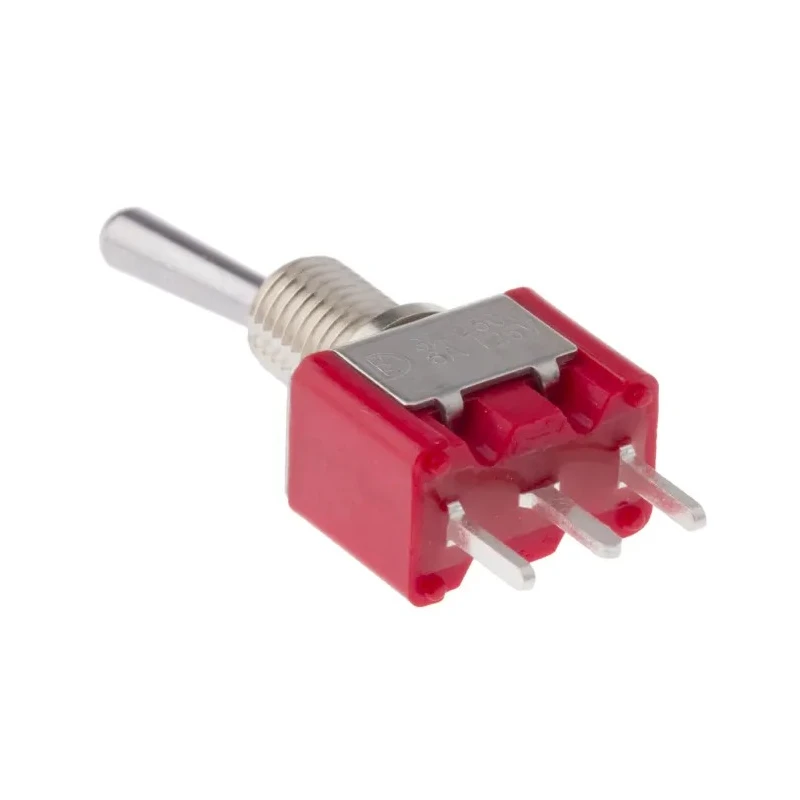

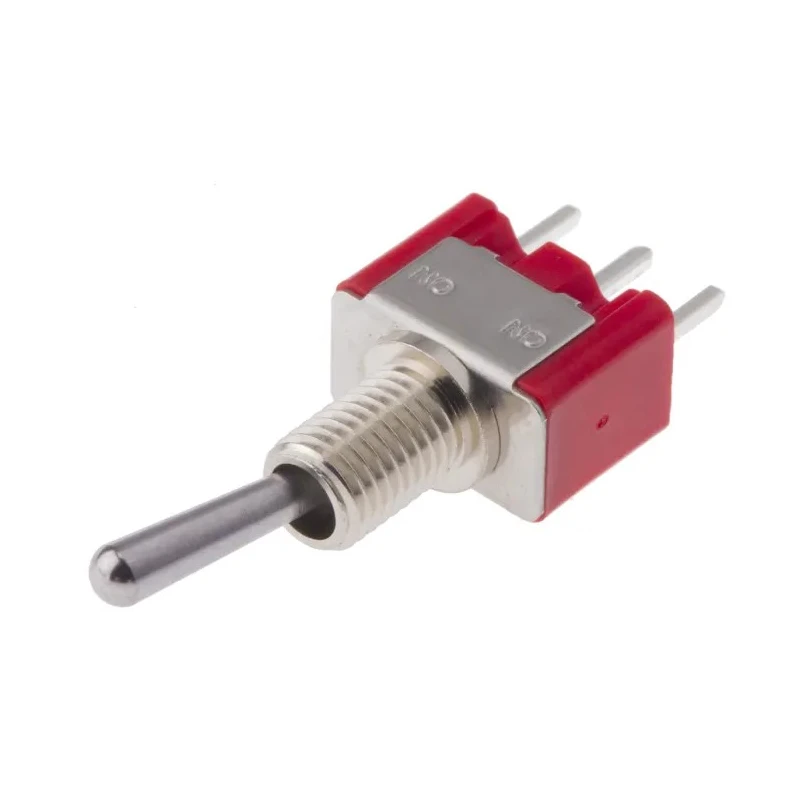

RS PRO Toggle Switch PCB Mount On-On SPDT Through Hole Terminal 12 V dc 112 V ac 7347003P
Specifications
| Country of Origin | India |
|---|---|
| Brand | RS PRO |
| Height | 12.9mm |
| Length | 34.9mm |
| Model | 7347003P |
| Width | 7.9mm |
| Mount Type | PCB |
| Maximum Operating Temperature | 85°C |
| Contact Configuration | SPDT |
| Switch Configuration | On-On |
| Minimum Operating Temperature | -30°C |
| Terminal type | Through Hole |
| Standards/Approvals | RoHS & Lead Free |
| Switch Operation | On-On |
| Actuator Length | 10.5mm |
| Contact DC Voltage | 12V dc |
| Switch Contact Current | 3A |
| Mechanical Life | 200000Cycles |
| Contact AC Voltage | 112V ac |
| Actuator Material | Chrome Plated Brass |
| Water-resistance | 100 make-and-break cycles minimum at a depth of 10cm |
Key Features
- This toggle switch features a robust chrome plated brass actuator with a length of 10.5mm.
- It offers a contact current rating of 3A with through-hole terminal mounting for secure PCB installation.
- The switch operates reliably in temperatures from -30°C up to 85°C, ensuring durability in varied environments.
- Designed with water resistance capability, it withstands at least 100 make-and-break cycles at 10cm depth.
- The compact dimensions of 34.9mm length, 12.9mm height, and 7.9mm width save PCB space.
- Mechanical life expectancy is 200,000 cycles, delivering long-term operational performance.
- This switch complies with RoHS and is lead free, meeting environmental standards.
Product Description
RS PRO 7347003P toggle switch is a high-quality miniature toggle switch designed for PCB mounting with an On-On SPDT contact configuration. Rated for 12 V dc and 112 V ac contact voltages, it is suitable for electrical, automation, and electronic applications requiring switching functionality on printed circuit boards.
The actuator is constructed of chrome-plated brass with a length of 10.5 mm, providing tactile feedback and durability. This switch supports a contact current of 3A and is configured with through-hole terminals for robust soldered connections.
Designed for demanding applications, the switch operates reliably between -30°C and 85°C. It is water resistant, tested for at least 100 make-and-break cycles at a 10 cm depth, adding protection in humid or splash-prone environments.
The compact size with physical dimensions of 34.9 mm length, 12.9 mm height, and 7.9 mm width allows integration into space-constrained PCB layouts. The RS PRO toggle switch offers a mechanical life of 200,000 operating cycles, ensuring long-term reliability for industrial, laboratory, HVAC, manufacturing, and other commercial uses.
Robust chrome plated brass actuator with 10.5 mm length for reliable operation. On-On SPDT switching with 3A contact current and through-hole PCB mounting. Wide operating temperature range from -30°C to 85°C for diverse environments.
Water resistance rated for 100 make-and-break cycles at 10 cm depth. Compact PCB mount size with 34.9 × 12.9 × 7.9 mm dimensions. Durable mechanical life of 200,000 cycles supporting industrial applications. RoHS compliant and lead free for environmentally responsible installations.
This product is part of the RS PRO series of miniature toggle switches, renowned for quality and reliability in electronics and electrical switching. It is ideal for PCB mounting in automation, industrial controls, telecoms, and other professional system designs requiring compact and durable toggle switches.
For more RS PRO Toggle Switches and other components, explore our extensive electronics and electricals categories on EnvMart to find the best solutions tailored to your technical requirements.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The toggle switch has a contact current rating of 3A.
It operates reliably in temperatures ranging from -30°C to 85°C.
The dimensions are 34.9 mm in length, 12.9 mm in height, and 7.9 mm in width.
This switch is designed for PCB mounting with through-hole terminals.
The mechanical life expectancy is rated at 200,000 cycles.
It is water resistant and has been tested for at least 100 make-and-break cycles at a depth of 10 cm.
The actuator is made of chrome plated brass.
It supports a contact DC voltage of 12V and an AC voltage of 112V.
Yes, it complies with RoHS standards and is lead free.
The contact configuration is SPDT (Single Pole Double Throw) with an On-On operation.
It is suitable for electrical, automation, and electronic applications requiring switching functionality on printed circuit boards.
The actuator length is 10.5 mm.
