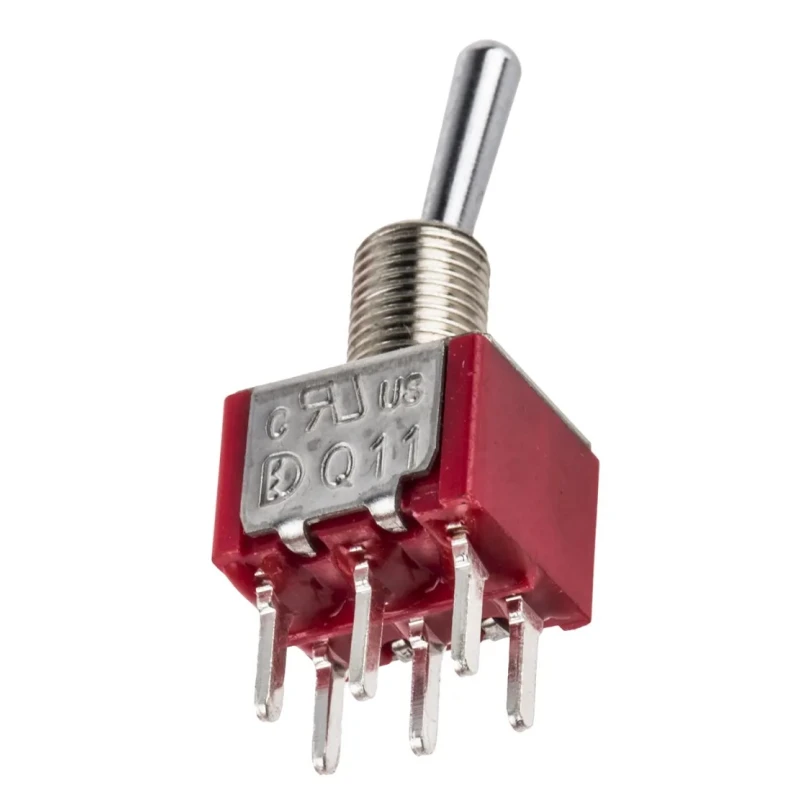

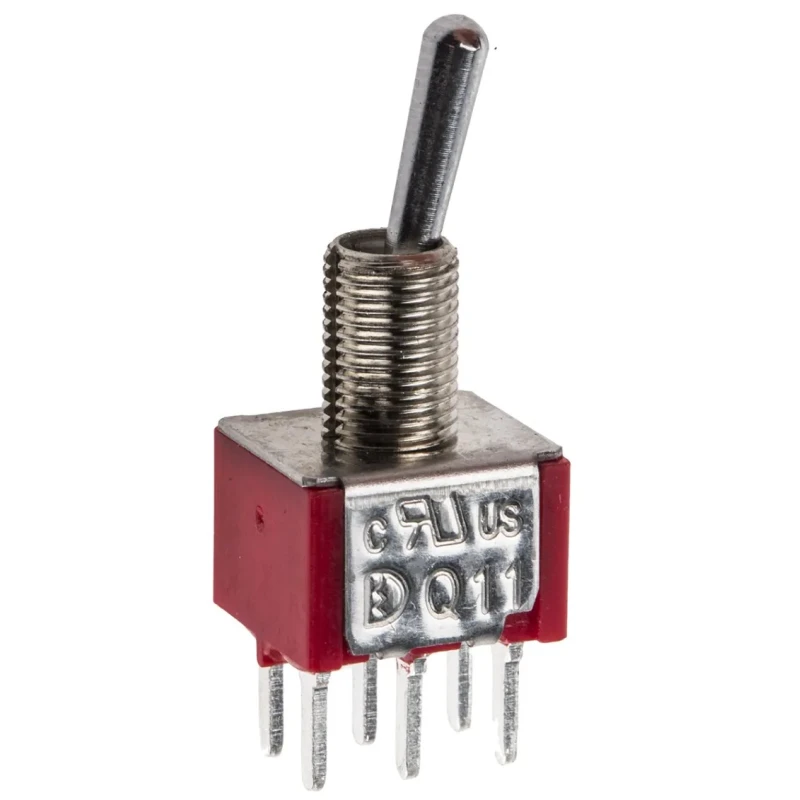

RS PRO Toggle Switch PCB Mount On-None-On DPDT Through Hole Terminal 26 V dc 112 V ac 7347025P
Specifications
| Country of Origin | India |
|---|---|
| Brand | RS PRO |
| Model | 7347025P |
| Mount Type | PCB |
| Maximum Operating Temperature | 85°C |
| Contact Configuration | DPDT |
| Switch Configuration | On-None-On |
| Minimum Operating Temperature | -30°C |
| Panel Cutout Size | 6.35 mm |
| Terminal type | Through Hole |
| Standards/Approvals | RoHS & Lead Free |
| Switch Operation | On-None-On |
| Actuator Length | 10.41mm |
| Contact DC Voltage | 26V dc |
| Switch Contact Current | 5A |
| Mechanical Life | 40000Cycles |
| Contact AC Voltage | 112V ac |
| Actuator Material | Chrome Plated Brass |
Key Features
- The switch offers a current rating of 5A for reliable electrical performance.
- It has a panel cutout size of 6.35 mm for easy installation.
- Made with chrome plated brass actuator for durability and corrosion resistance.
- Operates in temperature range from -30°C to 85°C for versatile use.
- Features mechanical life of 40,000 cycles ensuring long service life.
- Not illuminated, suitable for standard toggling applications.
- Designed for PCB mounting with through hole terminal type for secure connection.
- Conforms to RoHS and Lead Free standards ensuring environmental compliance.
Product Description
The RS PRO 7347025P toggle switch is a miniature, PCB mount On-None-On double pole double throw (DPDT) switch designed for industrial and electronic applications requiring reliable switching with moderate voltage ratings.
With a contact configuration of DPDT and a switch operation of On-None-On, this toggle switch can handle contact currents of up to 5 amps, supporting contact voltages of 26 V dc and 112 V ac respectively. The switch is constructed with a chrome plated brass actuator providing mechanical robustness and corrosion resistance.
Its through hole terminal mount type ensures firm connection on printed circuit boards, with a panel cutout size of 6.35 mm for straightforward installation in compact control panels or devices. This component performs reliably in harsh operating conditions ranging from -30°C up to 85°C.
The RS PRO 7347025P switch is built to withstand a mechanical life of 40,000 cycles, making it suitable for automated machinery, industrial controls, and electrical systems requiring frequent switching action. It is not illuminated, focusing on traditional toggle functionality without indicator lighting.
Compliant with RoHS and lead-free standards, this toggle switch aligns with environmental directives for safe industrial use. Suitable applications include automation systems, instrumentation, household appliances, test equipment, and other PCB-controlled electrical devices.
The switch offers a current rating of 5A for reliable electrical performance. It has a panel cutout size of 6.35 mm for easy installation. Made with chrome plated brass actuator for durability and corrosion resistance. Operates in temperature range from -30°C to 85°C for versatile use.
Features mechanical life of 40,000 cycles ensuring long service life. Not illuminated, suitable for standard toggling applications. Designed for PCB mounting with through hole terminal type for secure connection. Conforms to RoHS and Lead Free standards ensuring environmental compliance.
Explore more Toggle Switches and electrical components in the Electronics & Electricals category at EnvMart for industrial, laboratory, and commercial solutions.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The toggle switch has a current rating of 5A, ensuring reliable electrical performance.
It requires a panel cutout size of 6.35 mm for straightforward installation.
This model operates within a temperature range of -30°C to 85°C, making it suitable for various environments.
It is designed for PCB mounting with a through hole terminal type for secure connections.
The switch features a mechanical life of 40,000 cycles, ensuring longevity in usage.
It can handle a contact DC voltage of 26V and an AC voltage of 112V.
The actuator is made of chrome plated brass, providing corrosion resistance.
No, this model is not illuminated and focuses on standard toggling functionality.
It conforms to RoHS and lead-free standards, ensuring environmental compliance.
It is suitable for automation systems, instrumentation, household appliances, test equipment, and other PCB-controlled electrical devices.
The contact configuration is double pole double throw (DPDT), allowing for versatile switching options.
The actuator length is 10.41 mm, which is designed for effective operation in compact spaces.
