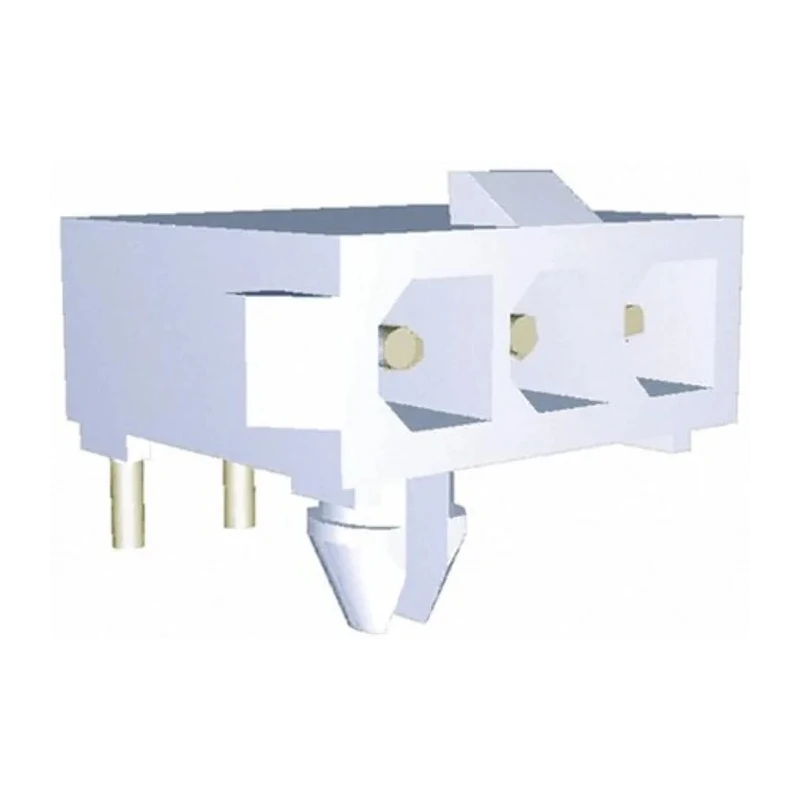

TE Connectivity Mini-Universal MATE-N-LOK Series Right Angle Through Hole PCB Header, 3 Contacts, 4.14 mm Pitch 1-770967-1

TE Connectivity 1-770967-1 Mini-Universal MATE-N-LOK Series PCB Header is a reliable right angle through hole connector designed for wire-to-board applications requiring secure and stable electrical connections. It integrates three male brass contacts with gold plating arranged at a precise 4.14 mm pitch to achieve optimal conductivity and corrosion resistance.

The white nylon housing meets UL94V-0 flame retardant standards, ensuring safety and durability in industrial or commercial electronic devices. Its right angle orientation aids in compact PCB design, facilitating versatile mounting options especially where vertical space is restricted.

This product supports a current rating of 9.5 amperes and voltage of 600 volts, making it suitable for medium power electronic assemblies in industrial, automotive, and communication applications. The unit operates reliably across temperatures from -20°C up to 85°C.

For mechanical reliability, the header incorporates a positive locking latch mechanism which firmly secures mating connectors, preventing accidental disengagement. Additionally, board locks assist in retaining the connector firmly onto the PCB, improving vibration resistance in demanding environments.

TE Connectivity’s Mini-Universal MATE-N-LOK system is ideal for designers seeking easy-to-assemble, secure, and compact connectors that ensure electrical integrity and long-term performance in wire-to-board connections.

The connector supports a current rating of 9.5A for reliable electrical performance. Housing is made from white UL94V-0 rated nylon which provides excellent durability and safety. Right angle orientation facilitates compact PCB layouts in electronic assemblies.

Gold plated contacts ensure low resistance and corrosion resistance for long-term use. Through hole mount provides solid mechanical stability and easy assembly. Operating temperature ranges from -20°C to 85°C enabling use in diverse environments.

Includes positive locking latch mechanism and board locks to enhance secure mating and retention. Rated for 600V operation suitable for medium voltage applications.

This connector is widely used across industrial, electronic manufacturing, automotive, telecommunications, and instrumentation sectors where dependable PCB connectivity is essential. Explore more PC connectors and high-quality components in the TE Connectivity series on EnvMart.
