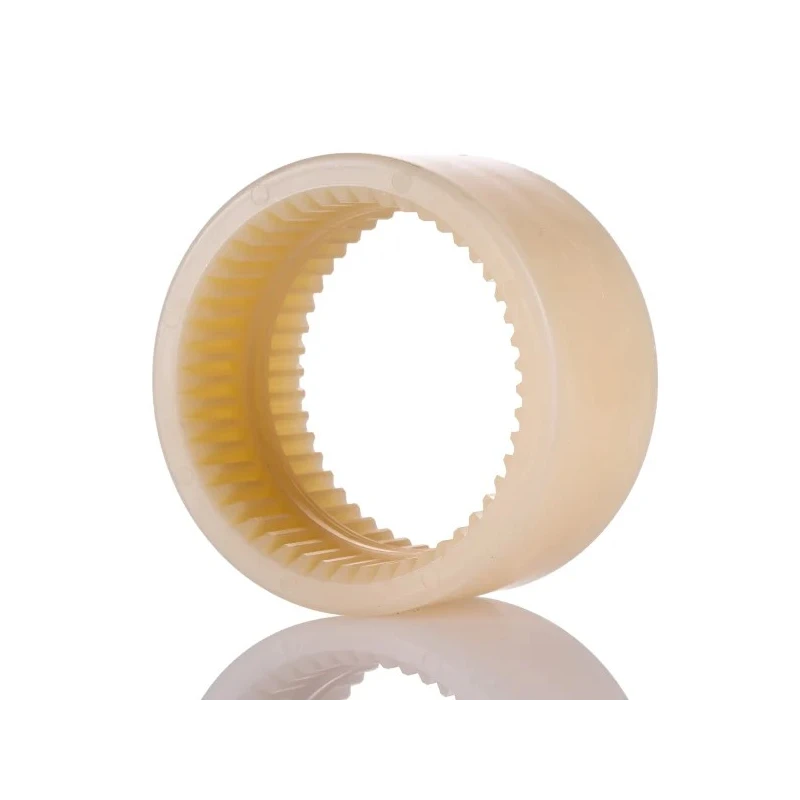

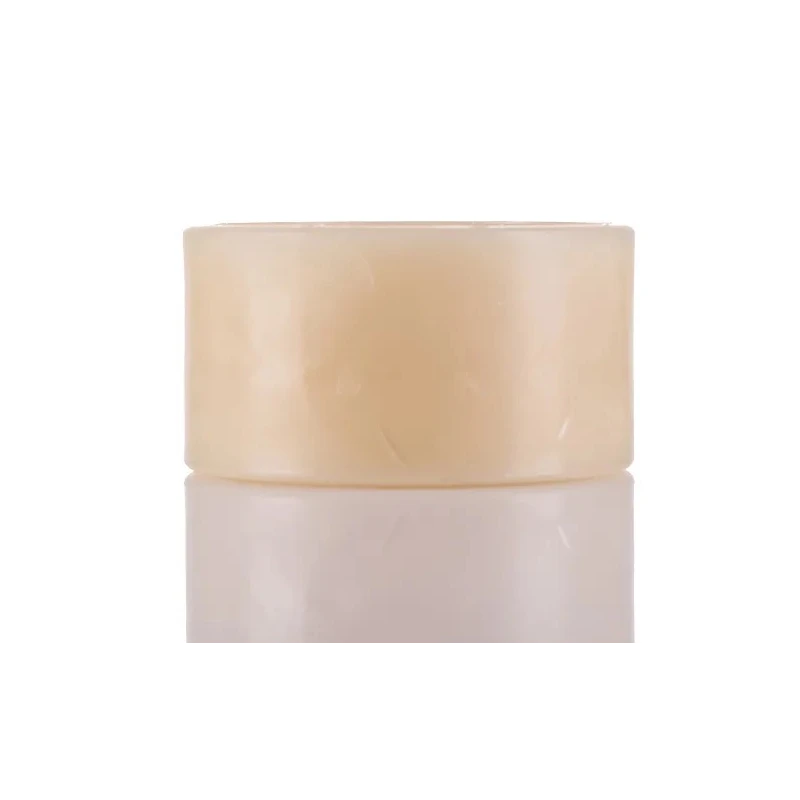

KTR Polyamide Coupler, 92 mm OD, 50 mm Length BoWex M Tooth Gear Flexible Coupling BOWEXM42-SLEEVE-PB

KTR BOWEXM42-SLEEVE-PB polyamide coupler features a 92 mm outside diameter and a 50 mm length, part of the BoWex series of curved-tooth gear flexible couplings. This coupling sleeve provides a reliable and maintenance-free mechanical power transmission solution, absorbing axial, radial, and angular shaft misalignments while maintaining torsional rigidity.

The combination of steel hubs and polyamide sleeve material reduces wear and negates the need for lubrication. The coupling tolerates operation up to 100°C and offers excellent resistance against lubricants, fuels, hydraulic fluids, and solvents, making it suitable for aggressive industrial environments.

BoWex couplings transmit torque positively through the curved-tooth design which prevents edge pressure, reducing wear. The unique double cardanic operation allows for angular and radial displacement without generating restoring forces or periodic velocity fluctuations.

This coupling is adaptable to both vertical and horizontal shaft orientations and can be installed without special assembly tools. Its torsionally rigid, short shaft design helps optimize machine layout and performance.

Applications for this polyamide coupling include the food industry, printing and paper industry, textile manufacturing, sewage technology, wash mobiles, chemical and pharmaceutical sectors, and offshore units. It is ideal for use in environments exposed to air, water, and various chemicals.

BoWex curved-tooth gear coupling sleeve designed for flexible shaft connections. Compensates for axial, radial and angular misalignment effectively. Material combination of steel hubs and polyamide sleeves ensures maintenance-free operation.

Operates without lubrication due to low friction between polyamide and steel. Maximum operating temperature up to 100°C for demanding environments. Resistant to lubricants, fuels, hydraulic fluids, and solvents. Suitable for industries including food, print and paper, textile, chemical, pharmaceutical, and offshore units.

Short shaft distance with torsionally rigid construction for precise torque transmission. Three-part coupling system: two hubs and one coupling sleeve sold separately.

Set comprises only the coupling sleeve; coupling hubs are sold separately. Explore the Mechanical Power Transmission Coupler category for related flexible coupling products on EnvMart.
