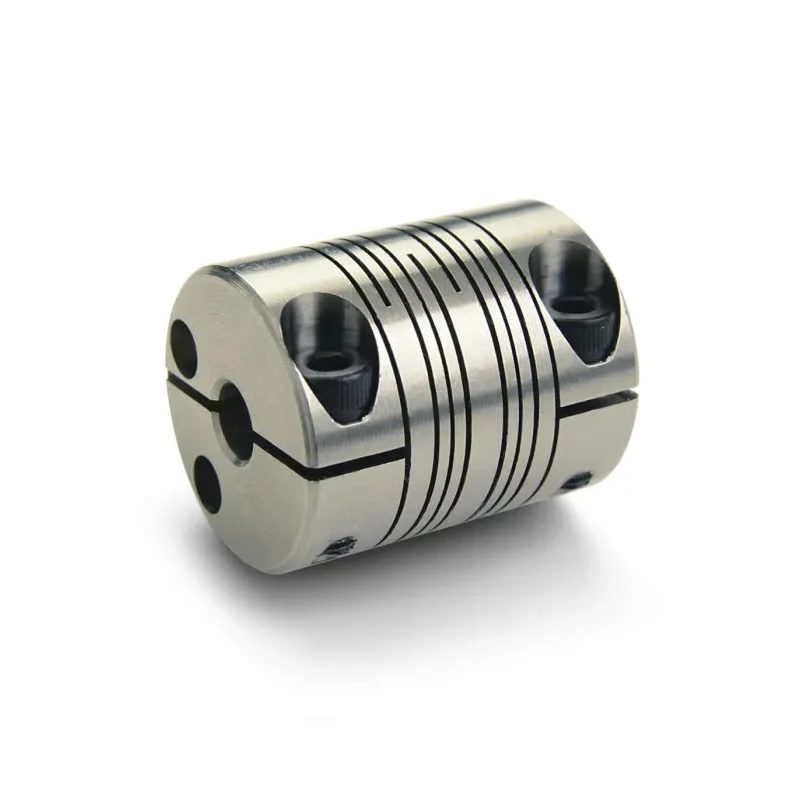

Ruland Stainless Steel Flexible Coupler 15 mm OD 5 mm Bore, 20 mm Length Clamp Style MWC15-5-5-SS

Ruland MWC15-5-5-SS stainless steel flexible coupler is engineered for mechanical power transmission applications requiring high precision, torsional rigidity, and the capability to accommodate shaft misalignments. Constructed from stainless steel, this clamp-style coupling offers robust durability and resistance to corrosion, suitable for industrial, manufacturing, robotics, and fluid power systems.

The coupling has an outside diameter of 15 mm, bore sizes of 5 mm on both shafts, and a length of 20 mm. Designed for speeds up to 6000 rpm and a torque rating of 0.81 Nm, it supports angular misalignment up to 3°, parallel misalignment up to 0.2 mm, and axial misalignment up to 0.12 mm, ensuring smooth power transmission under varying operational conditions.

Its one-piece stainless steel construction eliminates joints, reducing potential failure points and maintenance requirements. The clamp-style fixing uses one socket head cap screw per shaft, providing a secure connection. This coupling accommodates operating temperatures from -40°C to 176°C, making it suitable for demanding environments.

Applications include use with encoders, stepper motors, robotics, servo systems, pumps, valves, fans, and measuring instruments, where precision and reliability are critical. Compliance with RoHS3, REACH, and DIN 912 12.9 standards ensures environmental and material safety.

Clamp style fixing provides secure shaft connection with one socket head cap screw per shaft. Constructed from stainless steel offering durability and corrosion resistance. Designed for maximum speed of 6000 rpm and torque rating of 0.81 Nm.

Allows up to 3° angular, 0.2 mm parallel, and 0.12 mm axial misalignment. Operates reliably in temperatures ranging from -40°C to 176°C. Features four beams for torsional rigidity and zero backlash performance. Compatible with bore sizes of 5 mm on both shafts and an outside diameter of 15 mm.

Manufactured as one-piece to eliminate mechanical joints and potential failure points. Typical industrial applications include robotics, encoders, servo systems, pumps, valves, and measuring instruments. Meets RoHS3, REACH, and DIN 912 12.9 standards.
