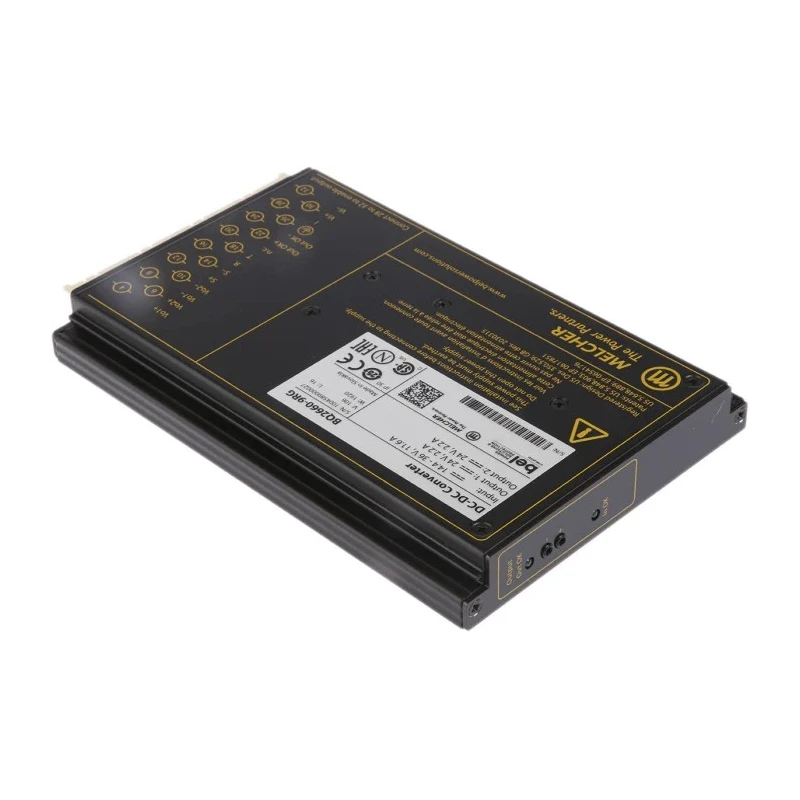

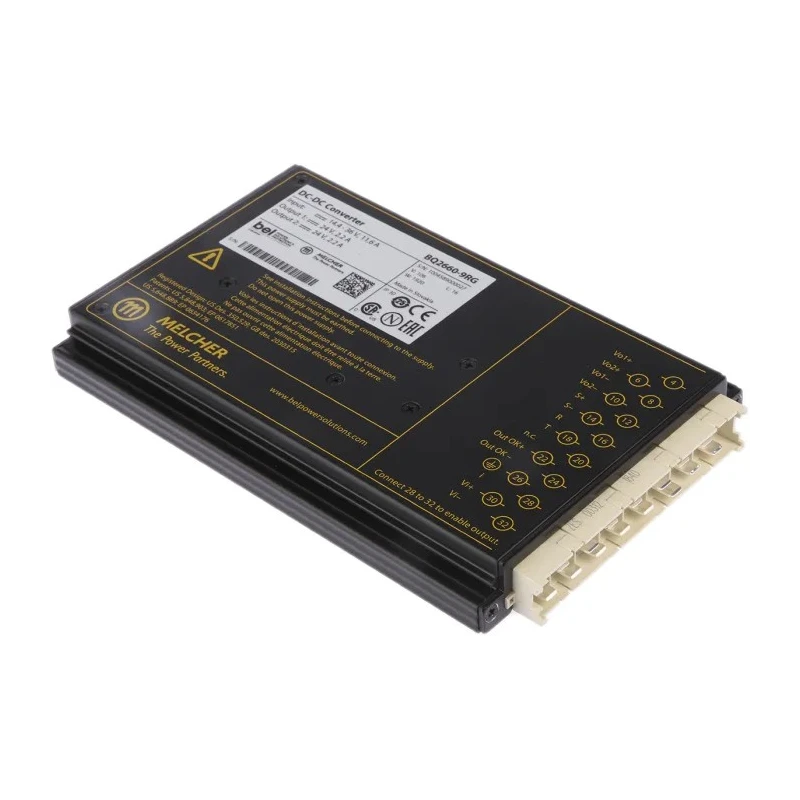

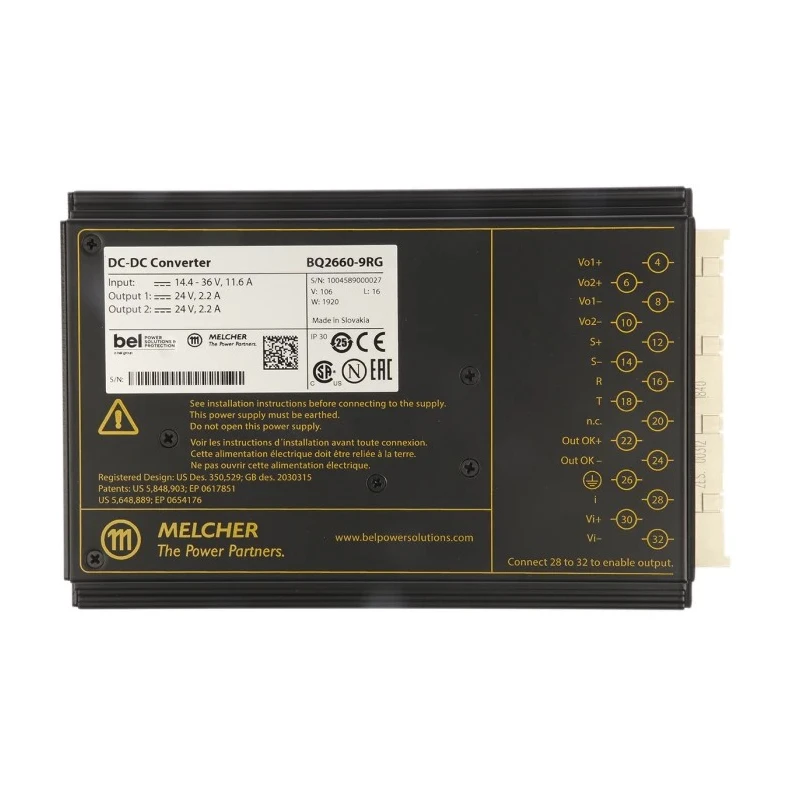

BEL POWER SOLUTIONS INC Q Series DC/DC Converter 5.5V 24mA 36V Input 14.4V Input 102W Max Output Power BQ2660-9RG
Specifications
| Country of Origin | India |
|---|---|
| Brand | BEL POWER SOLUTIONS INC |
| Efficiency | 90.5% |
| Length | 172mm |
| Model | BQ2660-9RG |
| Depth | 20mm |
| Gross Weight | 500g |
| Series | Q |
| Maximum Operating Temperature | 71°C |
| Minimum Operating Temperature | -40°C |
| Number of outputs | 2 |
| Maximum Output Power | 102W |
| Maximum Input Voltage | 36V |
| Standards/Approvals | UL, IEC, EN, CSA |
| Minimum Input Voltage | 14.4V |
| Output Voltage 1 | 5.5V |
| Output Current 1 | 24mA |
| Isolation Voltage | 4.2kV |
Key Features
- This Q Series DC/DC converter provides 5.5V output voltage with 24mA output current.
- Supports input voltage range from 14.4V minimum to 36V maximum for flexibility.
- Offers high isolation voltage of 4.2kV for safety and reliability.
- The compact unit measures 172mm length, 20mm depth, and weighs 500g, optimized for 19-inch DIN rack mounts.
- Operating temperature range from -40°C to 71°C ensures performance in harsh conditions.
- Features include low ripple and RFI noise, overtemperature protection, and over-/undervoltage lockout.
- Complies with UL, IEC, EN, and CSA standards for industrial applications.
- Designed for use in industrial, telecom, railway, and power management systems.
Product Description
BEL POWER SOLUTIONS INC BQ2660-9RG Q Series DC/DC Converter delivers regulated isolated dual outputs with maximum output power of 102W, suitable for industrial and telecom applications requiring reliable power conversion.
This converter offers an output voltage of 5.5V with 24mA output current and supports input voltages ranging from 14.4V to 36V, enabling integration into various power systems. The device provides excellent isolation voltage of 4.2kV and operates efficiently at 90.5%, minimizing energy losses and heat generation.
The compact and robust design includes a black-coated aluminium case acting as a heat sink and RFI shield, which protects against conductive dust and humidity with conformal coating. Its size (172mm length x 20mm depth) and weight of 500g make it suitable for chassis or 19" DIN rack mounting using four M3 screws.
This Q Series DC/DC converter includes features such as low ripple and RFI noise, overtemperature protection, low inrush current, hot swappable functions for redundant power applications, and compliance with relevant railway standards EN 50155 and EN 50121-3-2. It is particularly suited for demanding and rugged environments like industrial control systems, telecommunications, railway electronics, and other power management applications.
This device provides two isolated outputs which can be connected in series or parallel to achieve preset voltages from 5.1V to 48V DC. Its design ensures surge and transient protection while enabling hot plug and current sharing for redundancy.
The conformal coating protects internal electronics from humidity and conductive dust. Low inrush current enhances reliability by protecting upstream power supplies. Compact size and DIN rack compatibility facilitate easy system integration in industrial setups.
Explore EnvMart’s category for DC/DC Converters to find compatible power conversion products supporting your industrial and technical needs.
