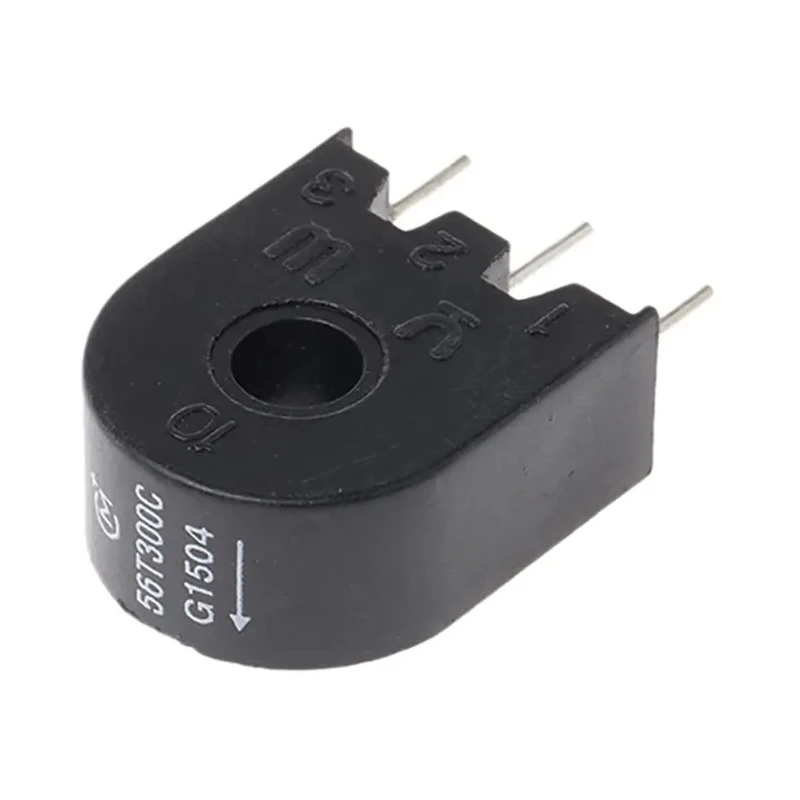

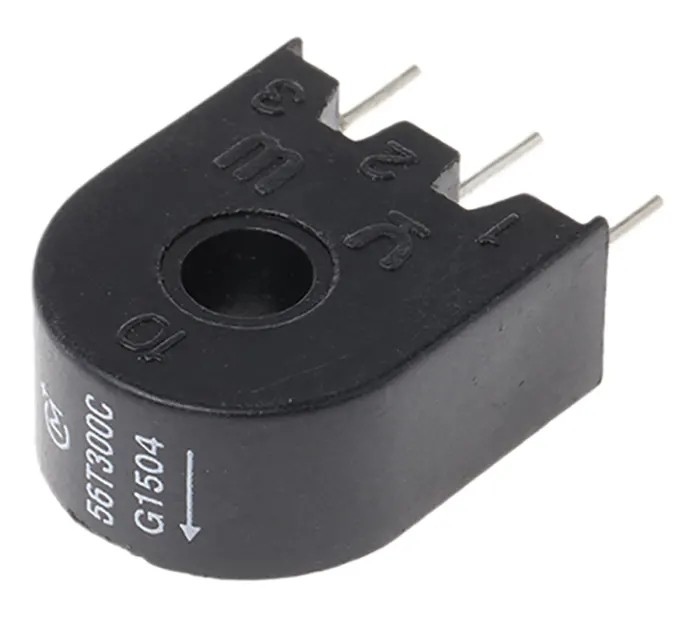

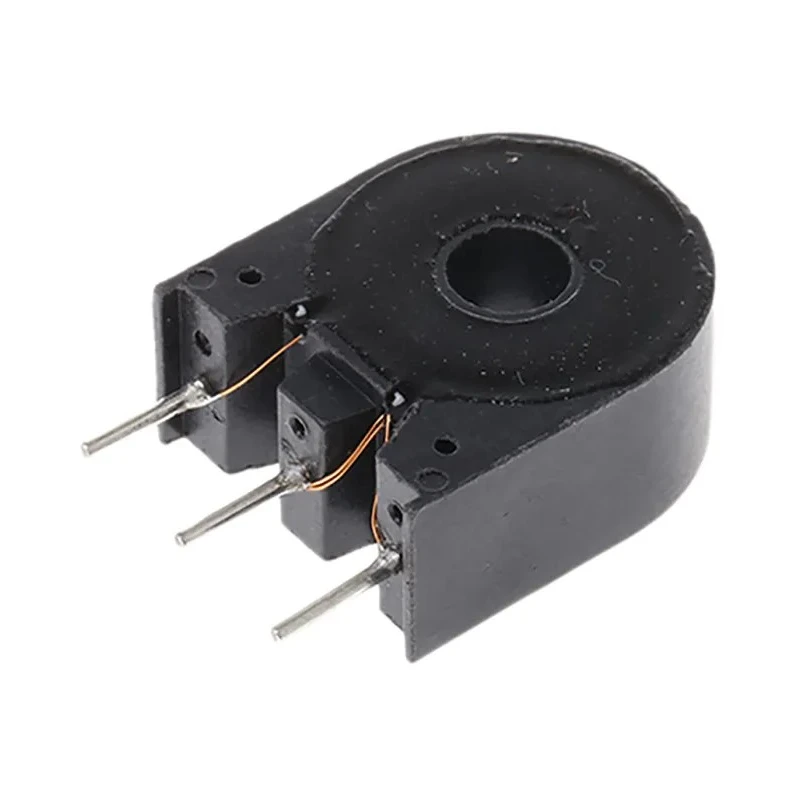

Murata Power Solutions 5600 Series High Frequency Current Transformer 10 A 56T300C

Free Delivery in India | Lowest Global Shipping Charges

Murata Power Solutions 5600 Series High Frequency Current Transformer 10 A 56T300C

Name: Murata Power Solutions 5600 Series High Frequency Current Transformer 10 A 56T300C
Brand: Murata Power Solutions
SKU: 219469
Price: 2.7 USD
Availability: InStock



Category Current Transformer Brand Murata Power Solutions Condition New

Specifications

Country of Origin	China
Brand	Murata Power Solutions
Length	16.79mm
Model	56T300C
Depth	20.19mm
Width	8.89mm
Mount Type	Through Hole
Series	5600
Maximum Operating Temperature	85°C
Minimum Operating Temperature	-40°C
Secondary current	1A
Terminal type	Wire
Inductance	160mH
Primary Current	10A
Minimum Operating Frequency	20kHz
Maximum Operating Frequency	200kHz
Primary DC Resistance	5.73Ω
Secondary DC Resistance	8.59Ω

Key Features

Offers precise current measurement with a 10 A primary current capacity.
Features a cable hole primary and single secondary with wire terminals.
Operates reliably within a temperature range of -40°C to 85°C.
Compact dimensions of 16.79mm length, 8.89mm width, and 20.19mm depth enable easy integration.
Suitable for switched-mode power supplies, motor control, and electronic lighting ballasts.
High frequency operation supports from 20 kHz to 200 kHz.
Designed as through hole mount for secure PCB installation.
Manufactured to series 5600 specifications, ensuring consistent quality and performance.

Product Description

Murata Power Solutions 56T300C 5600 Series Current Transformer 10 A is engineered for accurate high frequency AC current sensing in industrial and commercial electronic applications.

This current transformer features a 10 A primary current rating and a 1 A secondary current, suitable for current monitoring in switched-mode power supplies, motor control circuits, and electronic lighting ballasts.

The device utilizes a cable hole primary and wire terminal type secondary, mounted via a through hole style for reliable PCB integration. Its compact size with 16.79mm length, 8.89mm width, and 20.19mm depth allows for space-efficient installation.

Operating temperature ranges from -40°C to 85°C, supporting a wide variety of environmental conditions. The transformer supports frequencies from 20 kHz minimum to 200 kHz maximum, accommodating high frequency electrical signals.

This model belongs to Murata’s 5600 series, known for high inductance (160 mH) and stable DC resistances (5.73Ω primary, 8.59Ω secondary), ensuring quality power and signal integrity.

Precise current sensing with 10 A primary capacity. Cable hole primary and wire type secondary terminals. Wide temperature operating range from -40°C to 85°C. Compact and robust through hole mounting design. Supports high frequency AC applications up to 200 kHz.

Suitable for industrial automation, power supply monitoring, and electronic ballasts. Manufactured under high-quality standards in China.

These transformers are commonly used in automation, control gear, process control, and electrical instrumentation, offering reliable current measurement in demanding industrial and laboratory environments.
