SMC Pneumatic Rotary Clamp Cylinder Bore 16mm Stroke 20mm Double Acting Aluminium Alloy Body MKB16-20LZ

Free Delivery in India | Lowest Global Shipping Charges

SMC Pneumatic Rotary Clamp Cylinder Bore 16mm Stroke 20mm Double Acting Aluminium Alloy Body MKB16-20LZ



Category Pneumatic Cylinder Brand SMC Condition New

Specifications

Country of Origin	China
Brand	SMC
Body Material	Aluminium Alloy
Maximum Operating Pressure	1 Mpa
Temperature range	-10°C to +70°C
Model	MKB16-20LZ
Gross Weight	123g
Mount Type	Through Hole
Pressure Range	1 - 10bar, 15bar proof pressure
Series	MK
Maximum Operating Temperature	60°C
Minimum Operating Temperature	-10°C
Stroke Length	20mm
Bore Diameter	16mm
Action Type	Double Acting
Cushioning Type	Rubber
Piston Rod Thread Size	M5 x 0.8
Angle of Rotation	90°

Key Features

Operates at a maximum pressure of 1 Mpa within a pressure range of 1 to 10 bar.
Compact and durable aluminium alloy body with lightweight design.
Double-acting piston rod rotates 90 degrees for effective clamping.
Rubber cushioning reduces impact and extends component lifespan.
Through-hole mounting ensures secure and stable installation.
Suitable for operating temperatures from -10°C to 60°C.
Piston rod thread size M5 x 0.8 provides tooling compatibility.
Lightweight design weighing 123 grams for easy integration.

Product Description

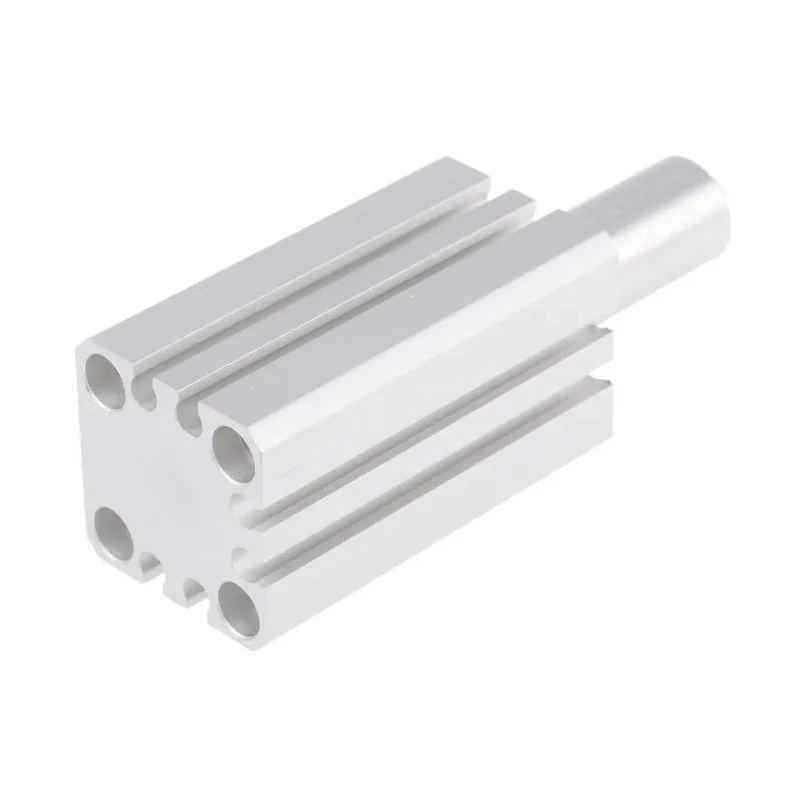

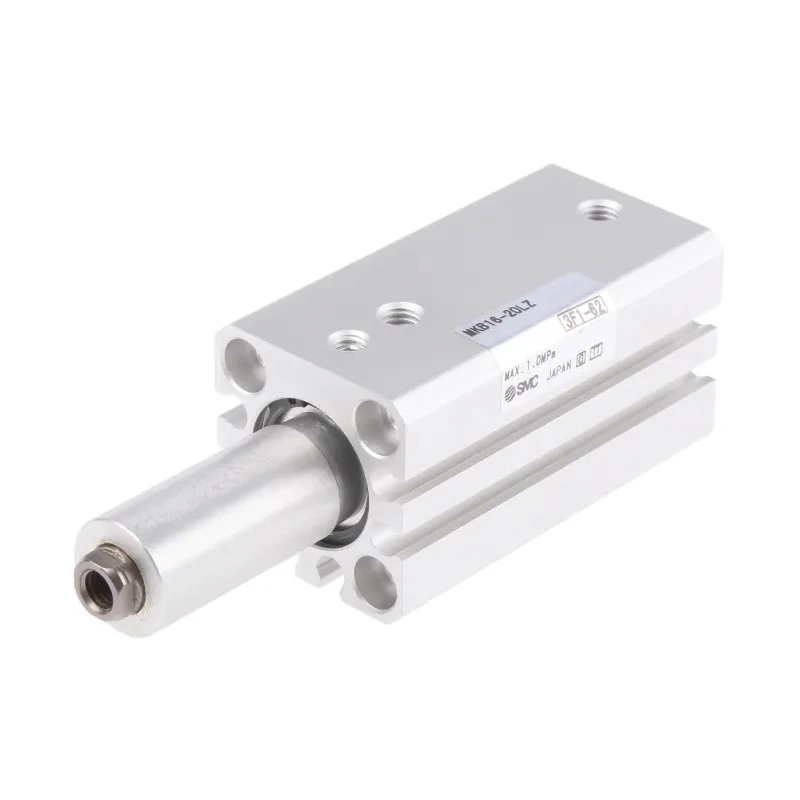

The SMC MKB16-20LZ pneumatic rotary clamp cylinder is a high-performance, double-acting rotary clamp actuator designed for industrial automation and manufacturing use. This compact cylinder features a 16mm bore diameter and a 20mm stroke length, coupled with a 90-degree piston rod rotation for effective clamping operations. Its aluminium alloy body offers a robust yet lightweight construction, making it suitable for demanding pneumatic applications.

The unit operates reliably under a maximum operating pressure of 1 Mpa (approximately 10 bar) and is proof tested up to 15 bar, ensuring safety and durability in high-pressure environments. It uses a rubber cushioning type to absorb impact loads at stroke ends, thereby extending the lifespan of the actuator components. The through-hole mount type simplifies installation while providing firm and stable fixture support.

The cylinder’s operating temperature range from -10°C to 60°C, with extended ambient temperature tolerance up to +70°C, broadens its application scope across various industrial settings. The piston rod features an M5 x 0.8 thread size that allows flexible tooling attachments necessary for customized automation tasks.

Weighing only 123 grams, this compact design permits easy integration into existing machinery without adding significant mass. SMC's renowned quality in pneumatic component manufacturing guarantees consistent performance and reliability in pneumatic clamping systems, automotive assembly lines, robotics, and packaging machinery.

Maximum operating pressure of 1 Mpa with pressure range 1 to 10 bar, proof pressure up to 15 bar. Double-acting operation with 90-degree piston rod rotation for efficient clamp control. Aluminium alloy body material provides strength while maintaining low weight (123g).

Rubber cushioning for impact absorption and enhanced durability. Through-hole mounting type for secure and flexible installation. Operating temperature range from -10°C to 60°C, suitable for various industrial environments.

Piston rod thread size M5 x 0.8 for modular tooling compatibility.

This pneumatic rotary clamp cylinder is widely used for precise clamping tasks in fluid power systems, factory automation, and mechanical processing sectors. It delivers reliable operation with minimal maintenance in industrial, laboratory, and manufacturing environments.

Explore the full range of SMC Pneumatic Cylinders and actuators available on EnvMart for your fluid power needs.

Looking to purchase in bulk?

Purchase item in bulk quantity
Get best price for your business

Comments (0)

No customer reviews for the moment.

Frequently Asked Questions

The maximum operating pressure of the SMC MKB16-20LZ pneumatic rotary clamp cylinder is 1 Mpa, with a pressure range of 1 to 10 bar and a proof pressure of up to 15 bar.

This model has a bore diameter of 16mm, a stroke length of 20mm, and weighs 123 grams, making it lightweight and compact for easy integration.

The operating temperature range for the SMC MKB16-20LZ is from -10°C to 60°C, with an extended ambient temperature tolerance up to +70°C.

This unit features a through-hole mounting type, which allows for secure and stable installation in various applications.

The SMC MKB16-20LZ operates as a double-acting cylinder, allowing for efficient clamping with a 90-degree rotation of the piston rod.

It utilizes rubber cushioning to absorb impact loads at stroke ends, which helps extend the lifespan of the actuator components.

The piston rod features a thread size of M5 x 0.8, which allows for compatibility with various tooling attachments.

This model is widely used for precise clamping tasks in fluid power systems, factory automation, and mechanical processing sectors.

The body of the SMC MKB16-20LZ is made from aluminium alloy, providing a robust yet lightweight construction suitable for demanding applications.

This cylinder is proof tested up to 15 bar, ensuring safety and durability in high-pressure environments during operation.

The SMC MKB16-20LZ belongs to the MK series of pneumatic cylinders, known for their high-performance capabilities in industrial applications.

Key features include a maximum operating pressure of 1 Mpa, a stroke length of 20mm, double-acting operation, rubber cushioning, and a lightweight design of 123 grams.
