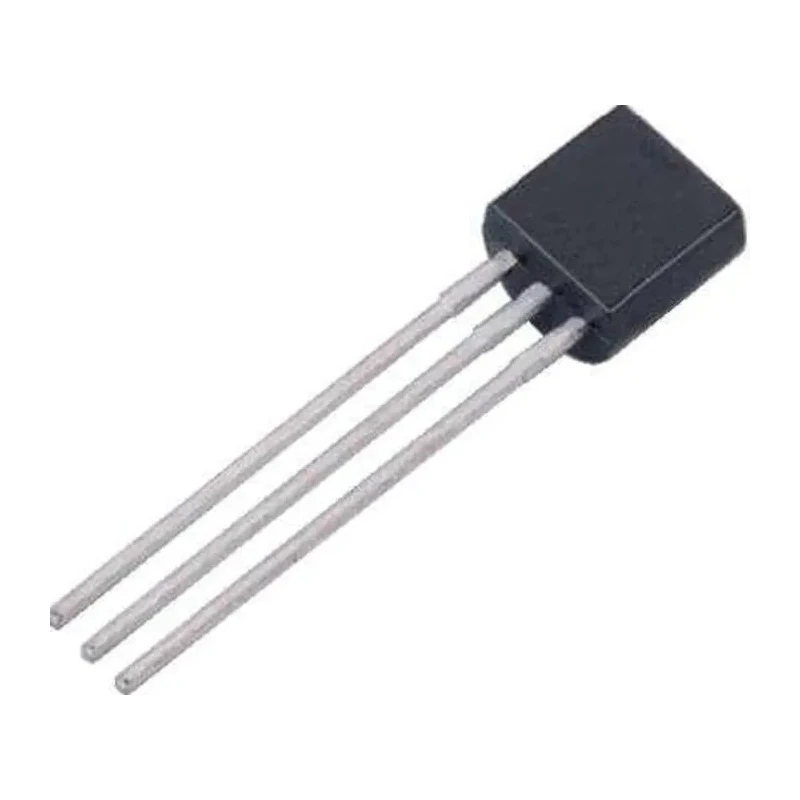

STMicroelectronics Voltage Regulator 35V TO-92 3-Pin L78L15ACZ

STMicroelectronics L78L15ACZ Voltage Regulator is a three-terminal positive fixed voltage regulator in a TO-92 through-hole package, supporting a maximum input voltage of 35V and a maximum operating temperature of 150°C. It is designed to provide robust and reliable voltage regulation in various electronic and industrial applications including local or on-card regulation to minimize noise and distribution problems associated with single-point regulation.

The regulator features an internal current limiting and thermal shutdown mechanism, making it essentially indestructible for enhanced safety and durability. With proper heat sinking, it can supply up to 100mA continuous output current, meeting the power requirements of many low to medium power electronic circuits.

Its low quiescent current of 6.5mA contributes to efficient power usage. Additionally, it requires no external components to provide short-circuit protection, simplifying circuit design and reducing the bill of materials. The device is available with voltage tolerance selections of ±4% (A) or ±8% (C).

This voltage regulator is applicable in automotive electronics, consumer devices, and industrial equipment where stable voltage outputs are critical. Its through-hole mounting and TO-92 package make it suitable for prototyping, hobbyist projects, and production environments requiring simple fixed voltage regulation solutions.

The device’s dimension measures approximately 4.95 mm in length, 3.94 mm in width, and 4.95 mm in height. It operates without automotive standard certification, being primarily used in general-purpose electronics. The regulator's positive polarity allows it to be integrated into various power supply configurations with ease.

Its robust design supports a maximum operating temperature of 150°C, ensuring stable operation under demanding thermal environments. Thanks to its compact TO-92 form factor, it is ideal for equipment with limited board space.

Consider the STMicroelectronics L78L15ACZ voltage regulator for your voltage regulation needs in industrial, laboratory, electronic design, automotive prototype, and HVAC control systems requiring dependable fixed voltage sources. Browse the EnvMart selection of Power Management ICs and Voltage Regulators for complementary components and advanced power solutions.
