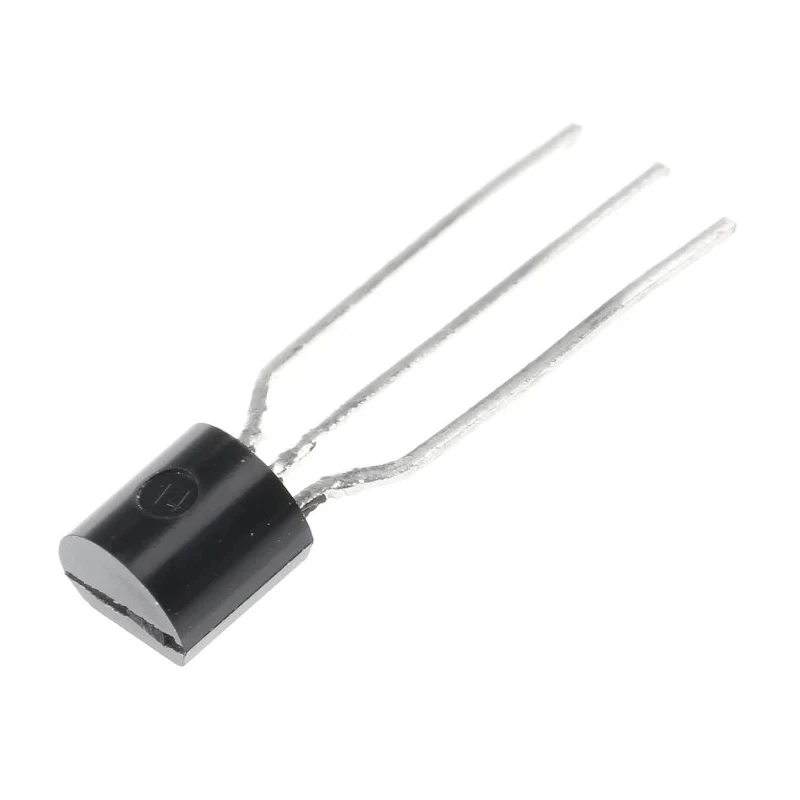

STMicroelectronics Adjustable Shunt Voltage Reference ±1% 2.5V 100mA 3-Pin Through Hole TO-92 TL431ACZ-AP
Specifications
| Country of Origin | India |
|---|---|
| Brand | STMicroelectronics |
| Height | 5mm |
| Length | 5mm |
| Model | TL431ACZ-AP |
| Mount Type | Through Hole |
| Output type | Adjustable |
| Series | TL431 |
| Output Current | 100mA |
| Topology | Shunt |
| Maximum Operating Temperature | 70°C |
| Package Type | TO-92 |
| Minimum Operating Temperature | 0°C |
| Reference Type | Adjustable |
| Maximum Input Voltage | 37V |
| Minimum Input Voltage | 2.47V |
| Pin Count | 3 |
| Automotive Standard | AEC-Q100 |
| Reference Voltage | 2.5V |
| Initial Accuracy | ±1 % |
Key Features
- Provides an adjustable shunt voltage reference with high precision.
- Features a reference voltage of 2.5 volts and ±1% initial accuracy.
- Supports an output current up to 100 milliamps for varied applications.
- Designed for through-hole mounting with a compact 3-pin TO-92 package.
- Operates over a temperature range from 0°C to 70°C for reliable performance.
- Maximum input voltage rating is 37 volts for robust operation.
- Compliant with automotive standard AEC-Q100 for quality assurance.
Product Description
STMicroelectronics TL431ACZ-AP is an adjustable shunt voltage reference IC with an initial accuracy of ±1% and a reference voltage of 2.5 V. It is encapsulated in a 3-pin TO-92 through-hole package suitable for compact PCB designs.
This device supports an output current of up to 100 mA and can handle a maximum input voltage of 37 V, making it ideal for precision voltage regulation and reference in electronic circuits.
Operating temperature ranges from 0°C to 70°C, ensuring stable performance in typical industrial and commercial environments. The compact size with a length and height of 5 mm each makes it an excellent choice for space-constrained applications.
The TL431ACZ-AP complies with the automotive standard AEC-Q100, highlighting its reliability in demanding automotive and industrial applications.
Common use cases include power management ICs, voltage regulation, and precision voltage reference applications in electronics manufacturing, automotive electronics, laboratory equipment, and instrumentation.
Provides an adjustable shunt voltage with ±1% initial accuracy. Suitable for through-hole mounting in TO-92 package. Supports output current of 100 mA with a maximum input voltage of 37 V. Compact 3-pin form factor ideal for tight PCB layouts.
Automotive AEC-Q100 standard ensures quality and durability. Operates reliably within 0°C to 70°C temperature range. Small footprint with 5 mm length and height dimensions. Explore more Voltage Reference ICs and power management solutions on EnvMart.
