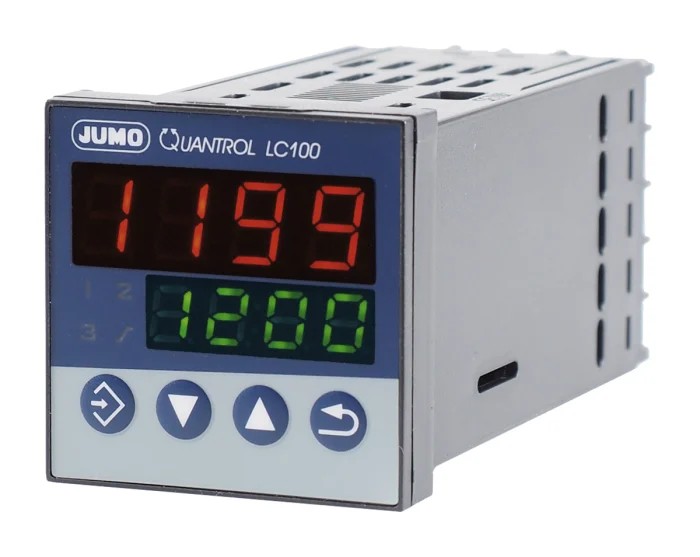

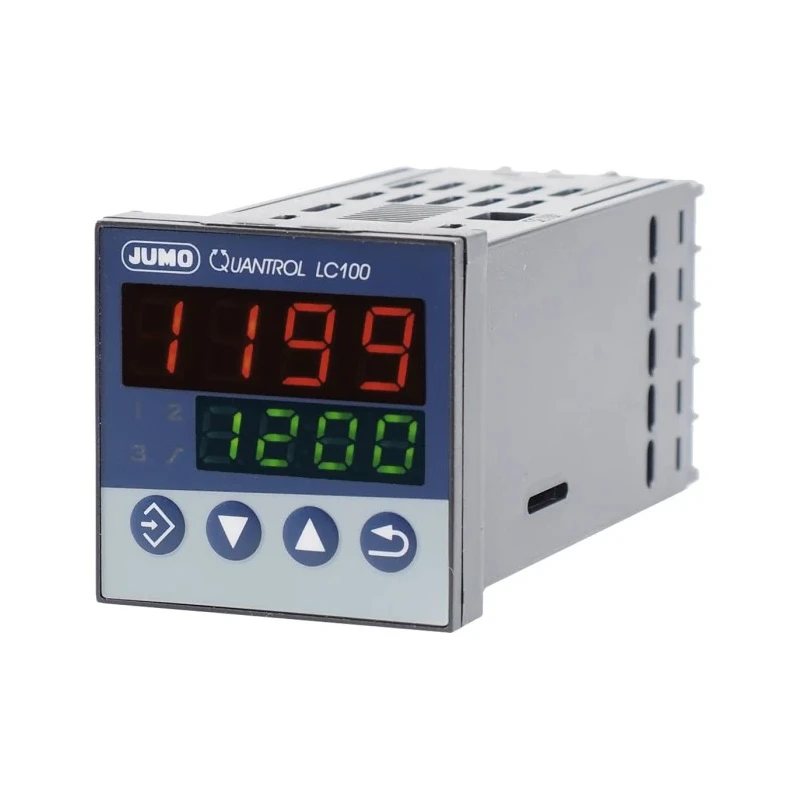

Jumo QUANTROL Panel PID Temperature Controller 1 Input 2 Output Analogue 240V ac/dc On-Off 702031/8-3100-25
Specifications
| Country of Origin | Germany |
|---|---|
| Display Type | LED |
| Brand | Jumo |
| Length | 48mm |
| Model | 702031/8-3100-25 |
| IP Rating | IP65 |
| Mount Type | Panel |
| Number of inputs | 1 |
| Output type | Analogue |
| Series | QUANTROL |
| Input Type | Universal |
| Maximum Operating Temperature | 55°C |
| Control Type | On-Off |
| Minimum Operating Temperature | -5°C |
| Interfaces | USB mini-B) |
| Maximum Current | 3A |
| Number of outputs | 2 |

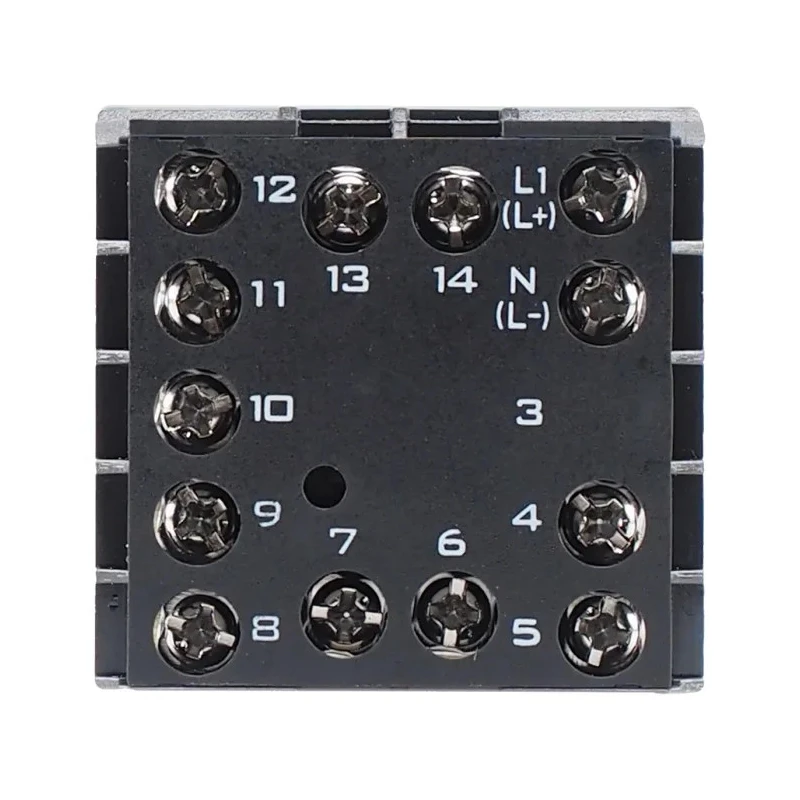

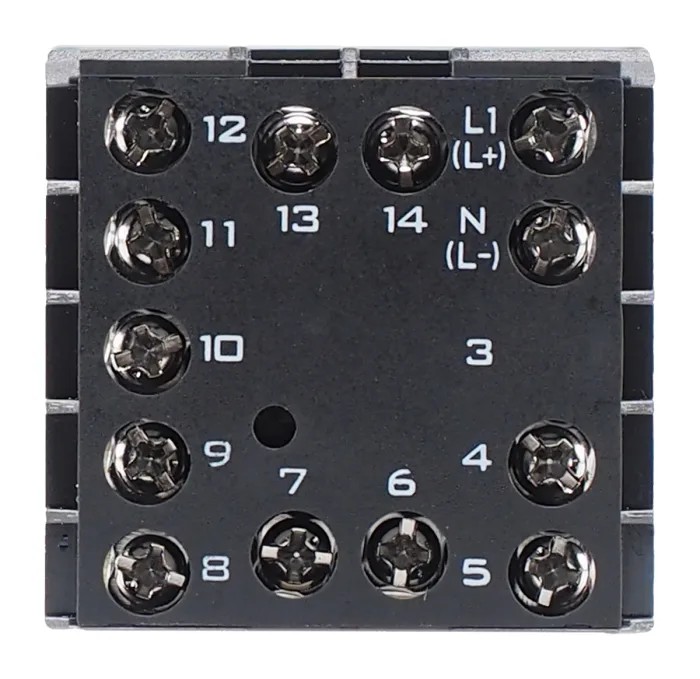

| Terminal type | Screw |
| Maximum Voltage | 230V |
| Maximum Supply Voltage | 240V ac/dc |
| Digital Comms | RS485 |
| Panel Depth | 95mm |
| Firing Mode | Firing curve for pottery kilns |
Key Features
- Universal input compatible with RTD probes, thermocouples, or current/voltage signals.
- Dual outputs include 1 analogue and 1 relay output for versatile control applications.

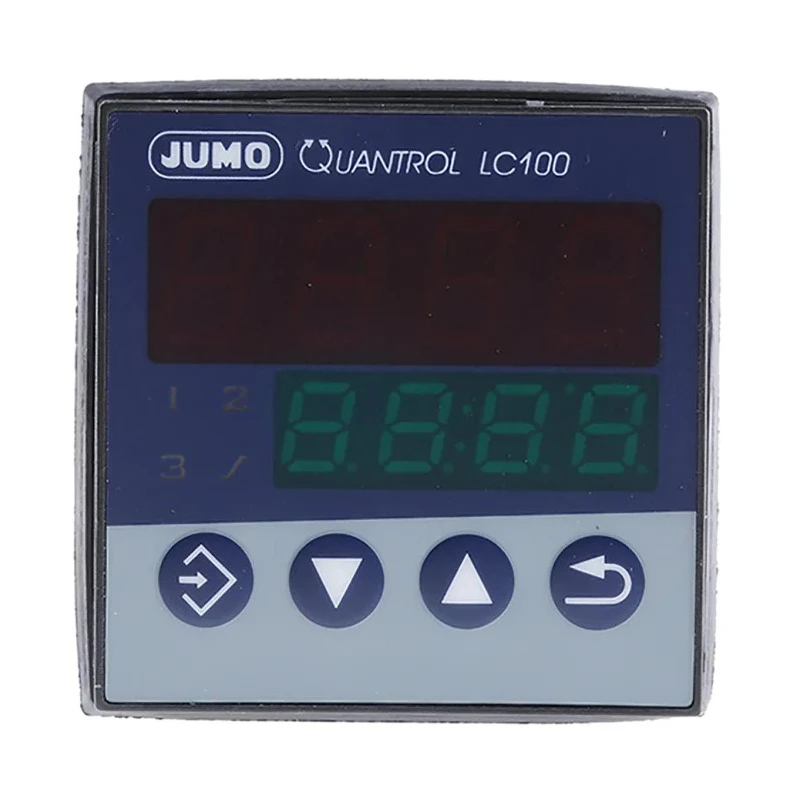

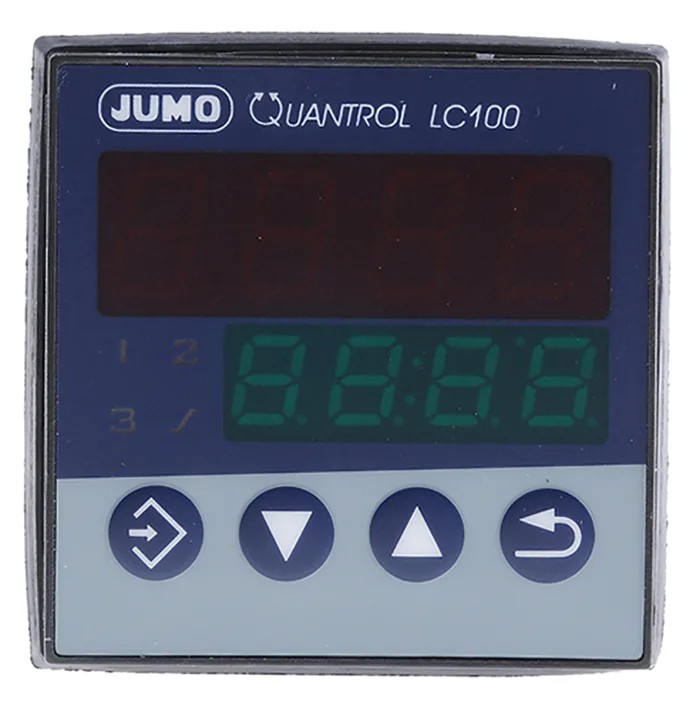

- Equipped with LED display and status indicators for clear operation feedback.
- Features configurable alarms, RS485 Modbus RTU communication, and sensor monitoring.
- Self-optimising auto-tuning ensures accurate PID control for process stability.
- Compact panel mount design with IP65 protection and a 48mm width panel depth of 95mm.
- Supports firing curve mode suitable for pottery kiln applications.
- Manual/automatic modes with ramp and timer functions enhance process flexibility.
Product Description
Jumo 702031/8-3100-25 Panel PID Temperature Controller is a high precision device designed for industrial temperature regulation. With a universal input accepting RTD probes, thermocouples, or current/voltage signals, this controller offers flexibility across diverse applications in industrial automation, HVAC, manufacturing, and process control.
Operating at 240V ac/dc supply voltage, it integrates one analogue output and one relay output to support both continuous and two-state control strategies. The On-Off control type and LED status indicators provide straightforward operation and monitoring.
The controller incorporates advanced features such as configurable alarm limits, RS485 communication with Modbus RTU protocol, sensor monitoring, and a firing curve mode tailored for pottery kiln processes. Self-optimising auto-tuning ensures precision PID control, minimizing process deviation. Additional functions include manual/automatic mode selection, ramp and timer capabilities, and a key lock function to prevent unintended changes.
The compact panel mount device with a 48mm width and 95mm panel depth is IP65 rated, ensuring durability in harsh industrial environments. It complies with relevant DIN EN and UL standards for electrical safety and electromagnetic compatibility.
Universal input compatible with multiple temperature sensors and signals. Two output channels (analogue and relay) for versatile control. Self-optimisation auto-tuning for accurate PID control. RS485 interface with Modbus RTU for networking and diagnostics.
IP65 rated robust panel mount enclosure for industrial settings. Configurable alarms and sensor monitoring enhance safety and reliability. Firing curve functionality suitable for specialized kiln control. Manual and automatic modes with ramp and timer functions for flexible control.
USB mini-B interface for easy setup and parameter adjustment. Compliance with DIN EN 60529, DIN EN 61010, DIN EN 61326-1, IEC 61554, UL 61010-1, CAN/CSA C22.2 No. 61010-1 standards.
This Jumo QUANTROL PID Temperature Controller is ideal for precision temperature regulation in industrial processes, laboratory setups, HVAC systems, and manufacturing automation where exact thermal control is critical. Explore the extensive range of Temperature Controllers and automation products at EnvMart.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
This model features a universal input compatible with RTD probes, thermocouples, or current/voltage signals.
It includes one analogue output and one relay output, allowing for versatile control applications.
The maximum operating temperature is 55°C.
It operates at a maximum supply voltage of 240V ac/dc.
Yes, it features RS485 communication with Modbus RTU protocol for networking and diagnostics.
This model has an IP65 rating, ensuring protection against dust and water ingress.
The panel mount has a width of 48mm and a depth of 95mm.
It includes configurable alarms and sensor monitoring to enhance safety and reliability during operation.
It supports both manual and automatic modes, along with ramp and timer functions for flexible control.
Yes, it includes a firing curve mode suitable for pottery kiln applications.
It is equipped with an LED display that provides clear operation feedback.
The Jumo QUANTROL PID Temperature Controller is manufactured in Germany.
