STMicroelectronics 1-Channel Linear Voltage Regulator 5V 2A TO-220 3-Pin L78S05CV

Free Delivery in India | Lowest Global Shipping Charges

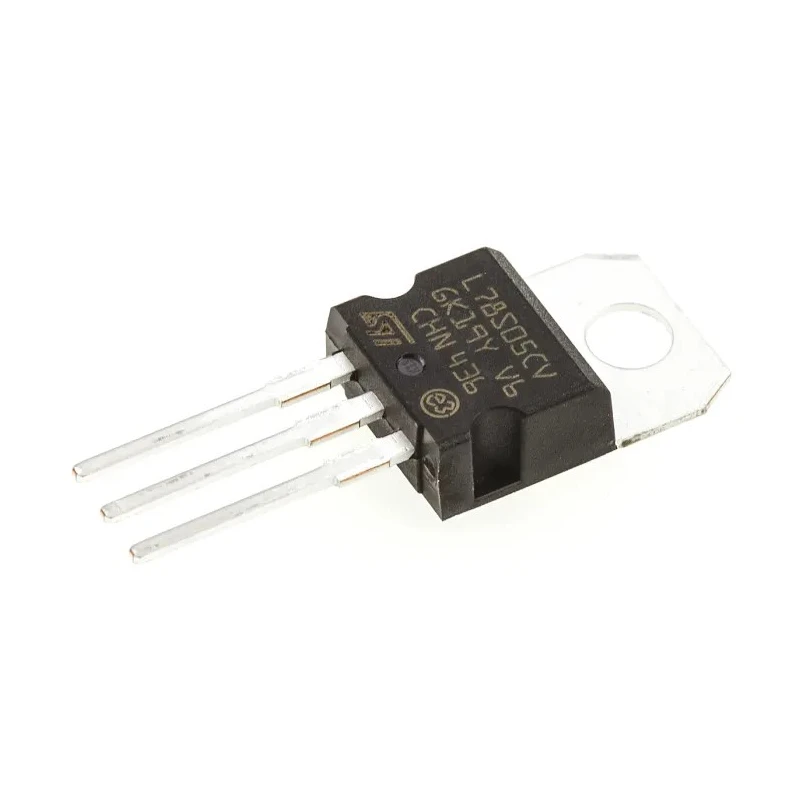

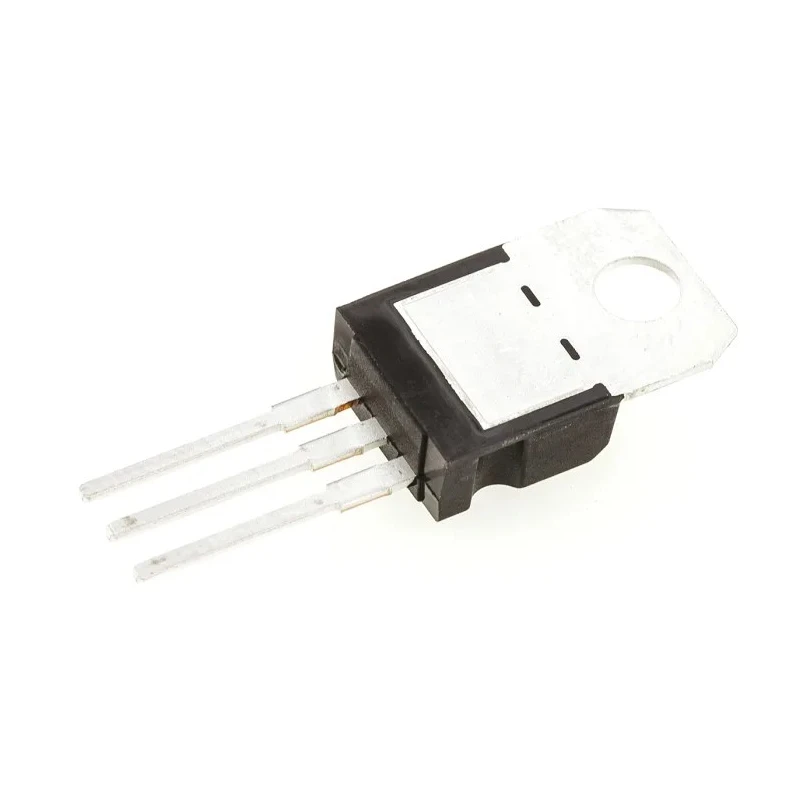

STMicroelectronics 1-Channel Linear Voltage Regulator 5V 2A TO-220 3-Pin L78S05CV

Name: STMicroelectronics 1-Channel Linear Voltage Regulator 5V 2A TO-220 3-Pin L78S05CV
Brand: STMicroelectronics
SKU: 219351
Price: 0.59 USD
Availability: InStock



Category Voltage Regulator Brand STMicroelectronics Condition New

Specifications

Country of Origin	India
Brand	STMicroelectronics
Height	9.15mm
Length	10.4mm
Model	L78S05CV
Width	4.6mm
Mount Type	Through Hole
Output type	Fixed
Series	L78Sxx
Output Current	2A
Maximum Operating Temperature	150°C
Package Type	TO-220
Load Regulation	100 mV
Minimum Operating Temperature	0°C
Polarity	Positive
Regulator Type	Linear Voltage
Number of outputs	1
Maximum Input Voltage	35V
Output Voltage	5V
Quiescent Current	8mA
Line Regulation	100 mV
Minimum Input Voltage	8V
Pin Count	3

Key Features

The device provides a fixed positive voltage output with robust thermal and short circuit protection.
It operates within an input voltage range of 8V to 35V and supports load currents up to 2 A.
Line and load regulation are both rated at 100 mV ensuring stable output voltage.
Compact package dimensions of 10.4 mm length, 4.6 mm width, and 9.15 mm height enable easy PCB integration.
Quiescent current is low at 8 mA, contributing to efficient power use.
The regulator supports operating temperatures from 0°C up to 150°C for extended durability.
It is ideal for use in power management circuits requiring fixed linear voltage regulation.
The device ensures safe area protection, internal current limiting, and thermal shutdown.

Product Description

The STMicroelectronics L78S05CV is a reliable linear voltage regulator designed to deliver a fixed positive 5V output with a maximum current of 2 A. Packaged in the popular TO-220 3-pin through-hole design, this regulator is ideal for integration into power management circuits requiring stable voltage supply.

This regulator operates with input voltages ranging from 8V to 35V, supporting thermal shutdown and short circuit protection features that enhance robustness during operation. The device offers line and load regulation of 100 mV each, ensuring minimal voltage variation under different load conditions.

Compact in size with dimensions of 10.4 mm length, 4.6 mm width, and 9.15 mm height, the L78S05CV fits easily onto PCB layouts. It has a low quiescent current of 8 mA which optimizes energy efficiency. The operating temperature range of 0°C to 150°C allows usage in various industrial and commercial environments.

This voltage regulator is particularly suited for applications in electronics, industrial automation, instrumentation, and embedded systems requiring fixed 5V supply lines. Safety features such as internal current limiting and output transition safe operating area (SOA) protection further safeguard connected circuitry.

The device provides fixed 5V linear voltage regulation. Built-in thermal and short-circuit protection ensures device safety. Supports a maximum load current of 2 A. Line and load regulation at 100 mV guarantee output stability.

Compact TO-220 3-pin package facilitates easy PCB mounting. Operates in a wide temperature range from 0°C to 150°C. Low quiescent current enhances power efficiency. Ideal for industrial, instrumentation, and commercial power supplies.

Reliable local on-card voltage regulation to reduce distribution issues.

Choose STMicroelectronics L78S05CV for robust, fixed linear voltage regulation in demanding electronic applications. Browse more power management ICs and Voltage Regulators at EnvMart to find compatible components for your designs.
