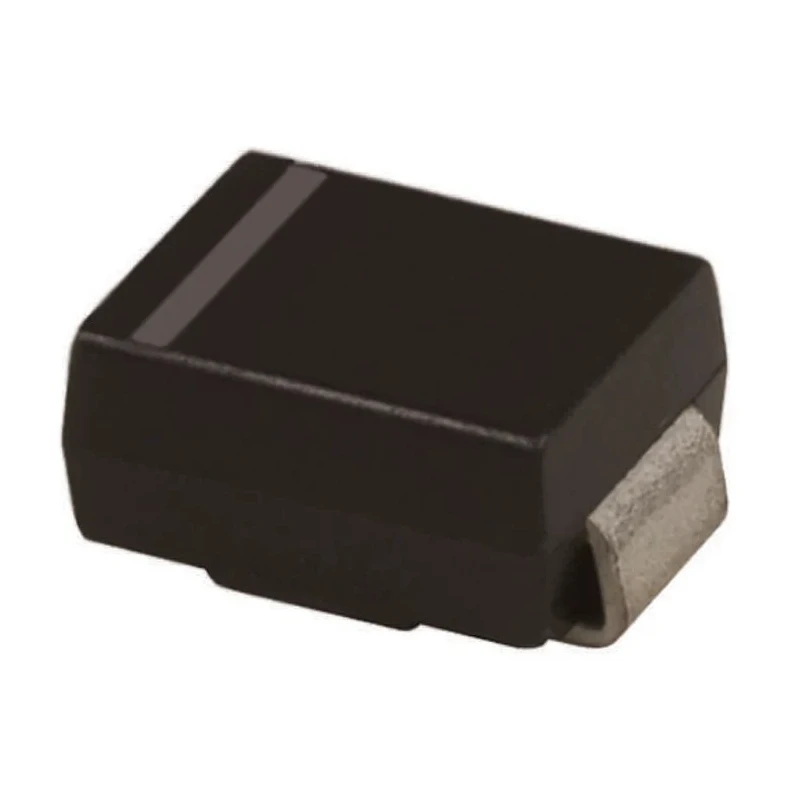

STMicroelectronics 1-Element Uni-Directional TVS Diode 600 W, 2-Pin DO-214 SMBJ30A-TR

STMicroelectronics SMBJ30A-TR is a 1-Element Uni-Directional Transient Voltage Suppressor (TVS) diode designed to protect electronic circuits from voltage transients and surges. This device can dissipate up to 600 W of peak pulse power, making it suitable for safeguarding sensitive semiconductor devices during transient voltage events.

The diode features a single configuration with a uni-directional voltage clamping characteristic, mounted conveniently in a surface-mount DO-214 package with a compact form factor of 4.6 mm length, 3.95 mm width, and 2.45 mm height. It ensures efficient PCB integration for various industrial and commercial electronic assemblies.

This TVS diode exhibits a minimum breakdown voltage of 33.3 V and a maximum reverse stand-off voltage of 30 V, providing precise transient voltage suppression with a clamping voltage of 64.3 V during peak surge events. The device operates over a wide temperature range, from -55°C up to 150°C, ensuring reliability in harsh operating environments.

The maximum peak pulse current capability of 62 A ensures robust transient handling without compromising circuit integrity. Additionally, the diode features very low maximum reverse leakage current of 200 nA, contributing to energy efficiency and minimization of leakage losses in sensitive circuits.

STMicroelectronics SMBJ30A-TR TVS diodes are widely applicable in protecting electronic components in industrial equipment, power supplies, communication devices, and automotive electronics where transient voltage suppression is critical to maintain system stability and prevent damage.

Single diode configuration designed for uni-directional voltage protection. Surface mount DO-214 package for compact PCB integration. Rated for 600 W peak pulse power dissipation. High reliability with operating temperature range from -55°C to 150°C.

Effective transient voltage clamping with 33.3 V breakdown. Low reverse leakage current enhances efficiency. Supports peak pulse current up to 62 A. Ideal for various industrial and electronic protection applications. Explore the wide range of TVS Diodes by STMicroelectronics on EnvMart for dependable transient voltage protection solutions.
