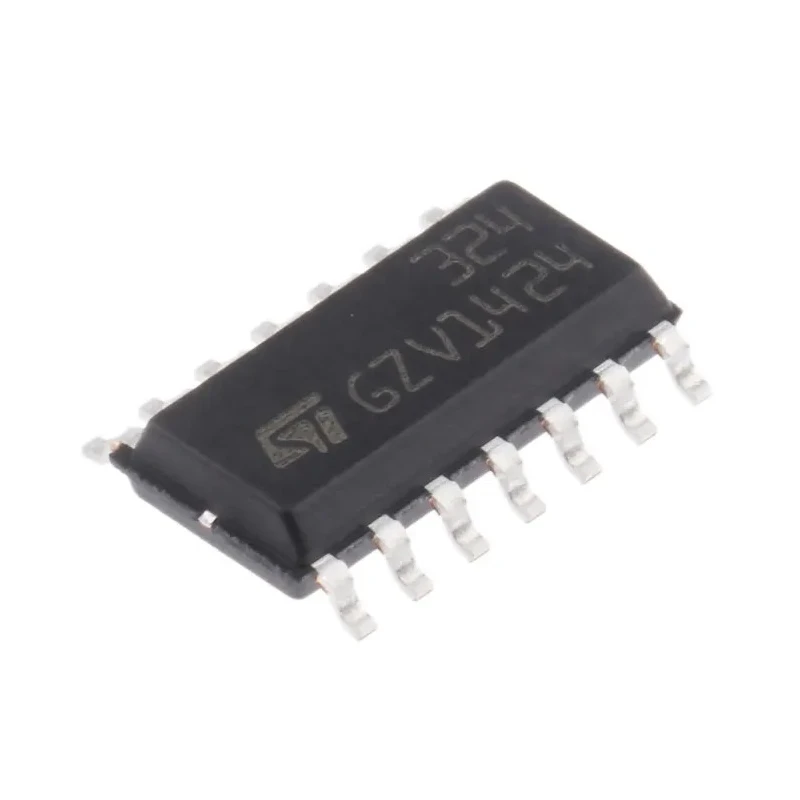

STMicroelectronics Operational Amplifier 1.3 MHz 14-Pin 30V SOIC LM324DT

STMicroelectronics LM324DT is a versatile operational amplifier designed for a broad range of electronics applications. It features four independent amplifiers integrated in a single 14-pin SOIC package, suitable for surface mounting in compact PCB designs. The amplifier supports a wide supply voltage range from 5V up to 30V, making it ideal for low voltage single-supply operation.

Its 1.3 MHz gain bandwidth product enables it to handle signals requiring moderate frequency response, with a low input bias current of 200 nA and an input offset voltage of 9 mV that help maintain signal accuracy. The device's low power consumption per amplifier of 375 μA helps extend battery life or reduce power dissipation in embedded systems.

The LM324DT also offers a slew rate of 0.4 V/μs and output current capability of 70 mA, supporting a range of amplification tasks in industrial, consumer electronics, instrumentation, and control systems. It operates reliably within an ambient temperature range of 0°C to 70°C. The package dimensions of 8.75 mm length, 4 mm width, and 1.65 mm height enable efficient PCB space utilization.

Manufactured complying with RoHS standards, this quad operational amplifier is an environmentally responsible choice for electronics designers. The device series LM124, LM224, and LM324 are well-known for their reliability and performance in a variety of laboratory, industrial, and consumer applications.

Includes four independent operational amplifier channels in one package. Offers wide gain bandwidth product of 1.3 MHz for versatile applications. Operates on a supply voltage range from 5V to 30V. Compact SOIC surface-mount package with 14 pins measuring 8.75mm x 4mm x 1.65mm.

Low input bias current of 200 nA and input offset voltage of 9 mV ensures accuracy. Low supply current per amplifier at 375 μA supports energy efficiency. Slew rate of 0.4 V/μs suitable for general purpose amplification needs.

Wide operating temperature range from 0°C to 70°C for reliable performance. Output current capability of 70 mA supports various load requirements. RoHS compliant, ensuring environmental and regulatory safety standards.

Ideal for use in industrial, manufacturing, laboratory instrumentation, and HVAC control electronics, the LM324DT Operational Amplifier offers dependable performance and flexibility. Explore the category for similar semiconductor amplifiers and components at EnvMart for your project requirements.
