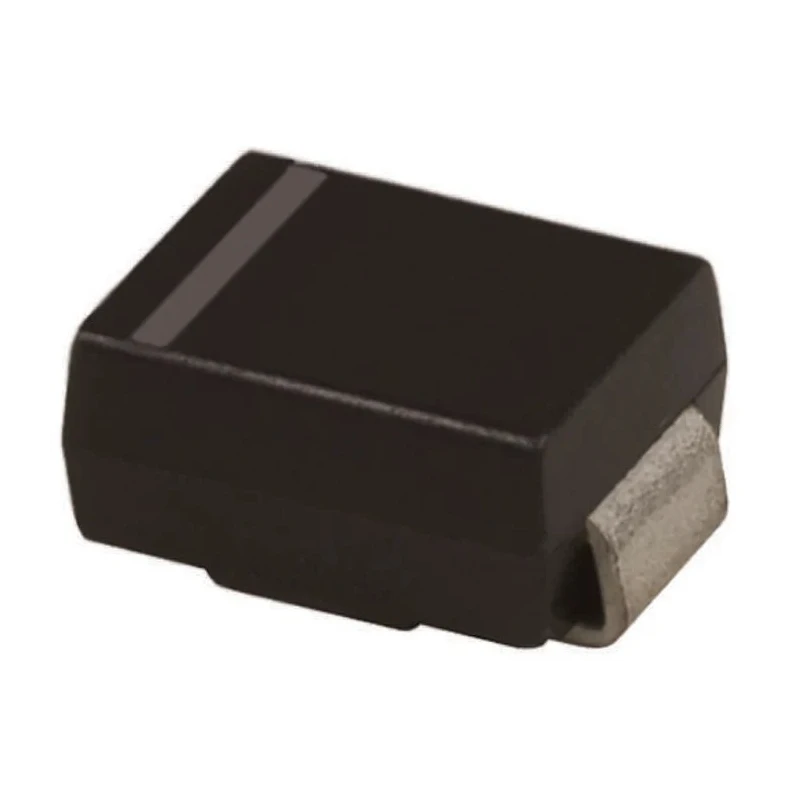

STMicroelectronics 1-Element Bi-Directional TVS Diode 600 W Peak Pulse Power Surface Mount DO-214 SM6T30CA

STMicroelectronics SM6T30CA is a high-reliability 1-element bi-directional transient voltage suppressor (TVS) diode designed for safeguarding sensitive electronic components from transient voltage spikes. This device offers peak pulse power dissipation of 600 W in a compact surface mount DO-214 package, making it suitable for a variety of industrial, electronic, and power applications.

The SM6T30CA diode features a single element, configured for bi-directional voltage suppression, providing superior transient voltage protection by clamping voltage surges effectively. Its minimum breakdown voltage is rated at 28.5 V, with a maximum reverse stand-off voltage of 25.6 V. The clamping voltage of 53.5 V at peak pulse ensures electrical circuits remain safe under extreme transient events.

Operating temperature range from -55°C to 150°C makes the diode highly versatile, capable of enduring harsh environments in industrial, laboratory, manufacturing, and commercial sectors. The device’s small footprint with 4.6 mm length, 3.95 mm width, and 2.45 mm height allows for automated surface mount technology (SMT) assembly, increasing production efficiency.

The maximum peak pulse current of 75 A and low maximum reverse leakage current of 200 nA enhance device reliability and circuit performance during overvoltage events. The diode complies with the SM6T series specifications, optimized for use in discrete semiconductor applications requiring transient overvoltage protection.

This TVS diode is ideal for use in power and connector circuits, electronic modules, and semiconductor devices requiring transient voltage suppression. It helps protect against damage caused by inductive load switching, lightning surges, and other transient events in industrial and commercial systems.

Package Contents: 1 Pc STMicroelectronics SM6T30CA 1-Element Bi-Directional TVS Diode, 600 W, 2-Pin DO-214 surface mount.
