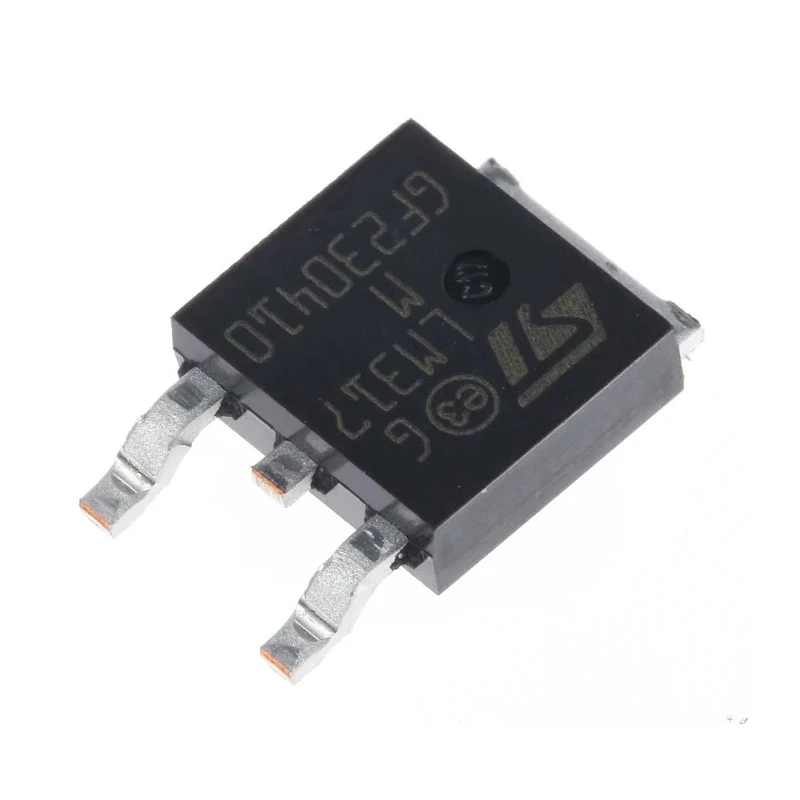

STMicroelectronics Voltage Regulator 40V 3-Pin Surface Mount LM317MDT-TR
Specifications
| Country of Origin | India |
|---|---|
| Voltage | Regulators STMicroelectronics LM317MDT-TR, Voltage Regulator 40V 3-Pin RS Stock |
| Brand | STMicroelectronics |
| Height | 2.4mm |
| Length | 6.6mm |
| Model | LM317MDT-TR |
| Width | 6.2mm |
| Mount Type | Surface |
| Series | LM317 |
| Maximum Operating Temperature | 125°C |
| Polarity | Positive |
| Maximum Input Voltage | 40V |
| Output Voltage Range | 1.2 V to 37 V at 500 mA |
| Standards/Approvals | ECOPACK |
| Pin Count | 3 |
Key Features
- Adjustable output voltage range from 1.2 V to 37 V at 500 mA load current.
- Offers line regulation of 0.01% and load regulation of 0.1%.
- Incorporates thermal overload, short circuit protection, and safe area compensation.
- Compact surface mount package measuring 6.6mm length, 6.2mm width, and 2.4mm height.
- Designed for use in industrial, power management, and electronic circuit applications.
- Features ECOPACK compliant packaging promoting environmental responsibility.
- Maximum operating temperature of 125°C for reliable performance under heat stress.
- Easy to use with voltage output selectable via resistive divider.
Product Description
STMicroelectronics LM317MDT-TR is a high-quality monolithic integrated circuit voltage regulator designed for positive linear regulation applications. It operates with an adjustable output voltage range of 1.2 V to 37 V at currents up to 500 mA, making it suitable for a broad range of power management and electronic system designs.
The device comes in a compact surface mount package (with dimensions 6.6mm length x 6.2mm width x 2.4mm height) featuring 3 pins. It incorporates essential built-in protections such as thermal overload protection, short circuit protection, and safe area compensation, ensuring stable and reliable operation under adverse conditions.
With a maximum input voltage of 40 V and an operating temperature up to 125°C, this Voltage Regulator is robust for industrial settings and demanding environments. It provides excellent line regulation of 0.01% and load regulation of 0.1%, aiding in maintaining stable output voltage despite variations in input voltage or load.
The LM317MDT-TR's output voltage can be precisely set using a simple resistive divider, which allows for versatile application in custom electronic circuits requiring specific voltage levels. Its positive polarity and standard 3-pin configuration make it compatible with numerous designs and prototypes.
Additionally, the regulator is packaged according to ECOPACK standards, reflecting STMicroelectronics' commitment to environmentally friendly manufacturing. Typical applications include power supplies, industrial control systems, and hobbyist projects needing adjustable voltage regulation.
Adjustable output voltage from 1.2 V to 37 V at 500 mA load current. Compact surface mount 3-pin package for space-saving layouts. Thermal overload, short circuit protection, and safe area compensation ensure reliability.
Maximum operating temperature of 125°C supports demanding environments. Line regulation of 0.01% and load regulation of 0.1% for stable voltage output. Positive polarity and easy usage via resistive voltage divider. Suitable for industrial, laboratory, and electronic system power management.
Compliant with ECOPACK standards for environmental safety. Robust device for custom voltage regulation needs in electronics design. Explore more power management ICs like the LM317MDT-TR on EnvMart to enhance your electronic projects and industrial applications.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The LM317MDT-TR has an adjustable output voltage range from 1.2 V to 37 V at a load current of 500 mA.
This model can handle a maximum input voltage of 40 V.
The dimensions of this voltage regulator are 6.6 mm in length, 6.2 mm in width, and 2.4 mm in height.
The maximum operating temperature for this unit is 125°C, making it suitable for demanding environments.
It incorporates thermal overload protection, short circuit protection, and safe area compensation for reliable operation.
The output voltage can be set using a simple resistive divider, allowing for customization in electronic circuit designs.
The LM317MDT-TR offers line regulation of 0.01%, ensuring stable output voltage despite variations in input voltage.
This voltage regulator is suitable for power supplies, industrial control systems, and various electronic circuit applications.
This model features a standard 3-pin configuration, making it compatible with many designs and prototypes.
Yes, it is packaged according to ECOPACK standards, reflecting a commitment to environmentally friendly manufacturing.
The LM317MDT-TR is designed for surface mount applications, which helps save space in electronic layouts.
It provides load regulation of 0.1%, which aids in maintaining a stable output voltage under varying load conditions.
