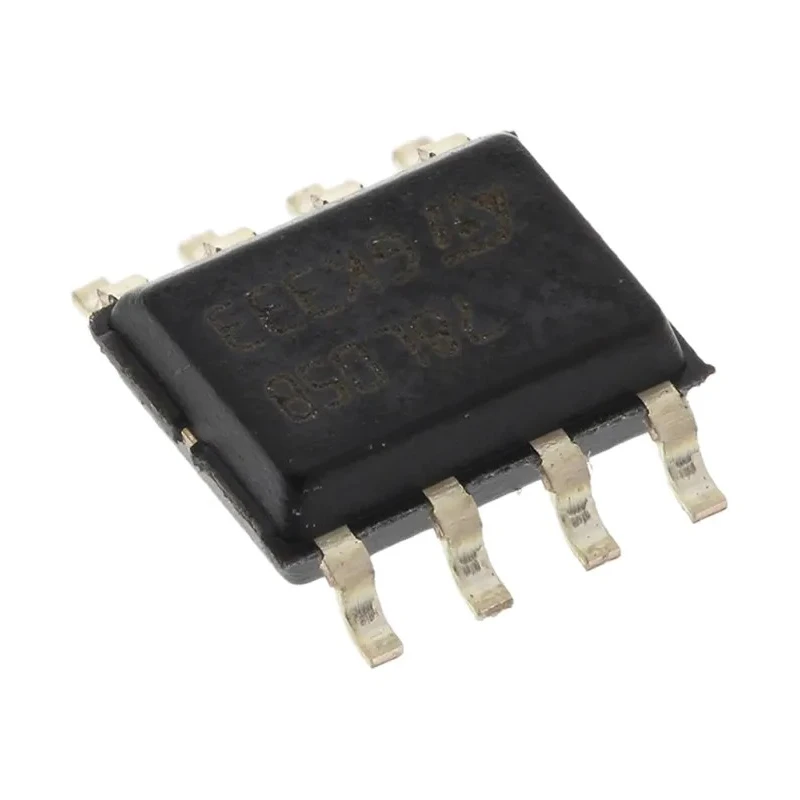

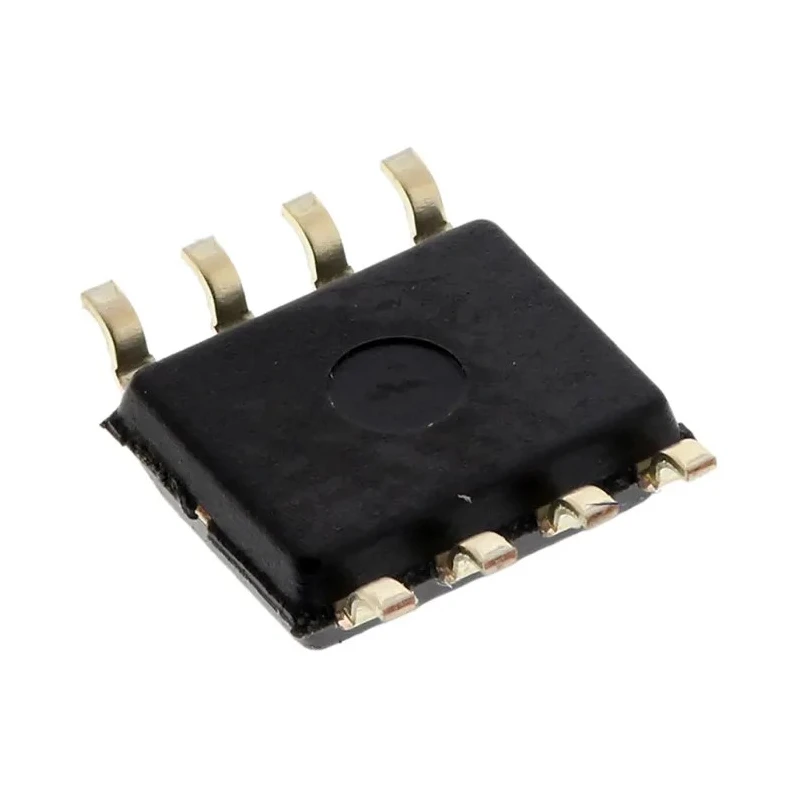

STMicroelectronics 100mA Linear Positive Voltage Regulator 30V SOIC 8-Pin L78L05ABD13TR

STMicroelectronics L78L05ABD13TR is a three-terminal linear positive voltage regulator designed to provide a stable voltage output. It is built to operate in a range up to a maximum input voltage of 30V and supply a continuous output current up to 100mA, making it suitable for various power management applications in electronic circuits.

This voltage regulator features internal current limiting and thermal shutdown to protect both the device and the connected circuit from damage due to overload or overheating. The device is housed in a compact SOIC 8-pin surface-mount package measuring 5 mm in length, 4 mm in width, and 1.25 mm in height, facilitating easy integration in printed circuit boards where space is limited.

The L78L05ABD13TR is designed to operate efficiently with a quiescent current of 6mA, making it energy efficient for battery-powered and other low-power applications. The device can reliably operate in temperatures up to 125°C, supporting use in demanding environments including industrial, laboratory, and manufacturing equipment.

Provides stable positive voltage regulation up to 30V input voltage. Supports maximum output current of 100mA with internal current limiting. Includes thermal shutdown protection for enhanced reliability. Compact SOIC 8-pin package for surface mounting and easy PCB integration.

Low quiescent current of 6mA optimizes power efficiency. Operates at a maximum temperature of 125°C suitable for harsh conditions. Eight-pin configuration supports versatile electronic circuit designs.

This STMicroelectronics voltage regulator is ideal for use in electronic components, power and connectors, semiconductor power management integrated circuits, and other industrial electrical applications requiring reliable voltage regulation.
