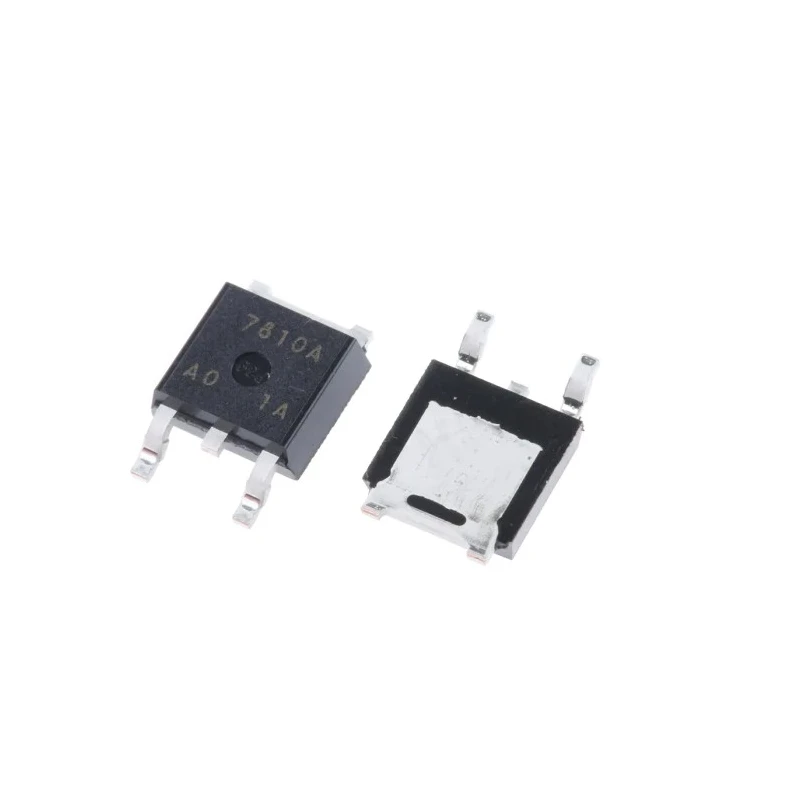

Nisshinbo Micro Devices 5-Channel Linear Voltage Regulator 1.5A 10V TO-252 3-Pin NJM7810DL1A-TE1

Nisshinbo Micro Devices NJM7810DL1A-TE1 is a 5-Channel Linear Voltage Regulator designed for stable and efficient power management in electronic applications. It provides a fixed output voltage of 10 volts with a maximum output current of 1.5 amperes. Packaged in a TO-252 3-pin surface mount case, this device is ideal for compact electronic designs requiring reliable voltage regulation.

The NJM7810DL1A-TE1 features internal thermal overload protection and current limiting to safeguard circuits against damage. It achieves line regulation and load regulation of 200 mV, maintaining consistent voltage under varying operating conditions. The regulator’s low quiescent current of 6 mA helps minimize power loss, enhancing overall circuit efficiency.

Operating over a wide temperature range from -40°C to 85°C, this device is well suited for industrial, laboratory, and commercial electronic systems. The positive polarity design fits standard voltage regulation applications. This regulator complies with RoHS directives, ensuring reduced environmental impact.

The NJM7810DL1A-TE1 is part of the NJM78xx series by New Japan Radio, renowned for high-quality bipolar linear voltage regulators. Applications include on-card regulation where single point regulation challenges occur, making it suitable for power management IC needs in various electronics and industrial assemblies.

This linear regulator provides a stable output voltage of 10 volts. The device supports an output current of up to 1.5 amperes. It features 5 output channels typical for multi-output applications. Integrated thermal overload protection and current limiting enhance device reliability.

Compact TO-252 package allows efficient surface mounting. Quiescent current is low at 6 mA, optimizing power consumption. Operating temperature range from -40°C to 85°C ensures performance under various conditions. Designed with positive polarity for general voltage regulation tasks.

The regulator exhibits line and load regulation of 200 mV each for voltage stability. Complies with RoHS standards for environmental safety.
