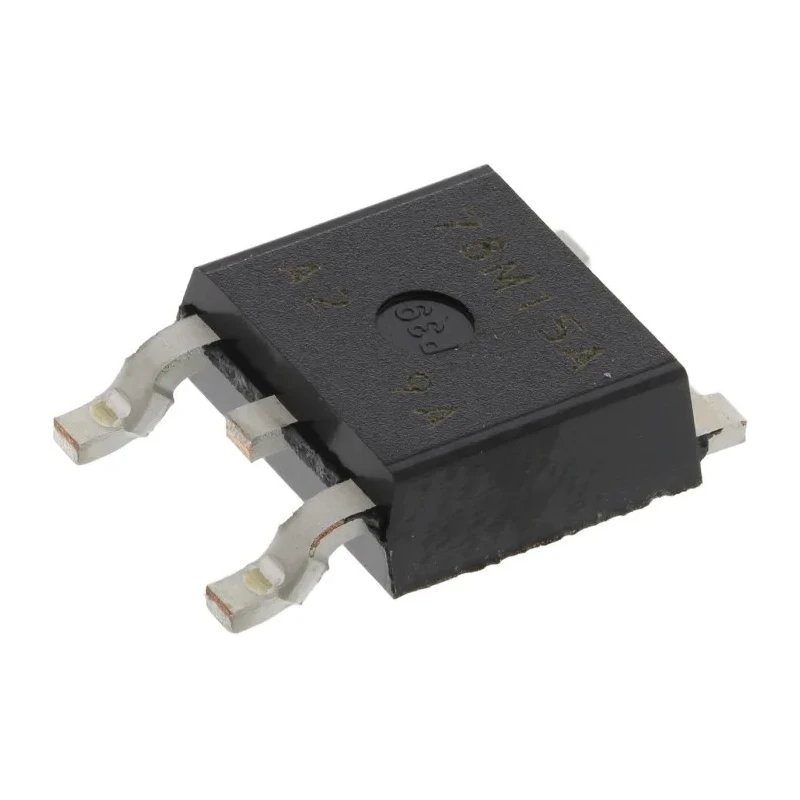

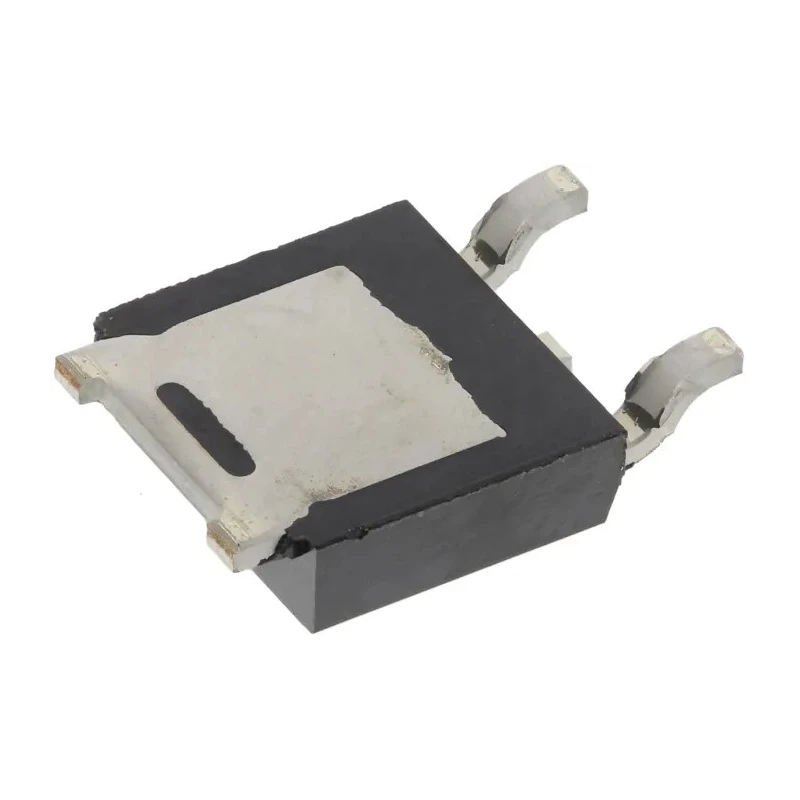

Nisshinbo Micro Devices 5-Channel Linear Voltage Regulator 500mA 15V TO-252 3-Pin NJM78M15DL1A-TE1

The Nisshinbo Micro Devices NJM78M15DL1A-TE1 is a high-performance 5-channel linear voltage regulator designed for reliable power management in various electronic components and industrial applications. This device provides a fixed output voltage of 15V with a continuous output current capacity of 500mA, making it suitable for circuits requiring stable voltage supply and efficiency.

Its TO-252 3-pin surface-mount package ensures a compact footprint, facilitating high-density PCB layouts. The device operates with a low quiescent current of 4.1mA, maintaining energy efficiency. The 5 output channels allow simultaneous voltage regulation across multiple circuit nodes while preserving consistent line and load regulation performance.

Key specifications include a line regulation of 60 mV and load regulation of 150 mV, which contribute to maintaining voltage stability under varying electrical loads. This voltage regulator supports input voltages up to 35V and functions effectively within a wide operating temperature range spanning from -40°C to 85°C, making it suitable for industrial environments with fluctuating temperature conditions.

The positive polarity linear design and compliance with RoHS standards enhance its environmental compatibility and use in regulated markets. The precise dimensions - length 6.54mm, width 6.04mm, and height 2.29mm - allow for integration in compact assemblies without compromising performance.

This device is ideal for power management ICs in industrial automation, consumer electronics, and telecommunications equipment where steady voltage is critical. It supports efficient system operation by mitigating voltage fluctuations and ensuring the longevity of connected components.

Provides stable linear voltage regulation for sensitive electronic circuits. Capable of delivering a continuous output current of 500mA. Features 5 output channels in a compact package format. Designed for surface mount with positive polarity and fixed output type.

Operates efficiently within a temperature range of -40°C to 85°C. Complies with RoHS standards ensuring environmental safety. Compact TO-252 package dimensions: 6.54mm length, 6.04mm width, 2.29mm height. Quiescent current of 4.1mA enables low power consumption.

Suitable for use in industrial, electronic component manufacturing, and power management applications. Explore more precision voltage regulators in the Electronics & Electricals category at EnvMart for your technical and industrial requirements.
