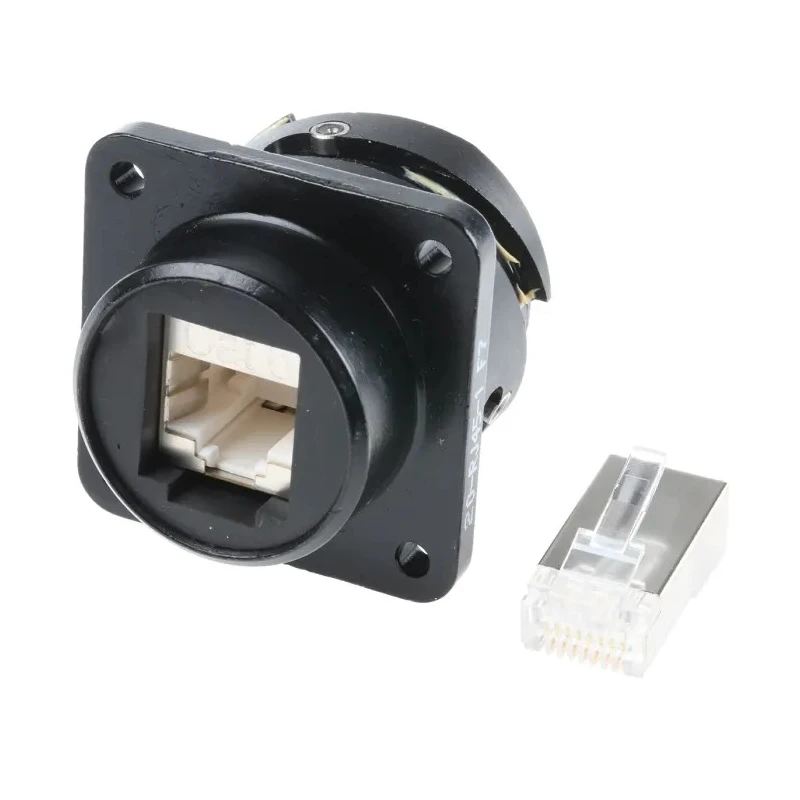

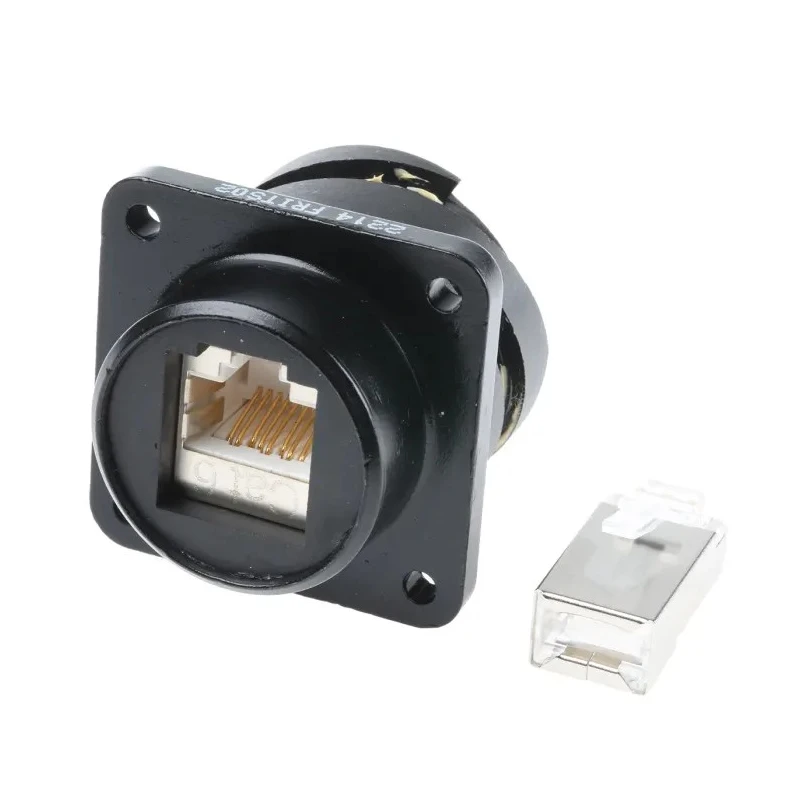

Glenair ITS Series RJ45 Connector Female Panel Mount Cat6 Straight 1 Port

Glenair ITS Series RJ45 Connector FRITS0220-RJ45-1F7 is a rugged industrial-grade female RJ45 Ethernet connector designed for panel mount applications. This Cat6 straight orientation single port connector meets stringent MIL-DTL-5015 specifications, ensuring exceptional durability and reliability in demanding environments. Engineered for harsh industrial, manufacturing, telecom, and electrical system use, it provides a secure and waterproof (IP67) connection when mated.

The connector supports Ethernet communication speeds of 10BaseT, 100BaseTx, and 1000BaseT, catering to modern networking requirements. Its working voltage range of 30 to 42 VAC RMS/VDC and a maximum current rating of 1.5A at 20°C guarantee stable signal and power transmission.

Thermal performance ranges from a minimum operating temperature of -40°C to a maximum of 68°C, enabling functionality even in extreme temperature conditions. The compact form factor with dimensions of 38mm (length) x 38mm (width) x 34.5mm (depth) allows ease of integration within panel layouts while maintaining industrial robustness.

The connector includes a reverse bayonet coupling and black zinc cobalt plating, enhancing mechanical strength and corrosion resistance. Nitrile inserts contribute to achieving the IP67 waterproof rating, making the unit suitable for outdoor and hazardous applications.

Manufactured in Italy to high precision standards, this Glenair connector supports applications in industrial automation, electrical controls, data acquisition systems, network infrastructure, and telecommunications. It is ideal for installations requiring reliable, sealed Ethernet connections with high data integrity and environmental protection.

Constructed for panel mount installation with a durable receptacle design. Supports Cat6 LAN category, suitable for 10BaseT to 1000BaseT Ethernet connections. Features IP67 rating providing waterproof protection when mated.

Operates reliably from -40°C up to 68°C ensuring performance in harsh environments. Dimensioned compactly with 38mm length, 38mm width, and 34.5mm depth for space-efficient installations. Engineered for maximum current rating of 1.5A at 20°C.

High dielectric withstand voltage of 1000V enhances insulation and safety. Complies with Glenair MIL-DTL-5015 military connector standards for ruggedness. Manufactured in Italy assuring high quality and precision. Explore a wide range of industrial-grade connectors and Ethernet components in the EnvMart collection for your electrical and electronic system needs.
