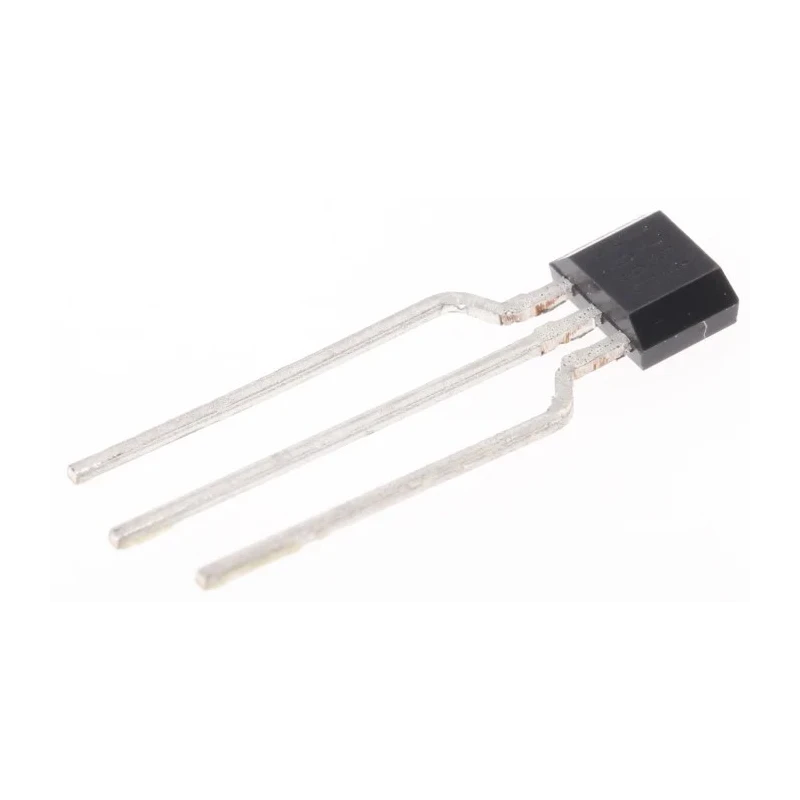

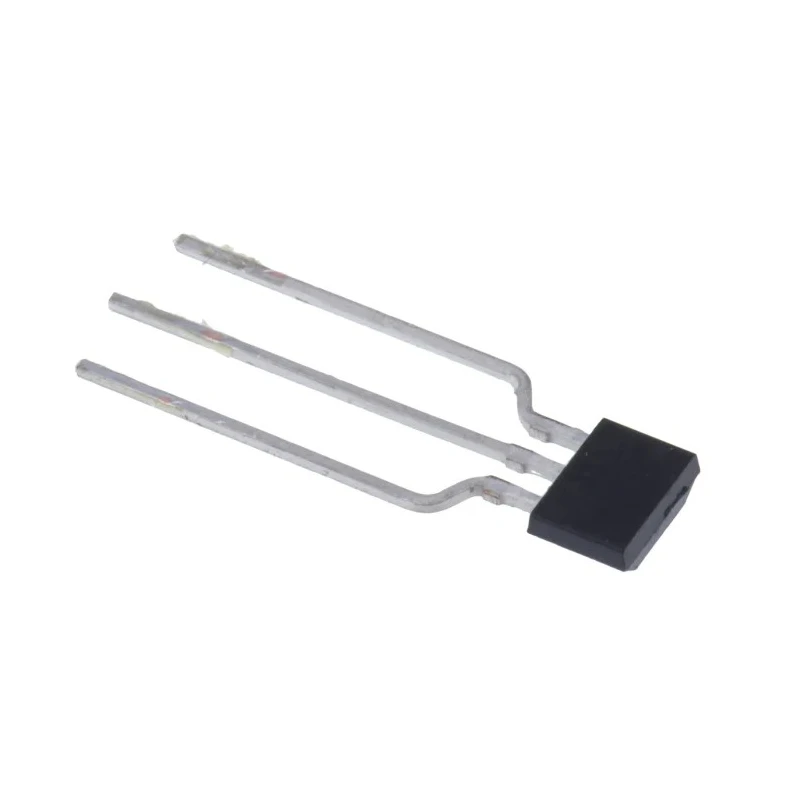

DiodesZetex Through Hole Hall Effect Latch Sensor 3.5 V to 20 V 3-Pin SIP-3 AH1751-PG-A-A
Specifications
| Country of Origin | China |
|---|---|
| Brand | DiodesZetex |
| Height | 3.2mm |
| Length | 4.3mm |
| Model | AH1751-PG-A-A |
| Technology | Hall Effect |
| Sensor Type | Hall Effect Sensors |
| Width | 1.6mm |
| Mount Type | Through Hole |
| Series | AH1751 |
| Maximum Operating Temperature | 125°C |
| Package Type | SIP-3 |
| Minimum Operating Temperature | -40°C |
| Standards/Approvals | RoHS |
| Pin Count | 3 |
| Maximum Supply Voltage | 20V |
| Minimum Supply Voltage | 3.5V |
| Supply Current | 6mA |
| Magnetic Type | Bipolar |
Key Features
- This Hall Effect latch sensor features bipolar magnetic operation requiring opposite polarity fields for activation and deactivation.
- The device supports a supply voltage range from 3.5 volts minimum to 20 volts maximum for versatile use.
- It is packaged in a compact SIP-3 through hole format with three pins for easy PCB insertion.
- Operating temperature spans from -40°C to 125°C ensuring reliability under harsh conditions.
- The sensor consumes a low supply current of 6 mA for efficient power usage.
- With a small form factor of 4.3 mm length, 3.2 mm height, and 1.6 mm width, it suits space-constrained electronic designs.
- This component complies with RoHS standards and is manufactured in China.
Product Description
DiodesZetex AH1751-PG-A-A is a through hole Hall Effect latch sensor designed for high precision magnetic switching applications. Operating over a supply voltage range of 3.5 V to 20 V, this sensor leverages Hall Effect technology to provide reliable non-contact switching with bipolar magnetic fields. The SIP-3 package with 3 pins ensures ease of assembly in through hole PCB layouts.
The sensor features a bipolar magnetic type, requiring a magnetic field of one polarity to activate the output and the opposite polarity to deactivate it, making it ideal for latch switch applications in industrial and commercial electronic devices.
Designed to operate within a temperature range of -40°C to 125°C, it is capable of enduring demanding environmental conditions without performance degradation. Its low supply current rating of 6 mA enables low power consumption, critical for battery-powered and energy-efficient equipment.
The compact mechanical dimensions - 4.3 mm length, 3.2 mm height, and 1.6 mm width - allow integration into tight spaces in sensor modules or electronic assemblies.
The AH1751 series by DiodesZetex represents a trusted line of Hall Effect sensors widely employed in motion sensing, position sensing, and speed detection in sectors including automation, consumer electronics, and instrumentation.
This Hall Effect latch sensor features bipolar magnetic operation requiring opposite polarity fields for activation and deactivation. The device supports a supply voltage range from 3.5 volts minimum to 20 volts maximum for versatile use.
It is packaged in a compact SIP-3 through hole format with three pins for easy PCB insertion. Operating temperature spans from -40°C to 125°C ensuring reliability under harsh conditions. The sensor consumes a low supply current of 6 mA for efficient power usage.
With a small form factor of 4.3 mm length, 3.2 mm height, and 1.6 mm width, it suits space-constrained electronic designs. This component complies with RoHS standards and is manufactured in China. Explore our range of Hall Effect Sensors at EnvMart to find suitable solutions for your precise magnetic sensing requirements.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The sensor operates over a supply voltage range from 3.5 volts minimum to 20 volts maximum.
It operates within a temperature range of -40°C to 125°C, making it suitable for harsh environmental conditions.
This model features bipolar magnetic operation, requiring opposite polarity fields for activation and deactivation.
The sensor has a length of 4.3 mm, a height of 3.2 mm, and a width of 1.6 mm.
The SIP-3 package of this sensor includes three pins for easy PCB insertion.
It consumes a low supply current of 6 mA, which is efficient for power usage.
Yes, this component complies with RoHS standards.
It is widely employed in motion sensing, position sensing, and speed detection in various sectors including automation and consumer electronics.
The sensor is designed for through hole mounting, suitable for PCB layouts.
It is manufactured in China.
This model is part of the AH1751 series by DiodesZetex.
This component utilizes Hall Effect technology for non-contact switching applications.
