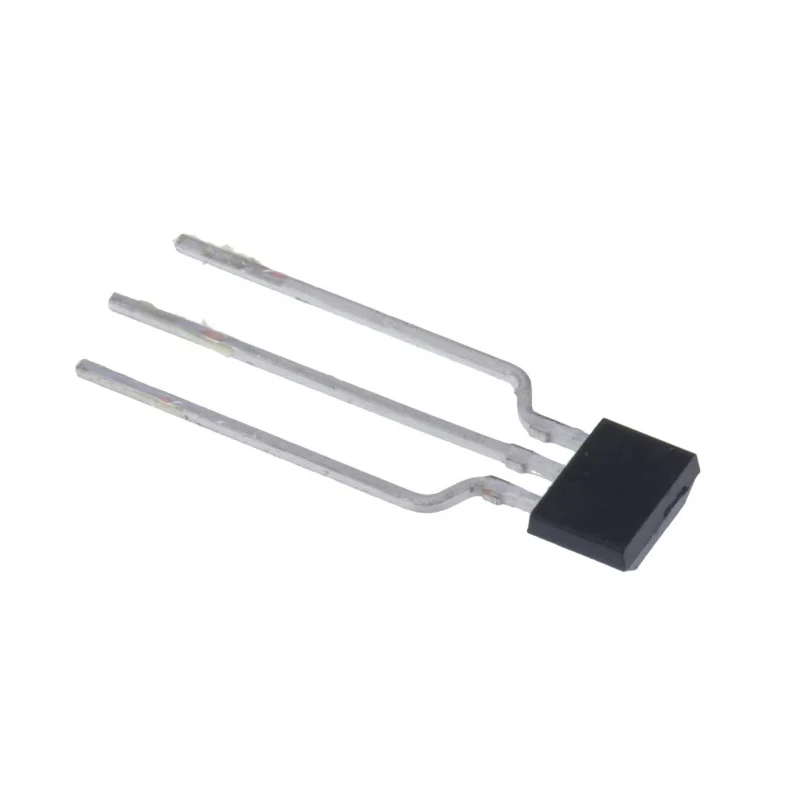

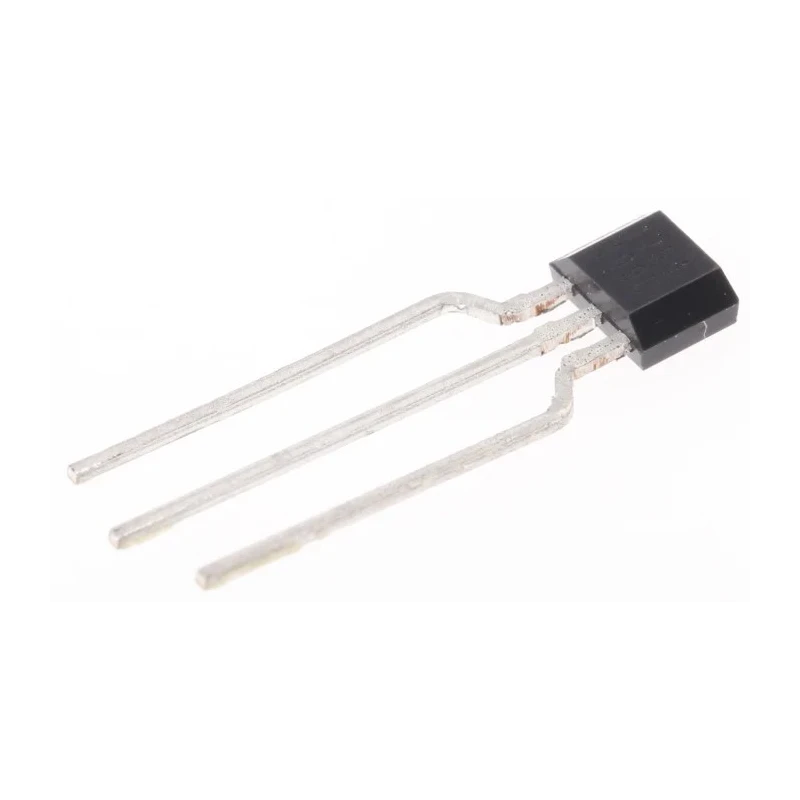

DiodesZetex Through Hole Hall Effect Latch Sensor 3.5 V to 20 V, SIP-3 Package, 3-Pin AH1751-PG-A-A
Specifications
| Country of Origin | China |
|---|---|
| Brand | DiodesZetex |
| Height | 3.2mm |
| Length | 4.3mm |
| Model | AH1751-PG-A-A |
| Technology | Hall Effect |
| Sensor Type | Hall Effect Sensors |
| Width | 1.6mm |
| Mount Type | Through Hole |
| Series | AH1751 |
| Maximum Operating Temperature | 125°C |
| Package Type | SIP-3 |
| Minimum Operating Temperature | -40°C |
| Standards/Approvals | RoHS |
| Pin Count | 3 |
| Maximum Supply Voltage | 20V |
| Minimum Supply Voltage | 3.5V |
| Supply Current | 6mA |
| Magnetic Type | Bipolar |
Key Features
- Operates within a voltage range of 3.5 V to 20 V.
- Features a bipolar magnetic type suitable for switching magnetic fields of opposite polarity.
- Compact SIP-3 package with a 3-pin configuration for reliable mounting.
- Wide operating temperature range from -40°C to 125°C for diverse environments.
- Supply current is low at 6 mA, ensuring energy efficiency.
- Hall Effect technology enables accurate magnetic field detection.
- Manufactured under RoHS compliance to meet environmental standards.
- Ideal for electronic components and motion sensor IC applications.
Product Description
DiodesZetex AH1751-PG-A-A Hall Effect Latch Sensor is a precision sensor IC designed for reliable magnetic field switching in industrial, electronic, and motion sensing applications. It utilizes the Hall Effect technology to provide non-contact switching functions, ensuring durability and long operational life.
Encased in a through hole SIP-3 package with a 3-pin layout, this sensor features bipolar magnetic type latching, requiring magnetic fields of opposite polarity to activate and deactivate the switch output. It operates over a wide voltage supply range from 3.5 V up to 20 V and tolerates ambient temperatures from -40°C to 125°C, making it suitable for harsh industrial environments.
The sensor consumes only 6 mA supply current, promoting energy-efficient designs without compromising performance. With precise dimensions of 4.3 mm length, 3.2 mm height, and 1.6 mm width, it fits compact circuit layouts in electronic assemblies and instrumentation.
Manufactured under RoHS standards, this product ensures environmentally friendly compliance without sacrificing functionality. It is well suited for integration in electronic component assemblies, power and sensor circuitry, motion sensing devices, and embedded systems requiring magnetic sensing.
Operates reliably at supply voltages between 3.5 V and 20 V. Bipolar magnetic sensing provides stable latching mechanism. Compact SIP-3 package with 3 pins for through hole mounting. Wide temperature tolerance from -40°C to 125°C.
Low supply current of 6 mA enhances power efficiency. Hall Effect technology delivers precise sensing accuracy. RoHS compliant for environmental safety. Small footprint aiding compact PCB designs. Manufactured in China with tested quality assurance.
This Hall Effect latch sensor by DiodesZetex is ideal for applications in electronics manufacturing, industrial automation, instrumentation, and HVAC systems. Its reliability in harsh conditions and compact size make it a prime choice for designers requiring robust magnetic switch solutions.
Explore EnvMart for a wide selection of industrial Hall Effect Sensors and sensor ICs from leading manufacturers for your technological and engineering needs.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
It operates within a voltage range of 3.5 V to 20 V.
The supply current is low at 6 mA, promoting energy efficiency.
It can operate in a wide temperature range from -40°C to 125°C, making it suitable for diverse environments.
It features a bipolar magnetic type, which requires magnetic fields of opposite polarity to switch the output.
It comes in a compact SIP-3 package with a 3-pin configuration for reliable mounting.
The dimensions are 4.3 mm in length, 3.2 mm in height, and 1.6 mm in width.
Yes, it is manufactured under RoHS compliance to meet environmental standards.
It is well suited for integration in electronic component assemblies, power and sensor circuitry, motion sensing devices, and embedded systems requiring magnetic sensing.
Hall Effect technology enables accurate magnetic field detection, ensuring reliable non-contact switching functions.
This model is designed for through hole mounting.
It is manufactured in China with tested quality assurance.
It belongs to the AH1751 series of Hall Effect sensors.
