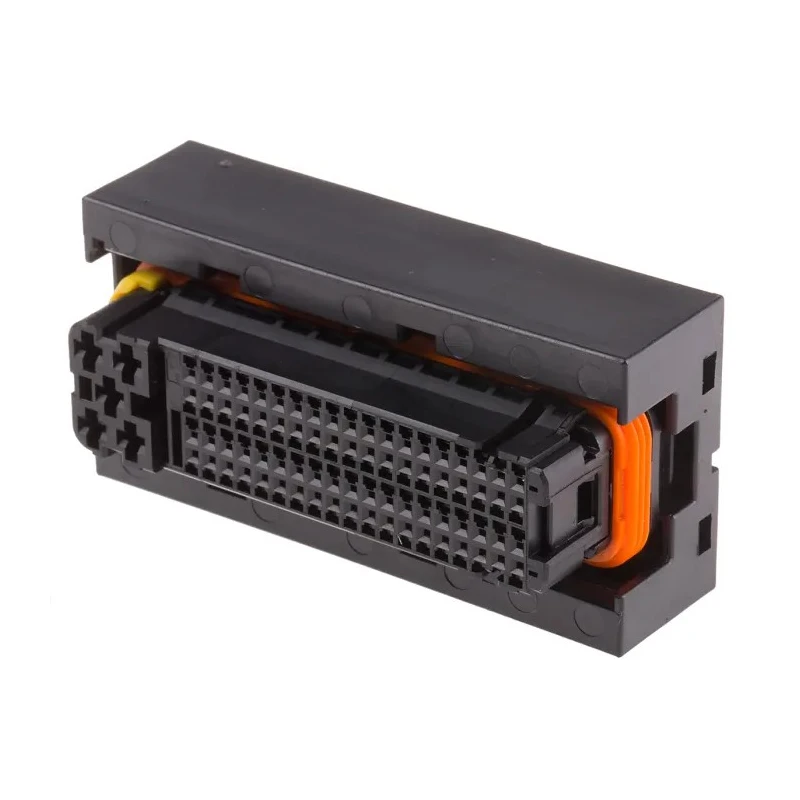

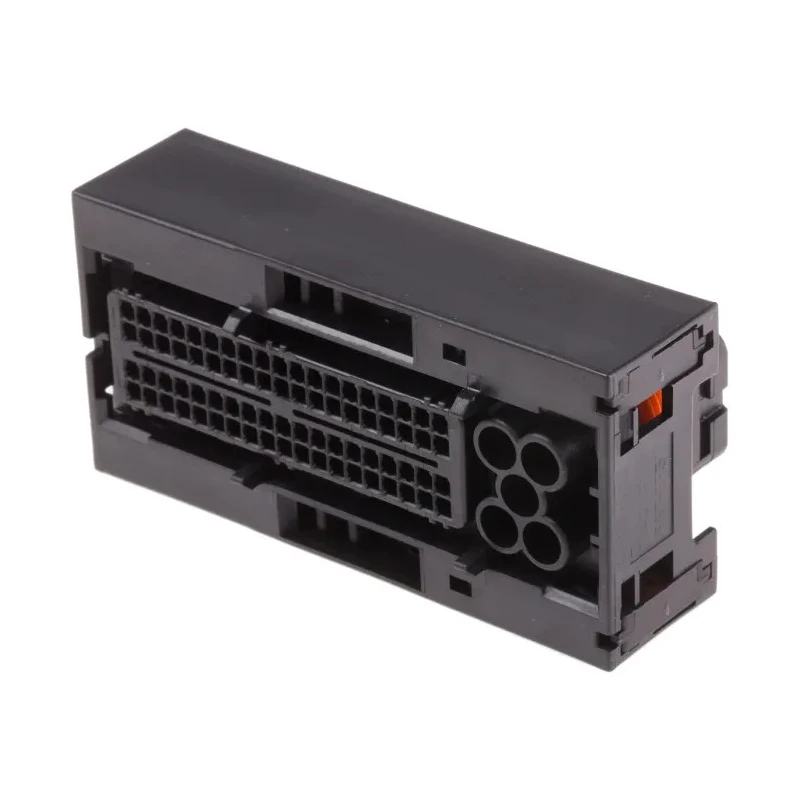

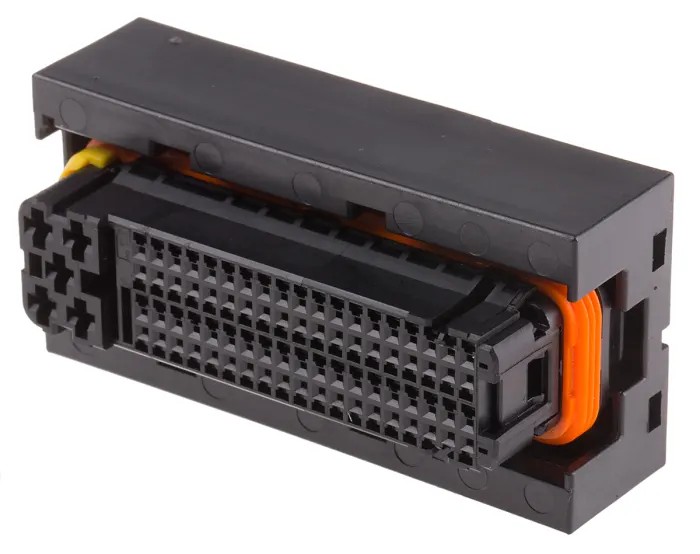

TE Connectivity Micro Quadlok System Automotive Connector Female Black Cable 81 Way Crimp Termination 1473244-1
Specifications
| Country of Origin | India |
|---|---|
| Brand | TE Connectivity |
| Colour | Black |
| Height | 37.4mm |
| Depth | 31mm |
| Width | 76.4mm |
| Gender | Female |
| Mount Type | Cable |
| Housing Material | Nylon |
| Series | Micro Quadlok System |
| Termination Type | Crimp |
| Maximum Operating Temperature | 120°C |
| Sub Type | Automotive Connector Housing |
| Minimum Operating Temperature | -40°C |
| Number of Rows | 4 |
| Number of Contacts | 81 |
| • Pitch | 2.54mm |
Key Features
- Features 81 contacts arranged in 4 rows to ensure high-density connectivity.
- Constructed with a durable nylon housing material suitable for demanding environments.
- Operates reliably within a temperature range of -40°C to 120°C.
- Utilizes a 2.54mm pitch Micro Quadlok System interconnection for compact, robust connections.
- Includes polarization and keying options to prevent mismating during assembly.
- Designed for crimp termination to provide secure wire connections.
- Equipped with stainless steel locking lances for strong primary terminal locking force.
- Available in a sealed version for waterproof connections and additional wire seals can be purchased separately.
Product Description
TE Connectivity 1473244-1 Micro Quadlok System Automotive Connector is a female connector with a black nylon housing designed for Cable mount type in automotive electrical systems. It supports 81 contacts arranged in 4 rows with crimp termination for secure wiring applications.
This connector operates in a wide temperature range from -40°C to 120°C, making it suitable for automotive environments exposed to extreme conditions. The Micro Quadlok System features a 2.54mm pitch, providing a high-density and compact design that meets stringent automotive functional requirements.
The connector includes integral primary terminal locking force provided by stainless steel locking lances, ensuring secure contact retention. Polarization and keying options help prevent mismating during assembly. Sealed versions are available to offer waterproof protection, with additional wire seals purchasable.
Designed specifically for demanding automotive applications, it is suitable for powertrain systems, safety and security electronics, driver information, convenience features, and body and chassis modules.
Features 81 contacts arranged in 4 rows to ensure high-density connectivity. Constructed with a durable nylon housing material suitable for demanding environments. Operates reliably within a temperature range of -40°C to 120°C.
Utilizes a 2.54mm pitch Micro Quadlok System interconnection for compact, robust connections. Includes polarization and keying options to prevent mismating during assembly. Designed for crimp termination to provide secure wire connections.
Equipped with stainless steel locking lances for strong primary terminal locking force. Available in a sealed version for waterproof connections and additional wire seals can be purchased separately. Ideal for use in automotive powertrain, safety, driver information, and body and chassis systems.
TE Connectivity is a trusted brand in automotive connectors and related components, providing innovative and reliable solutions. Explore more products in the Automotive Connectors category at EnvMart for comprehensive industrial and electronic applications.
