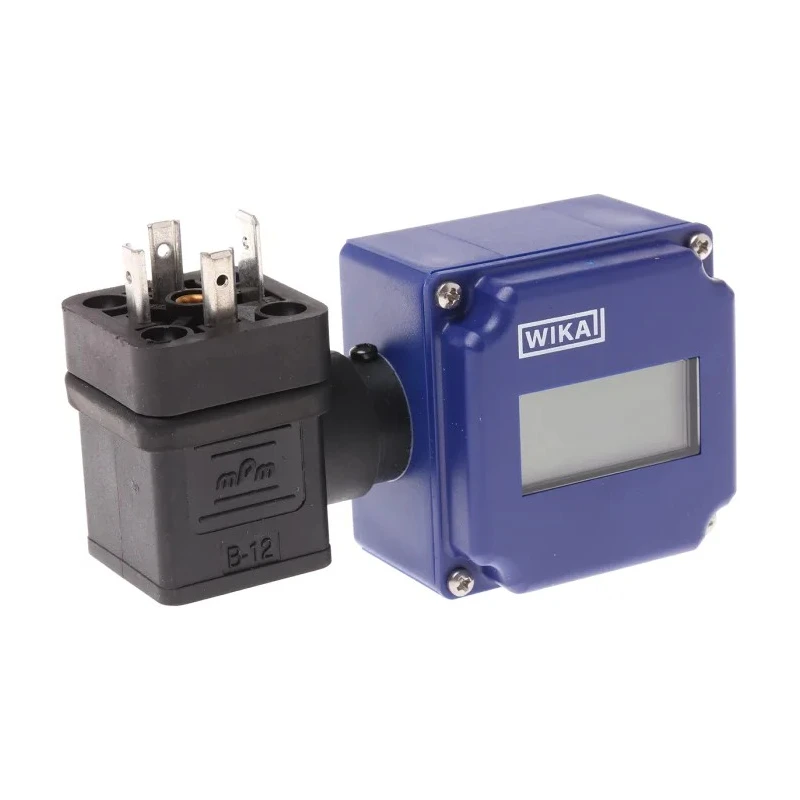

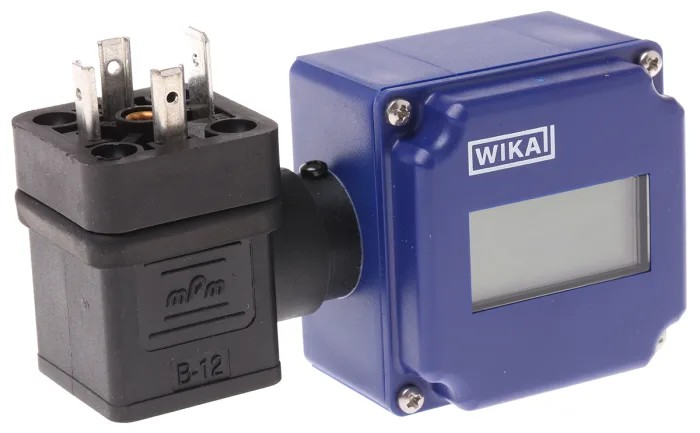

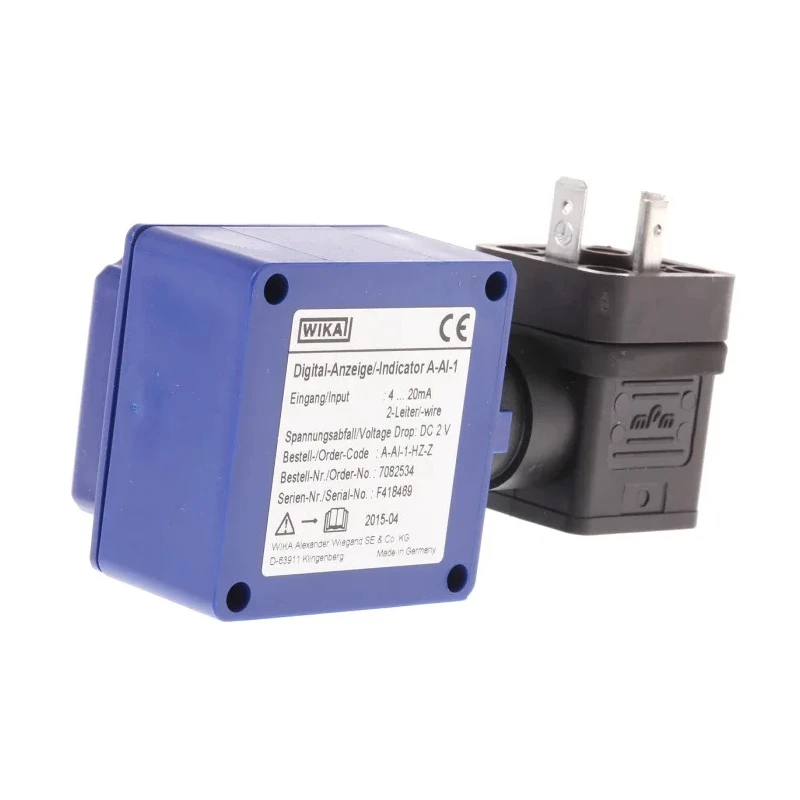

WIKA Hydraulic Pressure Indicator 4 to 20 mA, LCD Display, L Plug, Series AC 80.07 7082534

WIKA 7082534 Hydraulic Pressure Indicator is designed for accurate and reliable pressure measurement in hydraulic systems. Featuring a 4 to 20 mA input signal, this indicator provides a clear LCD readout, facilitating local monitoring of pressure transmitters in industrial and hydraulic instrumentation applications. The device operates using the current loop power supply, eliminating the need for additional power sources.

The housing is compact and robust, made from durable plastic that withstands typical industrial environments. Its universal programmability and simple installation allow for easy retrofit integration with existing hydraulic transmitters. Range settings can be effortlessly adjusted using flush-mounted keys located below the front cover, guided by an intuitive menu displayed on the LCD with clear characters.

To enhance operational accuracy, the indicator includes a damping facility that stabilizes displayed values during pressure peaks or pulsations. Key parameters programmed into the device remain preserved during power failures, ensuring uninterrupted performance. The integrated self-diagnosis circuit continuously monitors sensor integrity, providing error alerts in case of sensor ruptures.

Electrical connection is established through a standardized L plug in compliance with DIN EN 175301-803, ensuring compatibility and safety. The compact dimensions of approximately 1.9 inches in length and width, and 1.4 inches in depth, contribute to versatile mounting options within hydraulic systems.

This Hydraulic Pressure Indicator is ideal for applications in industrial machinery, hydraulic maintenance, fluid power systems, manufacturing, and process control. It supports efficient troubleshooting and precise system monitoring in laboratories, workshops, and production lines.

Provides local readout for hydraulic transmitters using 4 to 20 mA current loop. Universal programmability and easy mounting for retrofit applications. No external power supply required due to loop-powered design. Indicator range adjustable via flush-mounted keys under front cover.

Logically structured menu guides operator through programming steps on LCD. Damping facility ensures readable values despite pulsation or pressure peaks. Programmable parameters retained during power failure for operational consistency.

Integrated self-diagnosis circuit detects sensor ruptures and displays error messages. Sturdy and compact plastic case suitable for industrial use. Electrical connection features L plug complying with DIN EN 175301-803 standard.

Explore the full range of hydraulic instrumentation and pressure monitoring solutions at EnvMart.
