TE Connectivity Type III Series Female Crimp Terminal for M Series Connector Housings, 13A, Gold Plated Brass, 18-16 66101-1

Free Delivery in India | Lowest Global Shipping Charges

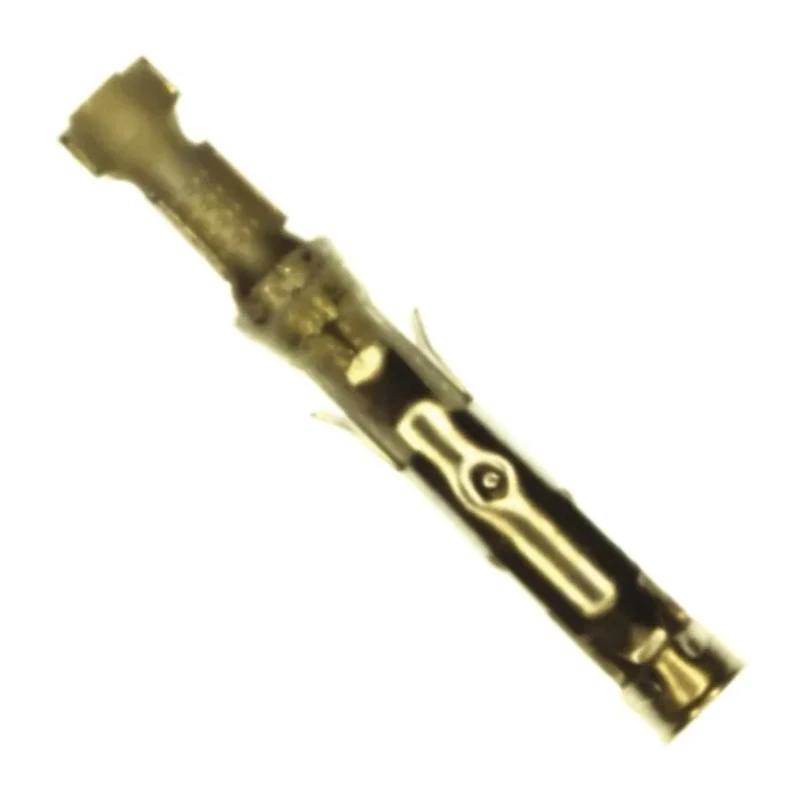

TE Connectivity Type III Series Female Crimp Terminal for M Series Connector Housings, 13A, Gold Plated Brass, 18-16 66101-1

Name: TE Connectivity Type III Series Female Crimp Terminal for M Series Connector Housings, 13A, Gold Plated Brass, 18-16 66101-1
Brand: TE Connectivity
SKU: 218708
Price: 5.25 USD
Availability: InStock



Category Crimp Terminal Brand TE Connectivity Condition New

Specifications

Country of Origin	India
Brand	TE Connectivity
Current	13A
Length	13.46mm
Model	66101-1
Gender	Female
Contact Material	Brass
Series	Type III
Termination Type	Crimp
Maximum Operating Temperature	150°C
Minimum Operating Temperature	-55°C
For Use With	M Series Connector Housings
Contact Plating	Gold
Minimum Wire Size mm²	0.8mm²
Maximum Wire Size mm²	1.4mm²
Minimum Wire Size AWG	18AWG
Maximum Wire Size AWG	16AWG

Key Features

The crimp terminal is made of brass with gold plating for enhanced conductivity and corrosion resistance.
Rated for a maximum current of 13 amperes suitable for industrial and electronic applications.
Operates reliably between temperatures of -55°C to 150°C.
The contact length measures 13.46 mm for secure and stable connections.
Termination type is crimp ensuring efficient wire retention and electrical contact.
Compatible specifically with M Series Connector Housings used in complex signal and power systems.
No formal product approvals or certifications specified, appropriate for general industrial usage.

Product Description

TE Connectivity 66101-1 Type III Series Female Crimp Terminal is engineered for precise and reliable connections in electrical and electronic assemblies. This crimp terminal is designed to fit M Series Connector Housings and accommodate wire sizes between 18 AWG (0.8mm²) minimum and 16 AWG (1.4mm²) maximum. Gold plating on a brass contact enhances conductivity and corrosion resistance, making it ideal for critical signal and power applications requiring low contact resistance.

The terminal supports a maximum continuous current of 13 amperes, suitable for a wide range of industrial and laboratory electronic equipment. It operates efficiently within a temperature range from -55°C to 150°C, ensuring durability in harsh operational environments.

The crimp style termination provides a secure mechanical bond for wire retention and ensures stable electrical contact. The contact length of 13.46 mm is optimized for reliable insertion and mating within connector housings.

TE Connectivity's Multimate Series II and III uninsulated signal contacts, including this Type III female terminal, are renowned for high normal force retention achieved by stainless steel spring elements inside the connector housing, to maintain connection integrity under vibration and thermal cycling.

The crimp terminal's brass contact material and gold plating deliver excellent corrosion resistance and electrical performance. Compatible with rectangular M Series and CPC connector housings widely used in industrial signal and power applications.

The design prevents damage due to misalignment by a closed-ended mating entry. Suitable for use in electronics manufacturing, industrial control panels, instrumentation, and automotive wiring harness constructions.

This product is sold in bulk and supplied in bags, conveniently packaged for machine insertion, enhancing production process efficiency. It is a high-quality new component made in India, without formal certification approvals but meeting industry standards for quality and performance.

Explore a broad range of TE Connectivity Crimp Terminals and connectors at EnvMart for all your electronic component needs.
