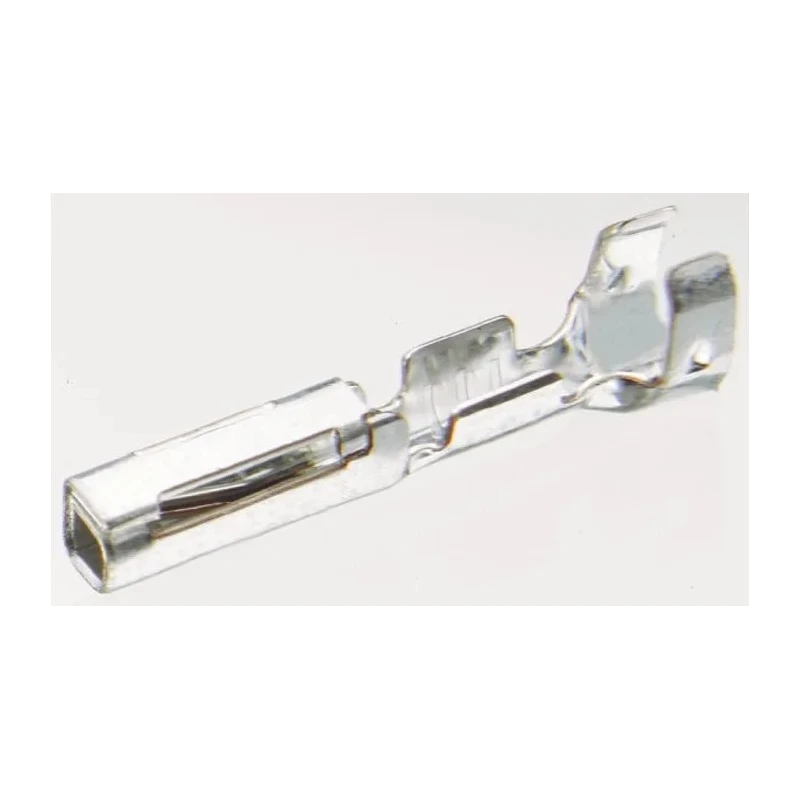

TE Connectivity MULTILOCK 070 Series Female Crimp Terminal 4A Current, 20 AWG to 16 AWG, Gold Plating 173631-2
Specifications
| Country of Origin | India |
|---|---|
| Brand | TE Connectivity |
| Operating Temperature | -30 - 105 °C |
| Current | 4A |
| Length | 16mm |
| Model | 173631-2 |
| Gender | Female |
| Contact Material | Brass |
| Current Rating | 15A |
| Series | MULTILOCK 070 |
| Termination Type | Crimp |
| Maximum Operating Temperature | 150°C |
| Minimum Operating Temperature | -30°C |
| For Use With | MULTILOCK 070 Connector Housing |
| Contact Plating | Gold |
| Minimum Wire Size mm² | 0.5mm² |
| Maximum Wire Size mm² | 1.25mm² |
| Minimum Wire Size AWG | 20AWG |
| Maximum Wire Size AWG | 16AWG |
| Low level resistance | 10 mΩ max (initial) |
| Overall resistance | 20 mΩ max (final) |
Key Features
- Gold-plated brass contact material ensures reliable electrical conductivity.
- Designed for use with MULTILOCK 070 Connector Housing for secure connections.
- Suitable for operating temperatures from -30°C to 150°C.
- Crimp termination type with snap-in fixing for ease of assembly.
- Contact length measures 16mm for compact, high-density wiring.
- Supports current rating up to 15A in 070 series applications.
- Low contact resistance maintains signal integrity.
- Ideal for automotive and general industrial automation wire-to-wire and wire-to-board applications.
Product Description
TE Connectivity 173631-2 MULTILOCK 070 Series Female Crimp Terminal provides a robust and reliable electrical connection solution designed for high-density wiring in automotive and industrial automation applications. Rated for 4A continuous current with the ability to handle wire sizes ranging from 20 AWG to 16 AWG, this terminal ensures secure and efficient cable connections.
The contact terminals are manufactured from high-quality brass with gold plating to offer excellent conductivity and corrosion resistance. The crimp-type termination and snap-in fixing design enable fast assembly into MULTILOCK 070 connector housings, facilitating wire-to-wire and wire-to-board configurations.
Operating reliably within a temperature range from -30°C up to 150°C, these terminals are suited for demanding environments. With a contact length of 16mm and a low-level resistance of 10 mΩ max (initial), they maintain signal integrity even under high current load conditions. The overall resistance specification ensures durability and long-term performance.
These connectors support a withstand voltage of 1 kVac for one minute, providing safety and reliability in electrical systems. The MULTILOCK series is widely used across automotive, manufacturing, and industrial automation sectors for I/O wiring solutions that require compact, robust, and high-performance contact terminals.
Gold-plated brass contacts provide excellent electrical conductivity. Compatible with MULTILOCK 070 connector housings for versatile use. Crimp termination and snap-in fixing facilitate quick, reliable assembly. Designed for wire sizes 20 AWG minimum and 16 AWG maximum.
Operating temperature range from -30°C to 150°C ensures suitability for harsh conditions. Rated for continuous current of 4A and capable of supporting up to 15A in some conditions. Low initial contact resistance maximizes electrical efficiency.
Ideal for automotive, industrial automation, and manufacturing wire connections.
For professional electrical and electronic system builders requiring durable and precise Crimp Terminals, this TE Connectivity MULTILOCK terminal offers an industrial-grade solution to meet stringent technical and environmental standards.
Explore the full range of crimp contacts and related components in the Electronics & Electricals category at EnvMart.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
This crimp terminal is rated for a continuous current of 4A, with the capability to support up to 15A in certain conditions.
It is designed for wire sizes ranging from 20 AWG to 16 AWG, which corresponds to a minimum of 0.5 mm² and a maximum of 1.25 mm².
The operating temperature range for this terminal is from -30°C to 150°C, making it suitable for harsh environments.
The contacts are made from brass and feature gold plating, which ensures reliable electrical conductivity and corrosion resistance.
The contact length of this terminal measures 16mm, allowing for compact and high-density wiring configurations.
This terminal uses a crimp termination type with a snap-in fixing design, facilitating quick and reliable assembly into connector housings.
Yes, it is designed for use with MULTILOCK 070 connector housings, ensuring secure connections in various applications.
The initial low-level resistance is 10 mΩ max, which helps maintain signal integrity under high current loads.
The overall resistance specification is 20 mΩ max (final), ensuring durability and long-term performance in electrical systems.
This terminal is ideal for automotive and general industrial automation wire-to-wire and wire-to-board applications.
The country of origin for this crimp terminal is India.
This terminal supports a withstand voltage of 1 kVac for one minute, providing safety and reliability in electrical systems.
