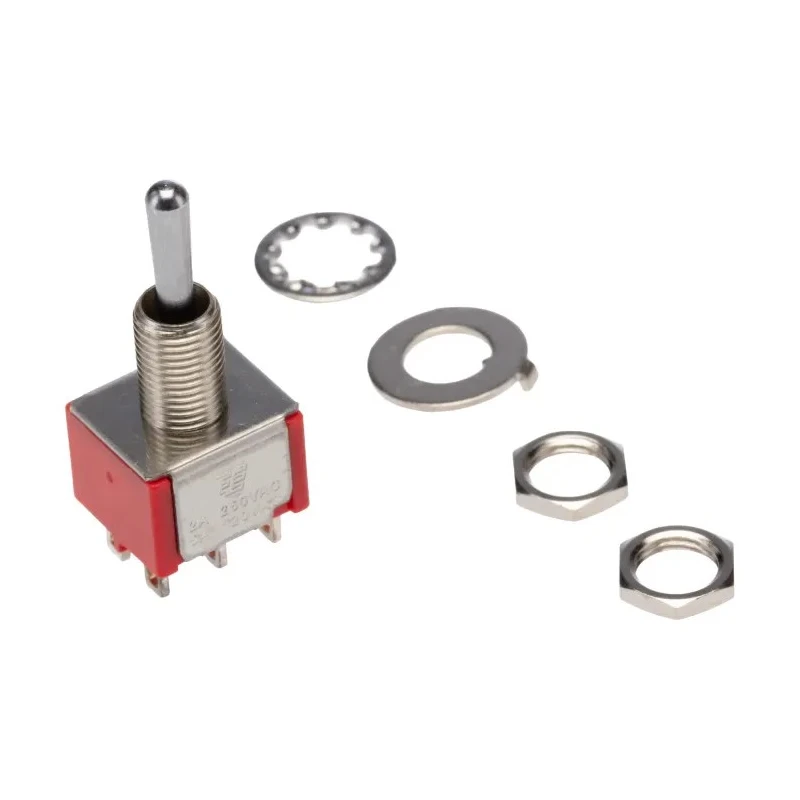

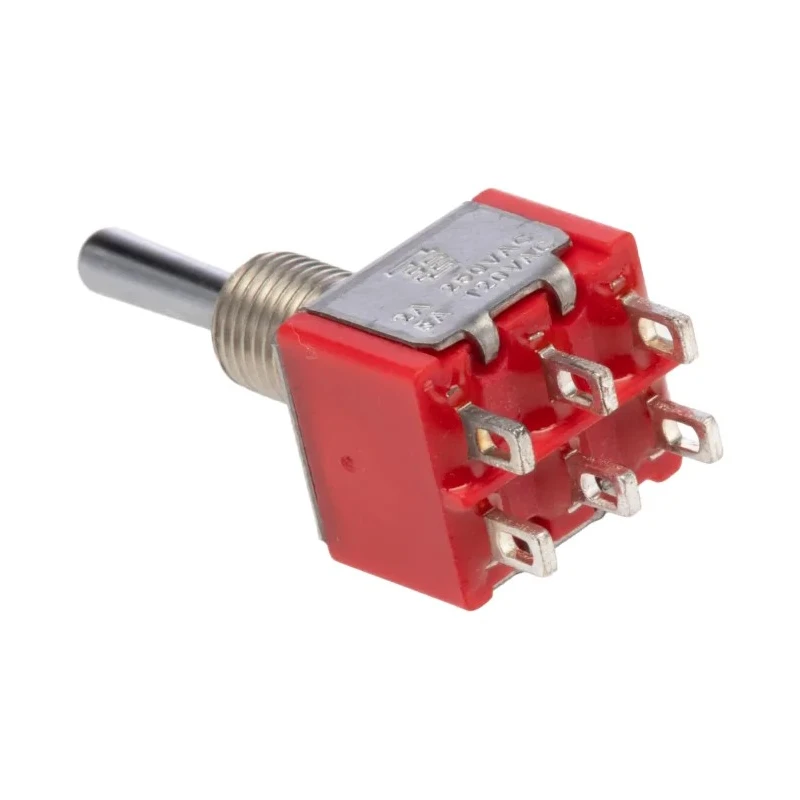

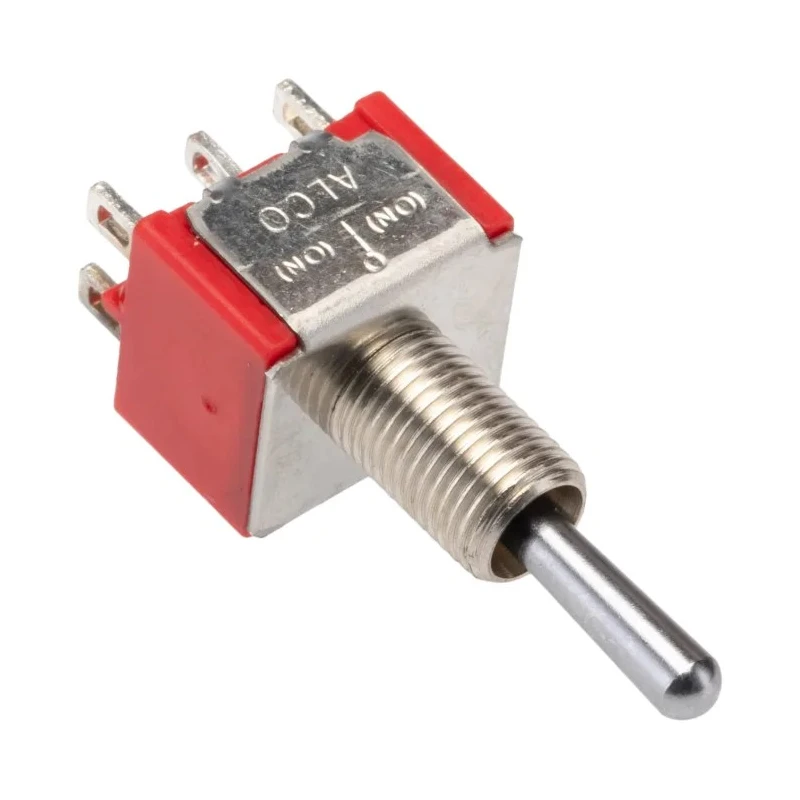

TE Connectivity Panel Mount Toggle Switch On-Off-On, SPDT, Through Hole Terminal, 28V dc, 125V ac, Gemini A 1-1825139-8

Free Delivery in India | Lowest Global Shipping Charges

TE Connectivity Panel Mount Toggle Switch On-Off-On, SPDT, Through Hole Terminal, 28V dc, 125V ac, Gemini A 1-1825139-8

Name: TE Connectivity Panel Mount Toggle Switch On-Off-On, SPDT, Through Hole Terminal, 28V dc, 125V ac, Gemini A 1-1825139-8
Brand: TE Connectivity
SKU: 218255
Price: 7.75 USD
Availability: InStock



Category Toggle Switch Brand TE Connectivity Condition New

Specifications

Country of Origin	India
Brand	TE Connectivity
Height	0.35in
Length	0.5in
Width	0.45in
Mount Type	Panel
Series	Gemini A
Maximum Operating Temperature	85°C
Contact Configuration	SPDT
Switch Configuration	(On)-Off-(On)
Minimum Operating Temperature	-30°C
Panel Cutout Size	6.35 mm
Terminal type	Through Hole
Standards/Approvals	RoHS
Switch Operation	On-Off-On
Actuator Length	10.41mm
Contact DC Voltage	28V dc
Switch Contact Current	5A
Contact AC Voltage	125V ac
Actuator Material	Phenolic

Key Features

Designed for panel mounting with a sturdy phenolic actuator.
Operates at 28 V dc and 125 V ac contact voltages.
Switch contact current rated at 5 A for moderate loads.
Through hole terminal type for secure PCB connections.
Mechanical configuration is On-Off-On with break before make.
Compact dimensions with 10.41 mm actuator length and 6.35 mm panel cutout.
Rated for operation from -30°C to 85°C environmental temperatures.
Stainless steel frame construction with brass tin plated solder support.

Product Description

TE Connectivity 1-1825139-8 Panel Mount Toggle Switch On-Off-On, SPDT, rated for 28 V dc and 125 V ac, manufactured as part of the Gemini A Series, provides robust switching performance suitable for electrical and automation applications.

This toggle switch is configured as a single pole double throw (SPDT) with an On-Off-On switching function and break before make contact timing, ensuring reliable circuit control and isolation. It features a phenolic actuator of 10.41 mm length, perfectly sized for panel mount installation requiring a 6.35 mm cutout.

The switch terminals utilize through hole mounting, facilitating secure PCB integration in custom designs. With a current rating of 5 A, this switch handles moderate electrical loads efficiently while complying with RoHS standards.

Constructed with a stainless steel frame and brass tin plated solder supports, this toggle switch delivers enhanced mechanical strength and corrosion resistance, ideal for industrial environments. Epoxy sealed terminals provide additional protection against contaminants, extending operational lifetime.

Ratings cover a wide operating temperature range from -30°C to +85°C, making this component suitable for harsh ambient conditions in industrial, laboratory, and automation systems. Its compact form factor with a height of 0.35 inches, length 0.5 inches, and width 0.45 inches supports versatile panel configurations.

This product is essential for building reliable control panels, instrumentation devices, and electronic assemblies demanding consistent and durable switch operation. Panel mount toggle switch with On-Off-On SPDT configuration.

Operating voltages: 28 V dc and 125 V ac. Current rating 5 A with epoxy sealed terminals. Phenolic actuator with stainless steel frame and brass supports. Temperature range from -30°C to 85°C. Compact design suitable for industrial and automation uses.
